Запчасти Case IH 6130 (90.105.BH[03]) - SIDE PANEL, BODY, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

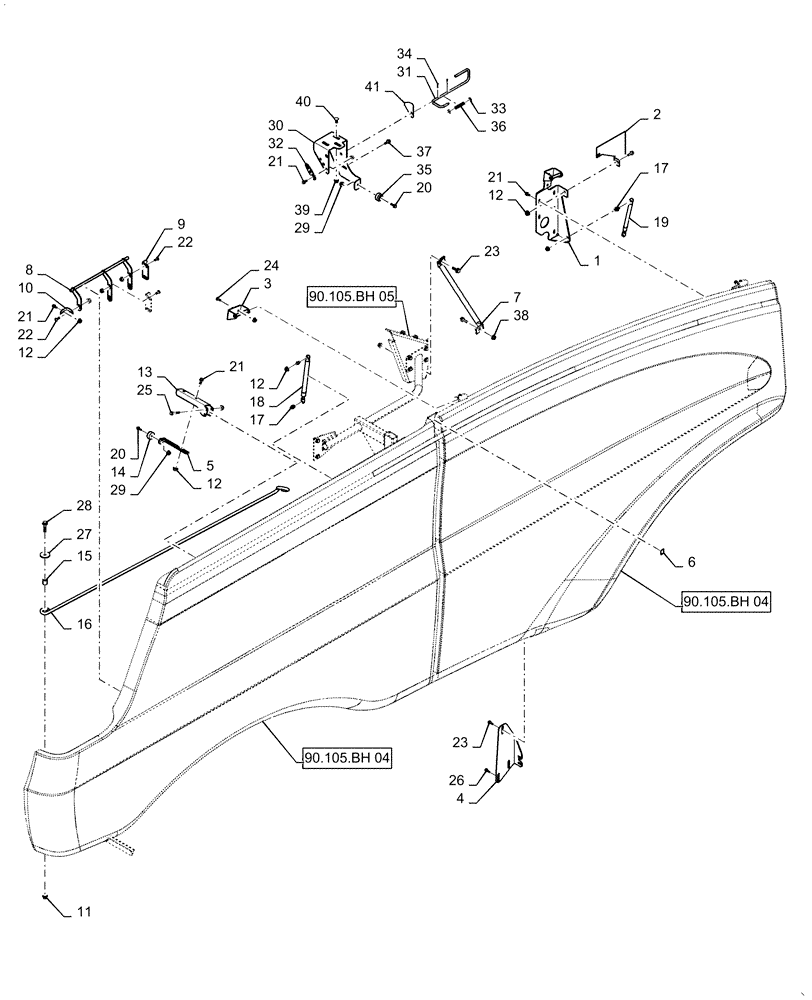

Схема запчастей Case IH 6130 - (90.105.BH[03]) - SIDE PANEL, BODY, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
27
24
12
11
90.105.bh 04
23
37
4
12
31
5
34
36
28
13
38
90.105.bh 04
41
40
3
2
12
21
29
16
33
21
8
20
17
23
14
29
15
10
26
32
39
35
30
22
20
22
12
6
9
17
1
21
19
21
90.105.bh 05
18
25
7

Артикул

Название

Примечание

Количество

1

87663834

BRACKET

Hinge, Front, RH

1шт.

2

87666897

PLATE

Cover, RH

1шт.

3

87624895

BRACKET

Rear Hinge

1шт.

4

87484220

BRACKET

Front Panel Latch, RH

1шт.

5

87485148

BRACKET

Bumper, Rear, RH

1шт.

6

86984222

PAD

Adhesive Back, Foam

2шт.

7

87680949

SUPPORT

Tube

1шт.

8

87709512

BRACKET

Latch, Rear, RH

1шт.

9

87709508

BRACKET

Latch, Rear, RH

2шт.

10

87709506

BRACKET

Latch, Rear, RH

1шт.

11

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

31шт.

13

87485146

BRACKET

Bumper, Rear, RH

1шт.

14

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

Rubber

1шт.

15

224368A1

SPACER,0.546" ID x 0.840" OD x 0.984" OAL

.546" ID x .640" OD x 1" L

1шт.

16

87654944

ROD

Door Keeper, RH

1шт.

17

86634307

STUD

Gas Spring Mount

2шт.

18

87757843

GAS STRUT

Spring, Center, RH

1шт.

19

87688426

GAS STRUT

Spring, Front, RH

1шт.

20

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

21

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

17шт.

22

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

5шт.

23

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

24

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

2шт.

25

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

2шт.

26

87030775

BOLT,M8 x 38.1mm, Cl 10.9

1шт.

27

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

50.8mm OD x 13.5mm ID x 5.52mm L

1шт.

28

87670764

BOLT,M12 x 61.8mm, Cl 10.9

1шт.

29

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

30

47376576

BRACKET

Transport Lock, Front, RH

1шт.

31

87470711

ROD

Transport Lock Latch, Front, RH

1шт.

32

87676999

BRACKET

Strap, Latch Support

1шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

34

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

35

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

Rubber

1шт.

36

192216A1

SPRING

Compression

1шт.

37

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

1шт.

38

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

39

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

40

87682393

CARRIAGE BOLT,M10 x 1.5 x 35mm, Cl 10.9

Carriage, M10 x 35mm, 10.9

3шт.

41

87479418

DECAL

Trim Panel Lock

1шт.

Выбрано товаров: 41
