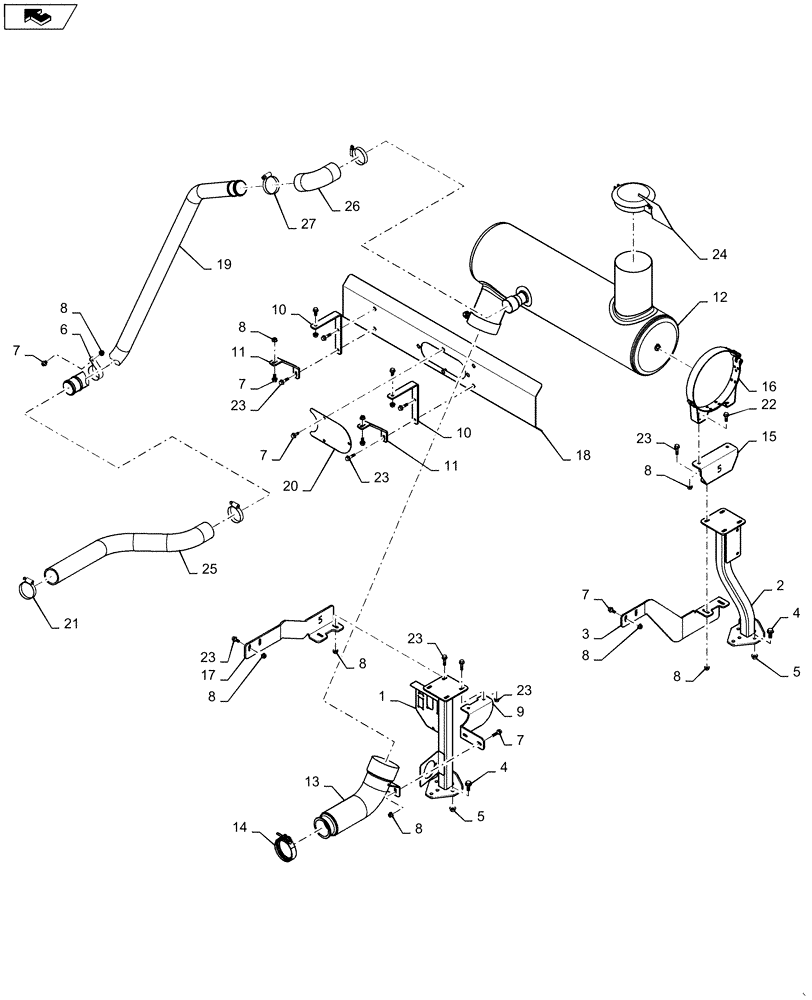

Запчасти Case IH 6130 (10.254.AI[01]) - EXHAUST ASSEMBLY, 5130 T2 (10) - ENGINE

2

84354600

SUPPORT

Muffler Front

1шт.

3

84353663

SUPPORT

Muffler Front

1шт.

4

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

6шт.

5

86050279

FLANGE NUT,M10 x 1.5, Cl 10

6шт.

6

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

7

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

12шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

19шт.

9

84355503

SUPPORT

Muffler Rear

1шт.

10

84383393

BRACKET

Muffler Shield Upper

2шт.

11

84383389

BRACKET

Muffler Shield Lower

2шт.

12

84404758

MUFFLER,Aspirated

1шт.

13

84382333

TUBE

1шт.

14

84460193

CLAMP,81mm - 84mm

1шт.

15

84383403

SUPPORT

Muffler Front

1шт.

16

87301605

CLAMP,228.6mm ID

1шт.

17

84383409

SUPPORT

1шт.

18

84383401

SHIELD

1шт.

19

84403391

AIR INTAKE TUBE

1шт.

20

84383411

COVER

1шт.

21

86625019

HOSE CLAMP,44mm - 67mm

3шт.

22

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

23

87030775

BOLT,M8 x 38.1mm, Cl 10.9

12шт.

24

84594139

COVER,5" ID, High Temperature

Exhaust Cap

1шт.

25

84396101

HOSE

Aspirator

1шт.

26

84378692

RADIATOR HOSE

1шт.

27

86625019

HOSE CLAMP,44mm - 67mm

1шт.
