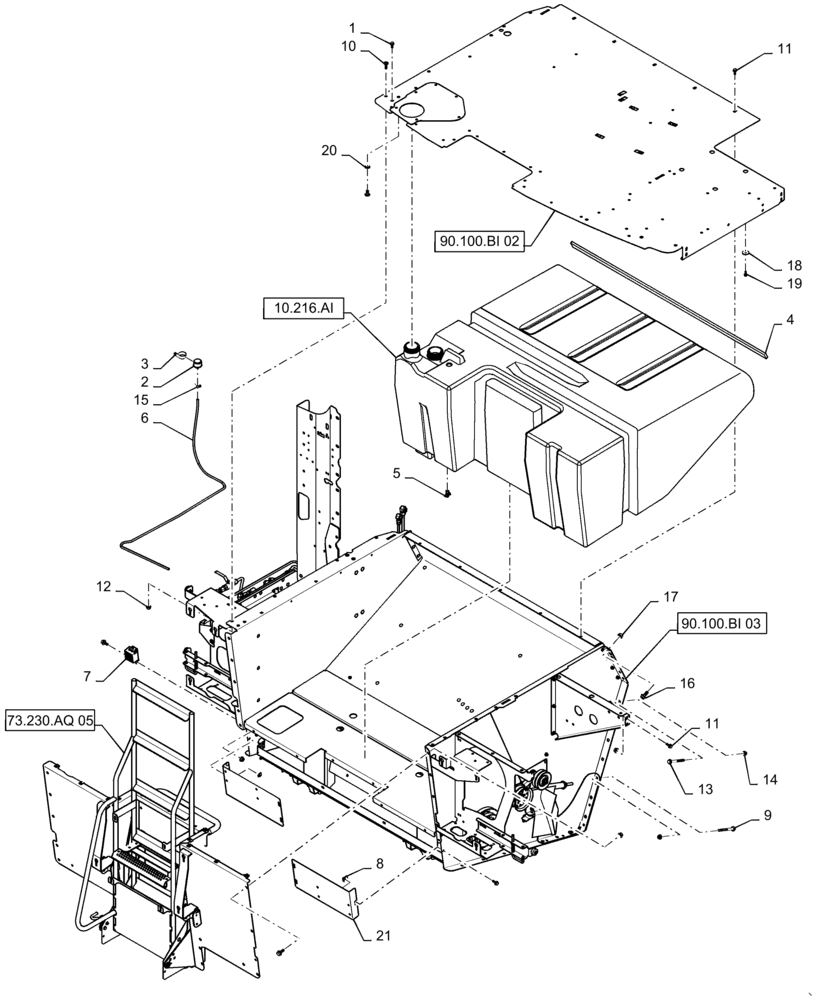

Запчасти Case IH 6130 (90.100.BI[01]) - HOOD ASSY, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

2шт.

2

86999949

FUEL FILTER

1шт.

3

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

1шт.

4

87727299

FOAM

1шт.

5

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Fuel Tank Drain

1шт.

6

87713111

TUBE

1шт.

7

L112318

ALARM

Backup Alarm

1шт.

8

86508354

PUSH-ON NUT,M8 x 1.25

6шт.

9

87742362

BOLT,M12 x 130mm, Cl 10.9

4шт.

10

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

28шт.

11

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

35шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

42шт.

13

87698848

FLANGE BOLT,M12 x 120mm, Cl 10.9

10шт.

14

86512497

FLANGE NUT,M12 x 1.75, Cl 10

14шт.

15

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

16

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

10шт.

17

86050279

FLANGE NUT,M10 x 1.5, Cl 10

12шт.

18

495-81122

WASHER,.344" x 1 1/2" x .120"

4шт.

19

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

20

87698854

NUT,M10

2шт.

21

87593881

RUNNER

Rear Hood Access Panel

2шт.
