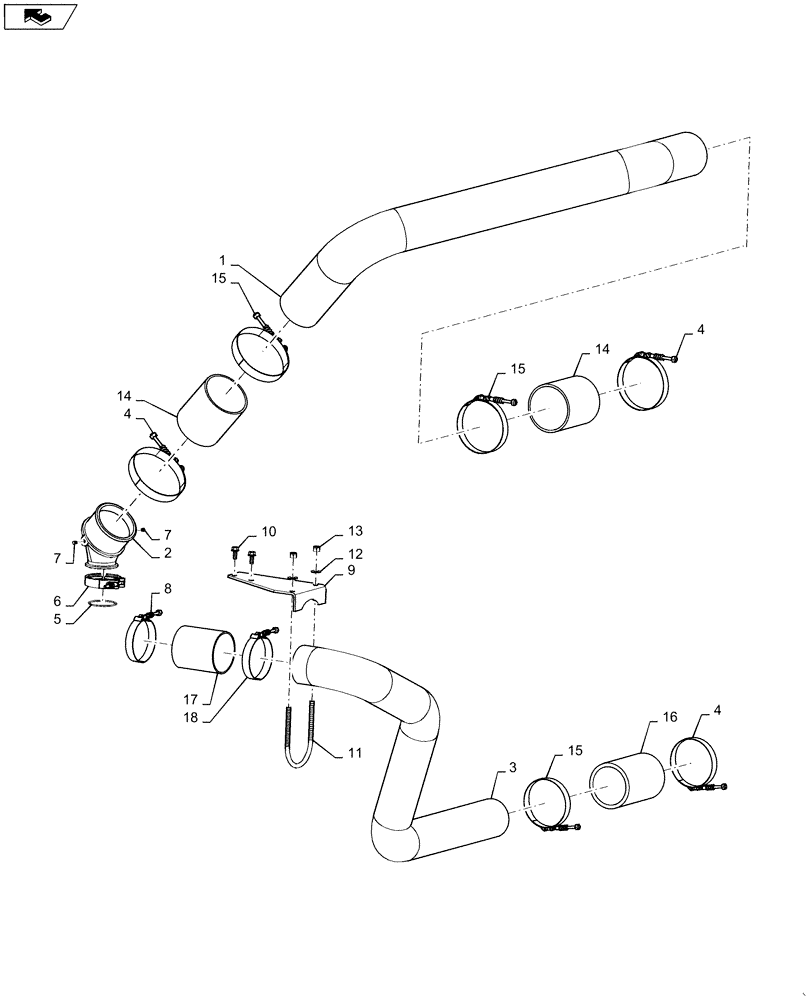

Запчасти Case IH 6130 (10.250.AJ[02]) - CHARGE AIR COOLER INTAKE TUBES, 61/7130 T2 (10) - ENGINE

1

84255630

TUBE

CAC Hot Side

1шт.

2

87301923

ELBOW

Air Transfer

1шт.

3

84291007

SCRAPER

CAC Cold Side

1шт.

4

87420676

HOSE CLAMP,108mm - 115.8mm

3шт.

5

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

6

J069053

CLAMP,66.54mm ID

1шт.

6

87524288

CLAMP,77mm

1шт.

7

217-84

PLUG,Hex Hd, 1/8"-27, Brass

2шт.

8

86976661

HOSE CLAMP,95.25mm - 104mm

1шт.

9

87572334

BRACKET

1шт.

10

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

11

87028029

U-BOLT

1шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

13

9637692

NUT,3/8"-16, Gr B

2шт.

14

87402761

HOSE

Hot Side

2шт.

15

87420676

HOSE CLAMP,108mm - 115.8mm

T-Bolt, Spring Loaded

3шт.

16

87402762

HOSE

Cold Side

1шт.

17

87106404

HOSE,88.90mm ID x 110mm

Cold Side

1шт.

18

86976661

HOSE CLAMP,95.25mm - 104mm

1шт.
