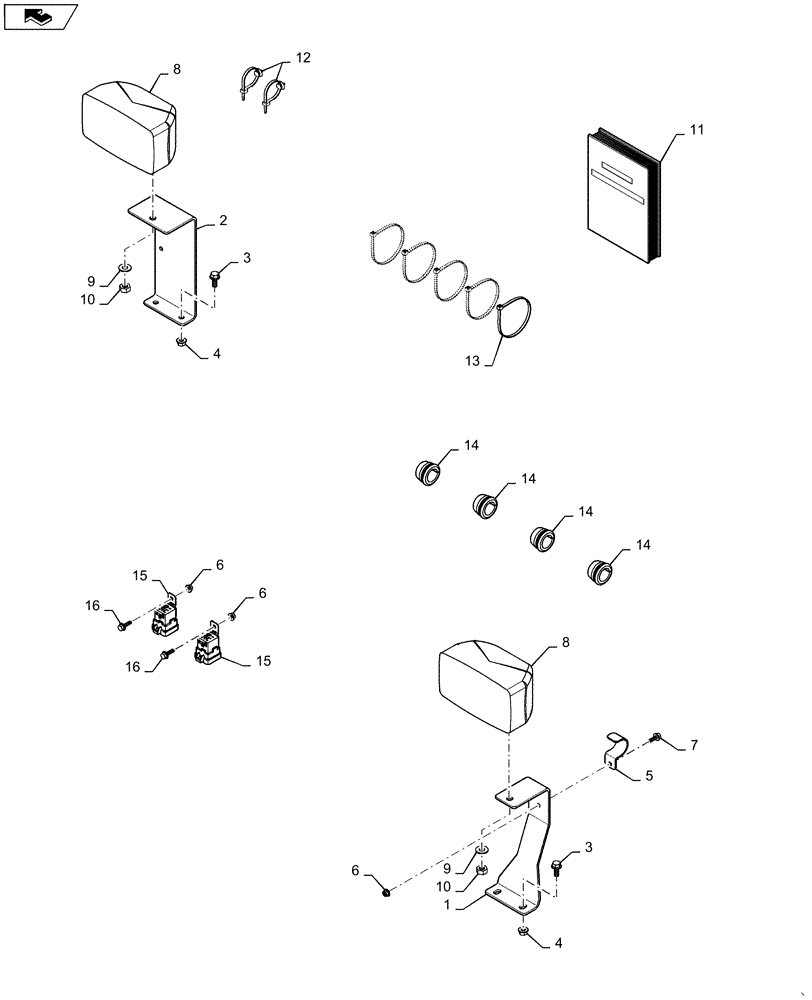

Запчасти Case IH 6130 (88.100.AA[01]) - DIA KIT, ADDITIONAL PRODUCTS - FOLDING EU LIGHT (88) - ACCESSORIES

1

47429639

BRACKET

Light Support

1шт.

2

47429639

BRACKET

Light Support

1шт.

3

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

4

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

5

47405801

BRACKET

1шт.

6

86050300

FLANGE NUT,M6 x 1.0, Cl 10

3шт.

7

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

Flange

1шт.

8

86613046

LAMP

2шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

10

100016

NUT,M10 x 1.5, Cl 8

2шт.

11

47430509

OPERATOR MANUAL

Folding Corn Headlight Instruction

1шт.

12

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

Tie

2шт.

13

86566990

CABLE TIE,292mm OAL x 4.8mm W

20шт.

14

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

4шт.

15

86508603

RELAY,12V

Sealed Skirt w/Bracket

2шт.

16

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.
