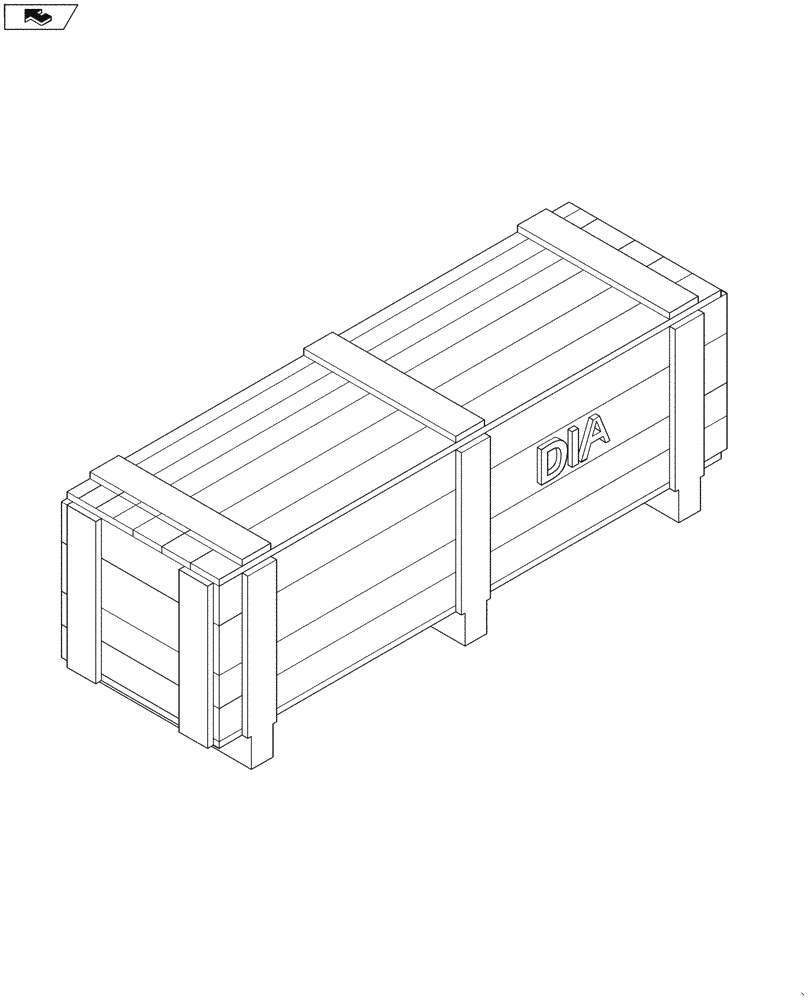

Запчасти Case IH 6130 (88.100.80[02]) - KIT, DIA, VERTICAL DISCHARGE, UNLOADER (88) - ACCESSORIES

1

84158659

DIA KIT, HARVESTER

Vertical Discharge, Unloader, Incl 2 - 15

1шт.

2

84064911

CANVAS,1288.3mm W x 1396.9mm L

1шт.

3

86610718

WIRE HARNESS

Unloader Tube Signal Plate Light, Serial Range: -Y9G002517

1шт.

4

87479791

WIRE HARNESS

Unloader Tube Signal Plate Light MY 2010, Start Serial: Y9G0026001

1шт.

5

84452652

SUPPORT

Plate

1шт.

6

84429842

LAMP

1шт.

7

84441358

DECAL

Reflective

3шт.

8

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

2шт.

9

86566989

CABLE TIE,208mm L

2шт.

10

325911

RIVET,Pop, 4.75mm OD x 7.4mm L

2шт.

11

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

12

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

10шт.

13

86629542

NUT,M8 x 1.25, Cl 8.8

10шт.

14

9706690

NUT,M8 x 1.25, Cl 8

8шт.

15

43440

LOCK NUT,M5 x .8, Cl 8

2шт.

16

140014

WASHER,M5 x 10mm OD x 1mm Thk

2шт.

17

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

18шт.
