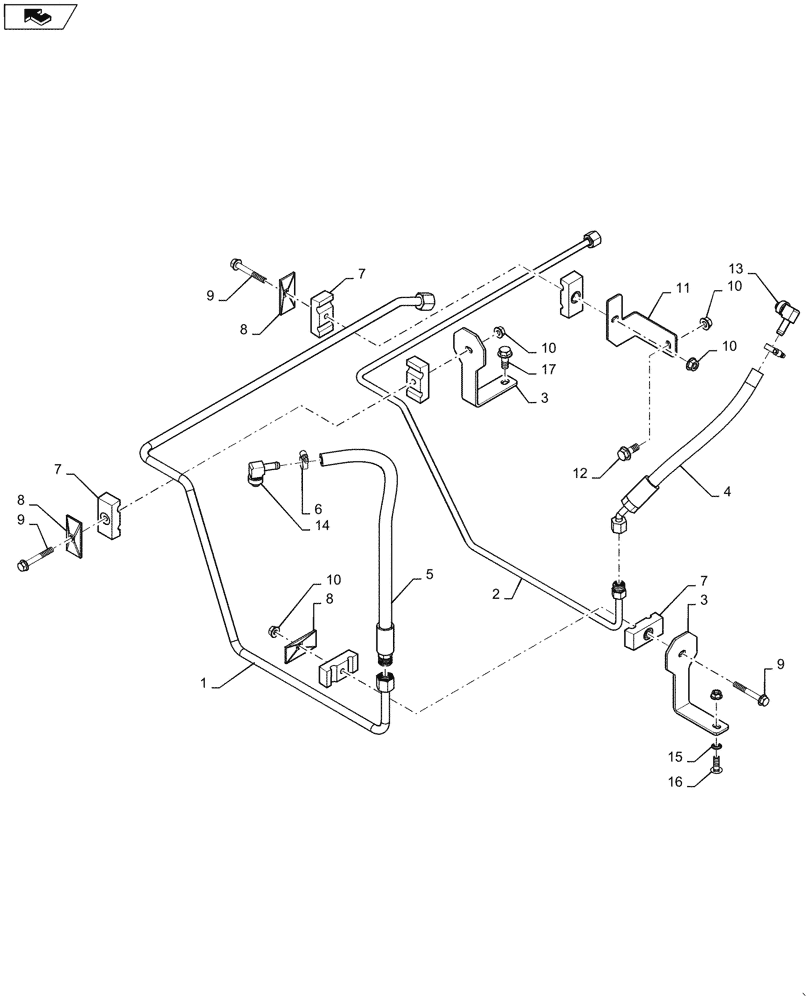

Запчасти Case IH 6130 (10.216.BA) - FUEL LINE, ENGINE (10) - ENGINE

1

84423436

FUEL TUBE

Fuel Supply

1шт.

2

84423433

FUEL TUBE

Fuel Return

1шт.

3

84513921

BRACKET

Fuel Line Support

2шт.

4

84498846

HOSE ASSY.,9.53mm ID x 405mm L, SAE 100R6

Fuel Return

1шт.

5

84255138

FUEL HOSE,9.53mm ID x 530mm L, SAE 100R6

Fuel Supply

1шт.

6

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

2шт.

7

87105732

CLAMP

Tube, 12.7mm x 9.52.mm

3шт.

8

87000230

PLATE

Tube Clamp

3шт.

9

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

3шт.

10

86507066

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

11

84255184

BRACKET

Fuel Line Support

1шт.

12

87698833

BOLT,M8 x 33.1mm, Cl 10.9

1шт.

13

87400460

90 ELBOW

3/8" Hose x NG-8

1шт.

14

8605735

90 ELBOW

3/8" Hose x NG-12

1шт.

15

131-440

PUSH-ON NUT

Retainer, 5/16"

1шт.

16

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

1шт.

17

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

1шт.
