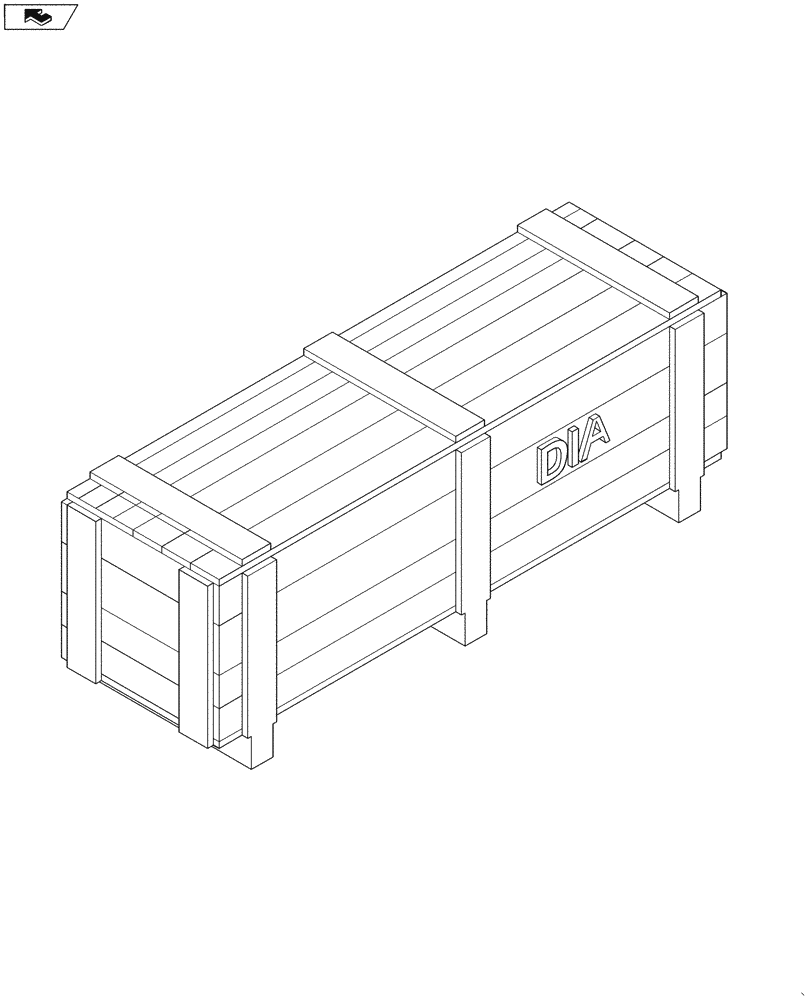

Запчасти Case IH 6130 (88.100.27 [01]) - DIA, AXLE EXTENSION - 11.2 INCH (NA & RWLD ONLY) (88) - ACCESSORIES

1

87390908

DIA KIT, HARVESTER

Axle Extension, 11.2, Incl 1, 9

1шт.

2

87707951

EXTENSION

Axle, 11.2", Incl 2 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

AXLE ASSEMBLY, 11.2", Extension

2шт.

4

87638961

SHAFT

Final Drive

2шт.

5

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

Final Drive

52шт.

6

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

26шт.

7

832-41320

NUT,M20 x 2.5, Cl 10

26шт.

8

87542957

WASHER,32.8mm ID x 56.5mm OD x 5mm Thk

2шт.

9

86016798

LOCK NUT,1 1/4"-12, GC

2шт.

10

87708035

ROD

11.2, Axle Extension

1шт.
