Запчасти Case IH 6130 (88.088.01) - DIA KIT, COVER, ACCESS, GRAIN BIN (88) - ACCESSORIES

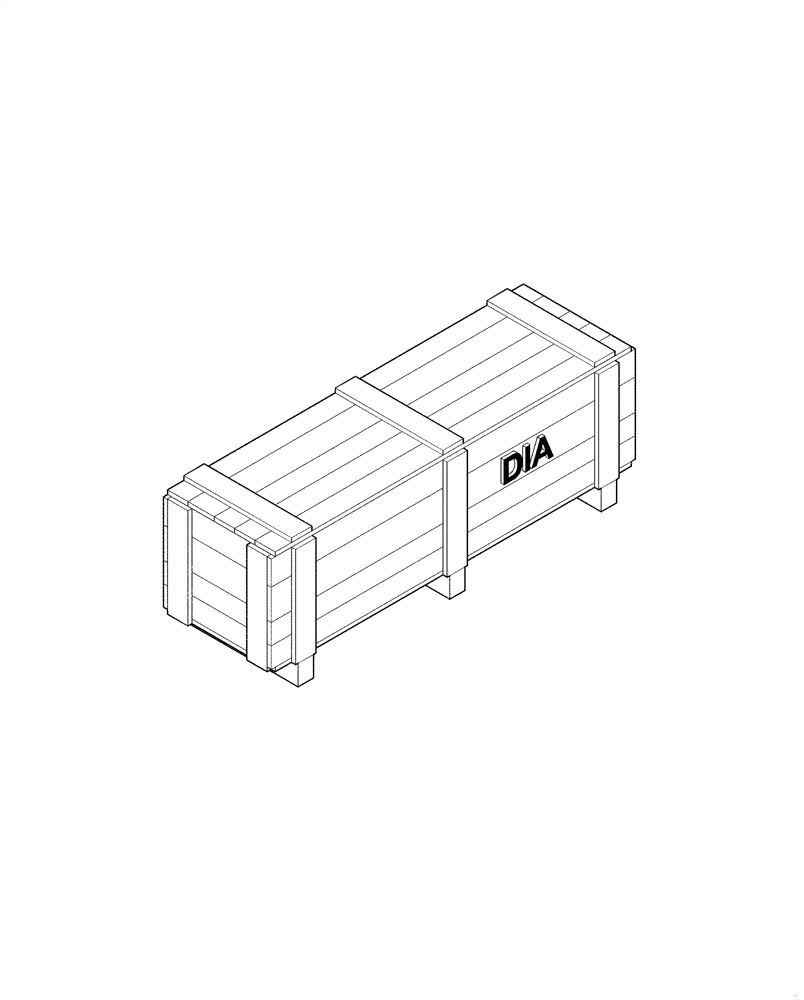

Схема запчастей Case IH 6130 - (88.088.01) - DIA KIT, COVER, ACCESS, GRAIN BIN (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

1

84385830

SERVICE KIT

Cover, Access, Grain Bin, Incl 2 - 71

1шт.

2

84415829

CATALOG REVISION

Instruction Installation, Grain BIN Cover

1шт.

3

84369496

BRACKET

Weld Assembly, Rockshaft, Front, Red

1шт.

4

87727126

BRACKET

Weld Assembly, Tank Cover, LH, Front Dark Gray

1шт.

5

87727129

BRACKET

Weld Assembly, Tank Cover, RH, Front Dark Gray

1шт.

6

84300523

BRACKET

Weld Assembly, Tank Cover, RH, RR - Red

1шт.

7

87619951

BRACKET

Weld Assembly, Tube Support, Gr Tank, Case Red

1шт.

8

87727319

SUPPORT ASSY.

Tank Cover, RH, RR, Case Red

1шт.

9

84300526

BRACKET

Weld Assembly, Tank Cover, LH, RR - Red

1шт.

10

87556613

COVER ASSY

Access, Grain Tank, LH

1шт.

11

87556597

COVER ASSY

Access, Grain Tank, RH

1шт.

12

86592713

WASHER,13mm ID x 30mm OD x 6mm Thk

2шт.

13

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

6шт.

14

87731370

TUBE,25.4 mm ID x 34.925 mm OD x 400 mm L

Top Link, Tank Cover, Dark Gray

2шт.

15

84522945

HEADLESS PIN,12mm OD x 75mm L

2шт.

16

87731372

LINK ASSY.

Tank Cover, LH Lower

1шт.

17

87613189

WASHER,0.53" ID x 1.25" OD x 0.06" Thk

8шт.

18

84522947

HEADLESS PIN,10mm OD x 70mm L

2шт.

19

84522949

HEADLESS PIN,12mm OD x 70mm L

2шт.

20

87720937

LINK ASSY.

RH LWR, With BRG

1шт.

21

87631786

CHANNEL

Wear, Dark Gray

2шт.

22

87030021

BOLT,Hex, M12 x 150mm, Cl 10.9

4шт.

23

84419999

SERVICE KIT

Rockshaft Assembly, Tank Cover

1шт.

24

87726831

TUBE,31.7729 mm DIA

Assembly, End, Front, W/ BRG

1шт.

25

86512497

FLANGE NUT,M12 x 1.75, Cl 10

18шт.

26

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

2шт.

27

84300520

COVER ASSY

Cover Assembly, Actuator

1шт.

28

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

29

87605674

SUPPORT ASSY.

Angle, Tank Top W CVR, Dark Gray

2шт.

30

87727124

STRAP

Strip, Backing, Corner, Dark Gray

4шт.

31

87710467

SUPPORT ASSY.

Rockshaft, With Bushing

1шт.

32

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

17шт.

33

86585704

SCREW,Phillips Drive, Pan HD, M8 x 25mm, Cl 4.8

6шт.

34

87698807

BOLT,Hex, M16 x 120mm, Cl 10.9

2шт.

35

87036807

SCREW,Pan Cross Recess Phillips, M10 x 1.5 x 20mm, Cl 4.8

8шт.

36

87673844

SELF-TAP SCREW,M8 x 1.25 x 20mm

Self Tapping

6шт.

37

87631278

PLATE ASSY.

Washer, Rockshaft Retaining, Case Red

1шт.

38

87643551

CHANNEL

Support, Baffle Cover, PTD

1шт.

39

87686085

SPACER

Front Stopper

2шт.

40

87698845

BOLT,M12 x 70, Cl 10.9

2шт.

41

84411464

ROD

Linkage Extension, Plated

2шт.

42

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

8шт.

43

86050279

FLANGE NUT,M10 x 1.5, Cl 10

18шт.

44

87028052

BOLT,Hex Flg, M16 x 140, 10.9

2шт.

45

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

46

87030775

BOLT,M8 x 38.1mm, Cl 10.9

6шт.

47

131-440

PUSH-ON NUT

Retainer, Bolt, Pushon 5/16

5шт.

48

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

12шт.

49

86975890

SCREW,Torx, Pan HD, M8 x 1.25 x 20mm, Cl 8.8

Machine

28шт.

50

86507066

FLANGE NUT,M8 x 1.25, Cl 10

48шт.

51

84181862

ACTUATOR

Heavy Wall Tube

1шт.

52

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

13шт.

53

392530

NUT,M16, Cl 10

2шт.

54

10717511

THIN NUT,Thin, M16 x 2, Cl 04

Jam

2шт.

55

87740259

EXTENSION

Bar Assembly, Actuator

1шт.

56

84056380

CLEVIS PIN,12mm OD x 50mm L

1шт.

57

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

14шт.

58

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

6шт.

59

495-61066

WASHER

1шт.

60

394818

COTTER PIN,M5 x 25

1шт.

61

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

1шт.

62

445394

RIVET,Pop, 3/16" x 1/2" OAL

Steel

1шт.

63

84203502

BRACKET

Cover Sensor, Gray Tank Case

1шт.

64

87392235

SENSOR

Reed, Non-Contact, Normally Open

1шт.

65

86511920

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2"

2шт.

66

86632551

NUT,#10-24, GB

Insert

2шт.

67

84159225

PACKAGE,SERVICE

Mirror

1шт.

68

84373207

WIRE HARNESS

Graintank covers

1шт.

69

84370691

SWITCH ASSY

Rocker, Grain Tank Covers

1шт.

70

86508603

RELAY,12V

1шт.

71

86566989

CABLE TIE,208mm L

Strap, Black, Nylon

4шт.

Выбрано товаров: 71
