Запчасти Case IH 6130 (80.150.BG[06]) - VAR - 425471, 425494 - GRAIN BIN EXTENSION, DOOR (80) - CROP STORAGE/UNLOADING

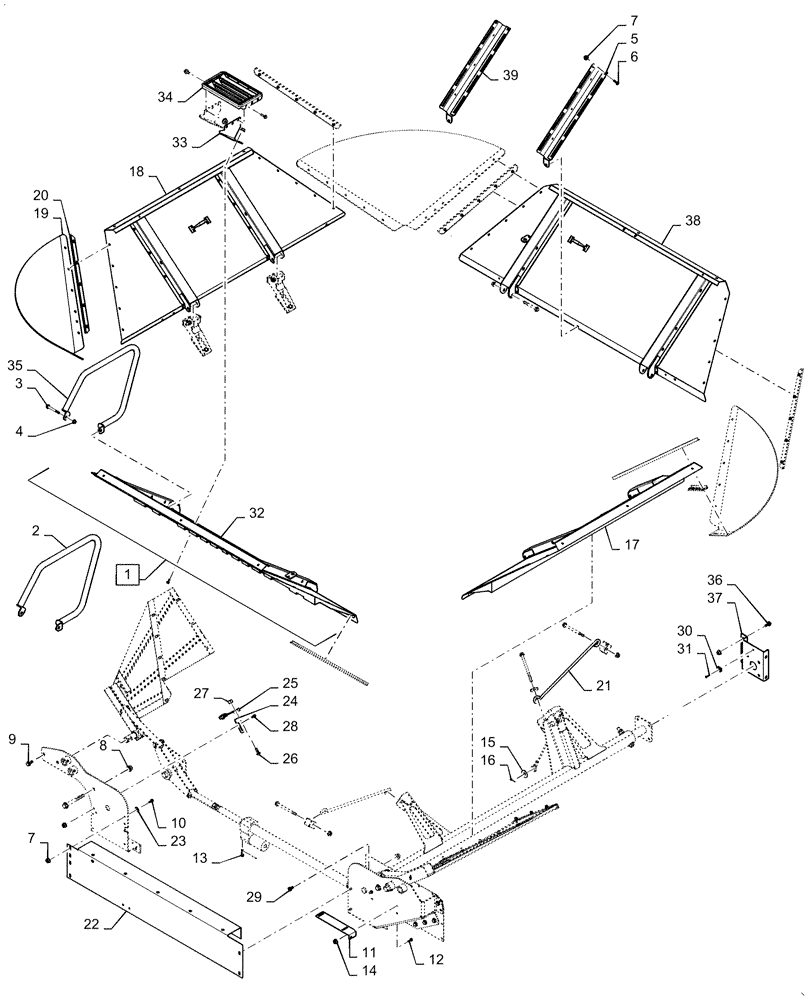

Схема запчастей Case IH 6130 - (80.150.BG[06]) - VAR - 425471, 425494 - GRAIN BIN EXTENSION, DOOR (80) - CROP STORAGE/UNLOADING
13
16
11
15
8
36
29
25
12
23
14
33
37
30
32
7
34
35
20
10
2
17
39
27
26
7
31
5
3
21
18
6
24
28
9
22
19
38
4
1

Артикул

Название

Примечание

Количество

1

87554394

EXTENSION ASSY.

Door, Front/ Rear, 24", VAR - 425471, Incl 32

2шт.

2

87109875

HANDLE

Grab- VAR - 425471

1шт.

3

87032825

BOLT,Hvy Hex, M12 x 100mm, Cl 10.9

4шт.

4

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

5

87756703

BRACKET

Bin Level Sensor Mount

1шт.

6

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

6шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

8

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

9

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

11шт.

10

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

10шт.

11

87643551

CHANNEL

Baffle Cover

1шт.

12

86585704

SCREW,Phillips Drive, Pan HD, M8 x 25mm, Cl 4.8

2шт.

13

84056380

CLEVIS PIN,12mm OD x 50mm L

1шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

24шт.

15

495-61066

WASHER

.75" x .656" x .1"

1шт.

16

394818

COTTER PIN,M5 x 25

1шт.

17

84368545

EXTENSION

RH, 24" VAR - 425471

1шт.

17

84367830

EXTENSION

RH, 32" VAR - 425494

1шт.

18

84368551

EXTENSION

LH, 24" VAR - 425471

1шт.

18

84367834

EXTENSION

LH, 32", VAR - 425494

1шт.

19

87734459

CANVAS

Extension, Corner, 24" VAR 425471

4шт.

19

87726836

CANVAS,938.3mm W x 1345.5mm L

Extension, Corner, 32" VAR - 425494

4шт.

20

84194670

ANGLE

Extension, 24" VAR - 425471

8шт.

20

87735041

ANGLE

Extension, 32" VAR 425494

8шт.

21

84411464

ROD

Linkage Extension

2шт.

22

84300520

COVER ASSY

Actuator

1шт.

23

131-440

PUSH-ON NUT

5/16"

6шт.

24

47438793

BRACKET

Door Open/Close Sensor

1шт.

25

87392235

SENSOR

Reed, Door Open/Close

1шт.

26

86511920

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2"

2шт.

27

86632551

NUT,#10-24, GB

2шт.

28

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

29

87036807

SCREW,Pan Cross Recess Phillips, M10 x 1.5 x 20mm, Cl 4.8

6шт.

30

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

1шт.

31

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

32

87735049

EXTENSION ASSY.

Door, Rear, 32" VAR - 425494

1шт.

33

87609690

BRACKET

Step Support

2шт.

34

1531337C1

STEP

1шт.

35

87648705

HANDLE

Grab - 425494

1шт.

36

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

Flange, M10 x 25mm, Full Thread, 10.9

4шт.

37

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

38

87721662

EXTENSION ASSY.

Door, Front, 32" VAR 425494

1шт.

39

87685904

BRACKET

Bin Level Sensor Mount

1шт.

Выбрано товаров: 43
