Запчасти Case IH 6130 (80.150.BF[01]) - VAR - 425472, 425467 - COVER, GRAIN TANK (80) - CROP STORAGE/UNLOADING

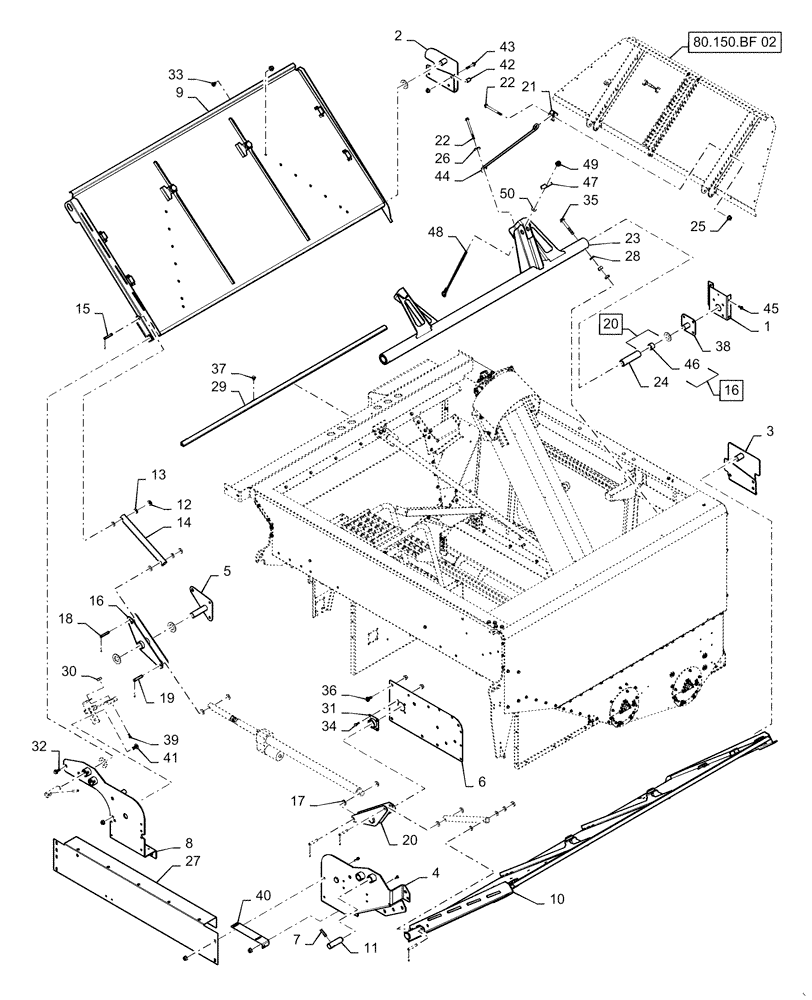

Схема запчастей Case IH 6130 - (80.150.BF[01]) - VAR - 425472, 425467 - COVER, GRAIN TANK (80) - CROP STORAGE/UNLOADING
24
15
7
22
6
30
33
17
80.150.bf 02
21
11
37
31
49
40
2
16
50
46
18
29
34
20
10
16
43
23
14
35
36
47
25
42
12
28
13
19
48
5
3
1
26
41
39
22
8
32
4
27
20
44
9
38
45

Артикул

Название

Примечание

Количество

1

84369496

BRACKET

Rockshaft, Front

1шт.

2

87727126

BRACKET

Tank Cover, Front, LH

1шт.

3

87727129

BRACKET

Tank Cover, Front, RH

1шт.

4

47423996

BRACKET

Tank Cover, Rear, RH

1шт.

5

87619951

BRACKET

Tube Support, Grain Tank

1шт.

6

87727319

SUPPORT ASSY.

Tank Cover, Rear, RH

1шт.

7

381928

ROLL PIN,10mm OD x 50mm L, Slotted

2шт.

8

47424000

BRACKET

Tank Cover, Rear, LH

1шт.

9

87556613

COVER ASSY

Grain Tank, LH

1шт.

10

87556597

COVER ASSY

Grain Tank, RH

1шт.

11

47384093

PIN

Tank Extension, Retaining

2шт.

12

86592713

WASHER,13mm ID x 30mm OD x 6mm Thk

30mm OD x 13mm ID x 6mm

2шт.

13

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

6шт.

14

87731370

TUBE,25.4 mm ID x 34.925 mm OD x 400 mm L

Top Link

2шт.

15

84522945

HEADLESS PIN,12mm OD x 75mm L

M12 x 75mm

2шт.

16

87731372

LINK ASSY.

Tank Cover, Lower, LH, Incl 46

1шт.

17

87613189

WASHER,0.53" ID x 1.25" OD x 0.06" Thk

8шт.

18

84522947

HEADLESS PIN,10mm OD x 70mm L

M10 x 70mm

2шт.

19

84522949

HEADLESS PIN,12mm OD x 70mm L

M12 x 70mm

2шт.

20

87720937

LINK ASSY.

Lower, RH, Incl 46

1шт.

21

87631786

CHANNEL

Wear

2шт.

22

87030021

BOLT,Hex, M12 x 150mm, Cl 10.9

4шт.

23

47517661

ROCKSHAFT

Tank Cover

1шт.

24

87726831

TUBE,31.7729 mm DIA

Front

1шт.

25

86512497

FLANGE NUT,M12 x 1.75, Cl 10

18шт.

26

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

2шт.

27

84300520

COVER ASSY

Actuator Cover

1шт.

28

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

29

87605674

SUPPORT ASSY.

Top Cover

2шт.

30

86632551

NUT,#10-24, GB

2шт.

31

87710467

SUPPORT ASSY.

Rockshaft

1шт.

32

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

17шт.

33

86975890

SCREW,Torx, Pan HD, M8 x 1.25 x 20mm, Cl 8.8

48шт.

34

86585704

SCREW,Phillips Drive, Pan HD, M8 x 25mm, Cl 4.8

6шт.

35

87698807

BOLT,Hex, M16 x 120mm, Cl 10.9

Flange, M16 x 120mm, 10.9

2шт.

36

87036807

SCREW,Pan Cross Recess Phillips, M10 x 1.5 x 20mm, Cl 4.8

8шт.

37

87673844

SELF-TAP SCREW,M8 x 1.25 x 20mm

6шт.

38

87631278

PLATE ASSY.

Rockshaft Retainer

1шт.

39

86511920

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2"

2шт.

40

87643551

CHANNEL

Baffle Cover

1шт.

41

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

42

87686085

SPACER

Front Stopper

2шт.

43

87698845

BOLT,M12 x 70, Cl 10.9

2шт.

44

84411464

ROD

Linkage Extension

2шт.

45

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

8шт.

46

87556665

BEARING,31.773mm ID x 35.7mm OD x 25.4mm Thk

Hinge

1шт.

47

84208529

BAR

Cable, Bubbler Linkage

1шт.

48

87740261

CABLE ASSY.

Bubbler Auger Lift

1шт.

49

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

50

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

Выбрано товаров: 50
