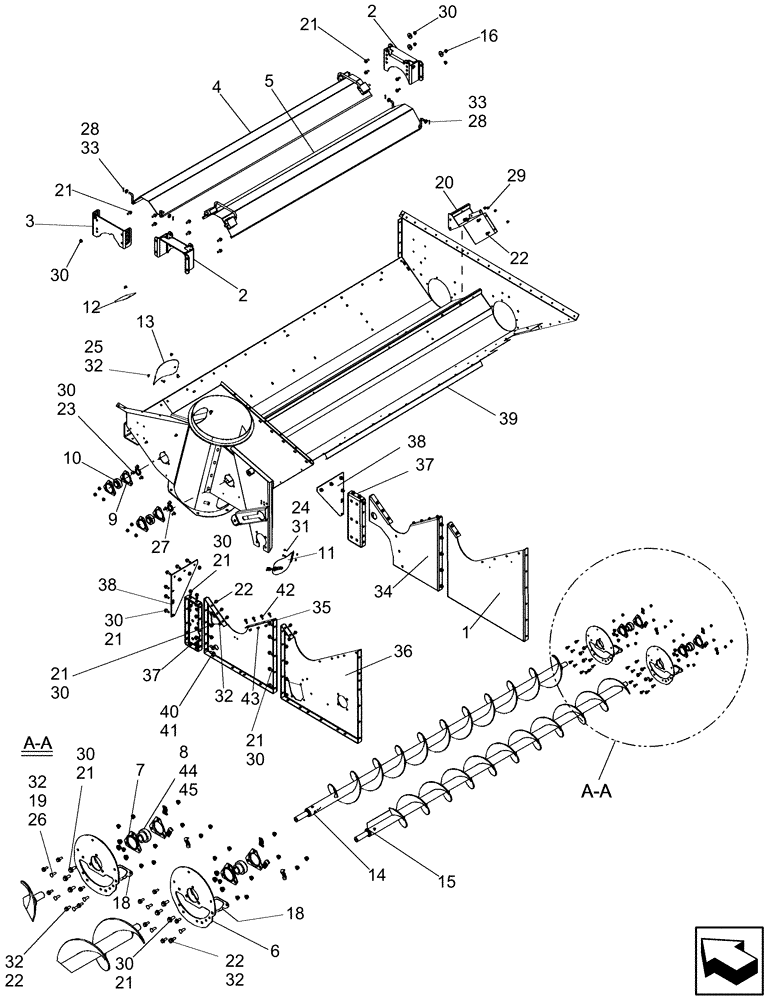

Запчасти Case IH 6130 (80.150.AI[**REM**]) - GRAIN TANK BOTTOM AND AUGERS (80) - CROP STORAGE/UNLOADING

1

87755383

SUPPORT

Grain Tank, Rear Right Hand

1шт.

2

86975993

BRACKET

Support

2шт.

3

86975994

BRACKET

Support

1шт.

4

86976423

TOP COVER

1шт.

5

87545834

TOP COVER

Trough Auger

1шт.

6

87342517

BEARING COVER

Grain Tank Clean Out

2шт.

7

86548970

FLANGED BEARING

Bearing

4шт.

8

87044350

BEARING ASSY,30mm ID x 62mm OD x 18mm W

30 mm Bore, 62 mm Outer Sphere

2шт.

9

86620026

FLANGED BEARING

4шт.

10

87605592

BALL BEARING,35mm ID x 72mm OD x 19mm W

Outer Sphere

2шт.

11

87583588

COVER ASSY

1шт.

12

86600691

COVER

1шт.

13

86597524

COVER

1шт.

14

84075321

AUGER

Front

1шт.

15

84075322

AUGER

Rear

1шт.

16

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3шт.

18

87342513

COVER

Grain Tank Clean Out

2шт.

19

425093

CLAMP

6шт.

20

87564472

COVER

Auger Trough

1шт.

21

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

45шт.

22

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

42шт.

23

87682390

CARRIAGE BOLT,M10 x 1.5 x 20mm, Cl 10.9

7шт.

24

87752072

CARRIAGE BOLT,M6 x 1.0 x 26.6mm, Cl 10.9

2шт.

25

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

26

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

8шт.

27

84075099

WASHER,36mm ID x 51mm OD x 6mm Thk

2шт.

28

86624146

WASHER,0.53" ID x 1" OD x 0.12" Thk

4шт.

29

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

4шт.

30

86050279

FLANGE NUT,M10 x 1.5, Cl 10

46шт.

31

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

32

86507066

FLANGE NUT,M8 x 1.25, Cl 10

38шт.

33

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

4шт.

34

84406500

SUPPORT

Grain Tank Center, Right Hand

1шт.

35

87755368

SUPPORT

Grain Tank Center, Left Hand

1шт.

36

87755376

SUPPORT

Grain Tank Rear, Left Hand

1шт.

37

87548929

SUPPORT

Lifting Eye

2шт.

38

84469921

SUPPORT

Grain Tank Front

2шт.

39

84342035

GRAIN TANK

Bottom

1шт.

40

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

41

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

42

87673845

SELF-TAP SCREW,M8 x 1.25 x 25mm

12шт.

43

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

12шт.

44

87598784

COLLAR ASSY.

1шт.

45

86836489

SET SCREW,Hex Skt, M8 x 8mm, Cup Pt

1шт.
