Запчасти Case IH 6130 (10.202.BD[03]) - AIR CLEANER & INTAKE PARTS (10) - ENGINE

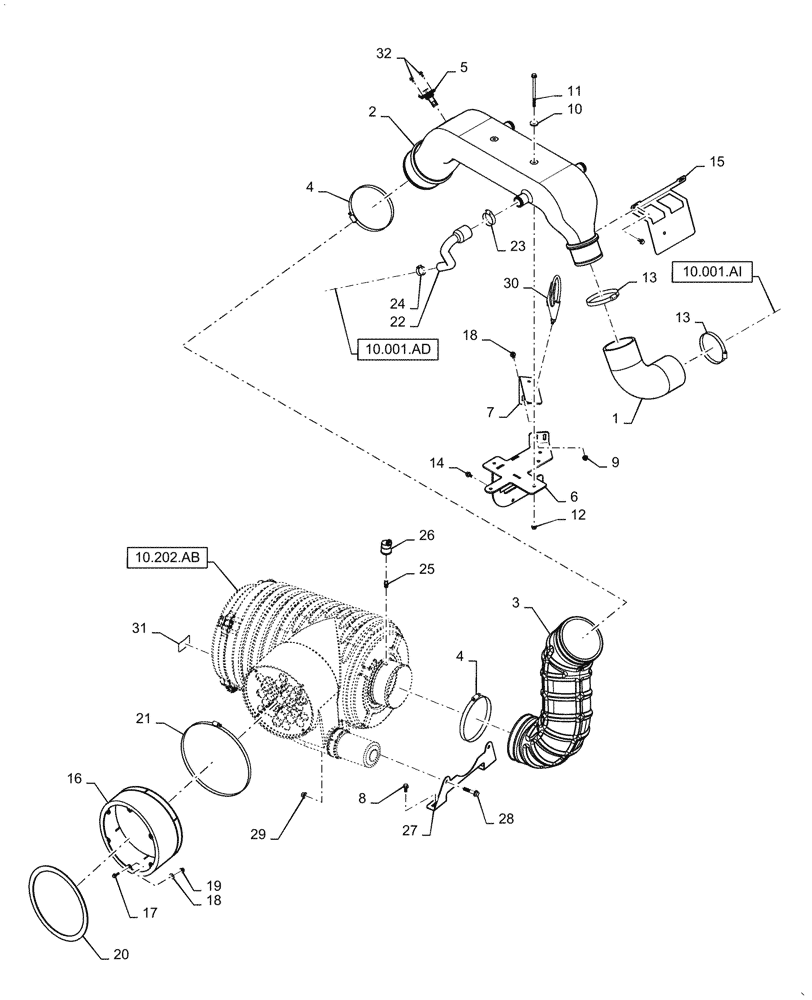

Схема запчастей Case IH 6130 - (10.202.BD[03]) - AIR CLEANER & INTAKE PARTS (10) - ENGINE
10.202.ab
29
23
9
3
30
26
4
21
6
11
32
28
19
1
22
20
13
24
7
31
2
12
8
14
27
18
10
16
18
4
5
25
13
17
15
10.001.ai
10.001.ad

Артикул

Название

Примечание

Количество

1

84455137

ELBOW

Intake, Engine Turbo

1шт.

2

84244909

AIR INTAKE TUBE

Engine Crossover, Tier 2 Only

1шт.

2

84244911

AIR INTAKE TUBE

Engine Crossover, Tier 4 Only

1шт.

3

84373528

INTAKE AIR HOSE

Air Cleaner To Crossover Duct

1шт.

4

86633350

HOSE CLAMP,159mm - 181mm

2шт.

5

87482355

SENSOR

Air Intake Temperature/ Humidity

1шт.

6

84414886

SUPPORT

Intake Elbow

1шт.

7

84414891

ANGLE

Intake Elbow Support

1шт.

8

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

6шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

10

140041

WASHER,M8 x 28mm OD x 3mm Thk

2шт.

11

87681208

BOLT,Hex, M8 X 130, Class 10.9

2шт.

12

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

13

9706924

HOSE CLAMP,103.1mm - 127mm

2шт.

14

87681207

BOLT,M8 x 24.1mm, Cl 10.9

4шт.

15

84196410

PLATE

Engine Crossover Support

1шт.

16

451775A1

DUCT

Cooler Box Adapter

1шт.

17

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

6шт.

18

495-11028

WASHER,1/4", SAE

6шт.

19

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

6шт.

20

87302039

SEAL,856mm L

Cooler Box

1шт.

21

87012918

HOSE CLAMP,64mm - 317.5mm

1шт.

22

84255617

HOSE

PCV

1шт.

23

382528

HOSE CLAMP,35mm ID - 52mm ID x 13mm W, Unlined

1шт.

24

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

1шт.

25

86976679

ADAPTER

Air Cleaner Restriction Valve, 1/8 in.

1шт.

26

87013666

SWITCH,Air Filter Restriction

1шт.

27

84158622

BRACKET

Air Cleaner Mount

2шт.

28

87698840

FLANGE BOLT,M10 x 50mm, Cl 10.9

4шт.

29

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

4шт.

30

A162896

CLAMP

104.65mm ID, Incl Hardware

1шт.

31

84215544

DECAL

Air Filter Element Decal

1шт.

32

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

2шт.

Выбрано товаров: 33
