Запчасти Case IH 6130 (73.430.AA[05]) - SPREADER HOOPS, EU ONLY OPTION (73) - RESIDUE HANDLING

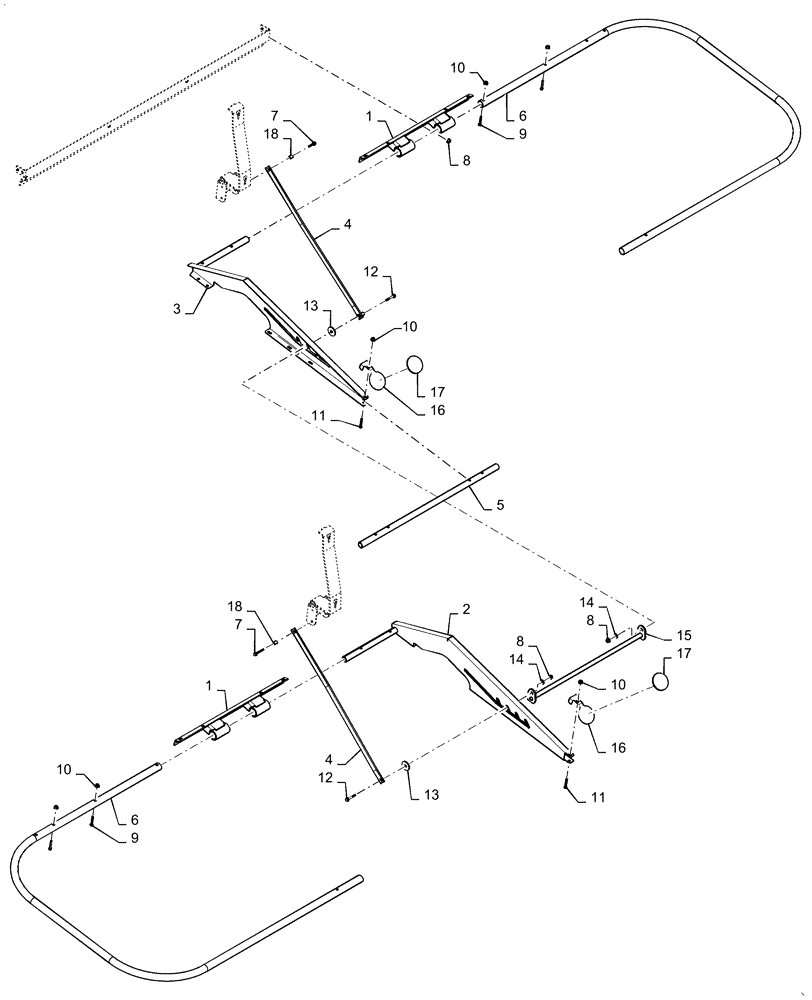

Схема запчастей Case IH 6130 - (73.430.AA[05]) - SPREADER HOOPS, EU ONLY OPTION (73) - RESIDUE HANDLING
2
18
10
14
1
17
4
11
12
10
16
8
6
13
14
3
8
5
17
12
10
18
6
9
9
8
15
11
7
16
1
13
10
4
7

Артикул

Название

Примечание

Количество

1

87635316

SUPPORT ASSY.

Hoop Shield

2шт.

2

87473687

SUPPORT

LH Hoop Shield

1шт.

3

87473689

SUPPORT

RH Hoop Shield

1шт.

4

84136365

SUPPORT

Hoop Shield Brace

2шт.

5

87475002

TUBE,26.99 mm OD x 870 mm L

Rear Hoop Shield

1шт.

6

87384099

TUBE

Straw Spreader Hoop Tube

2шт.

7

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

2шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

9

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

4шт.

10

87681210

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

11

87015731

BOLT,M8 x 1.25 x 55.45mm OAL, Cl 8.8, Full Thd

2шт.

12

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

2шт.

13

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

2шт.

14

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

15

87474831

LATCH

Spreader Shield

1шт.

16

84215097

BRACKET

Rear Reflector Mounting

2шт.

17

437024

REFLECTOR

Red

2шт.

18

87026609

SPACER,8.48mm ID x 12.7mm OD x 9.53mm L

2шт.

Выбрано товаров: 18
