Запчасти Case IH 6130 (10.102.AW) - DRAIN LINE, OIL (10) - ENGINE

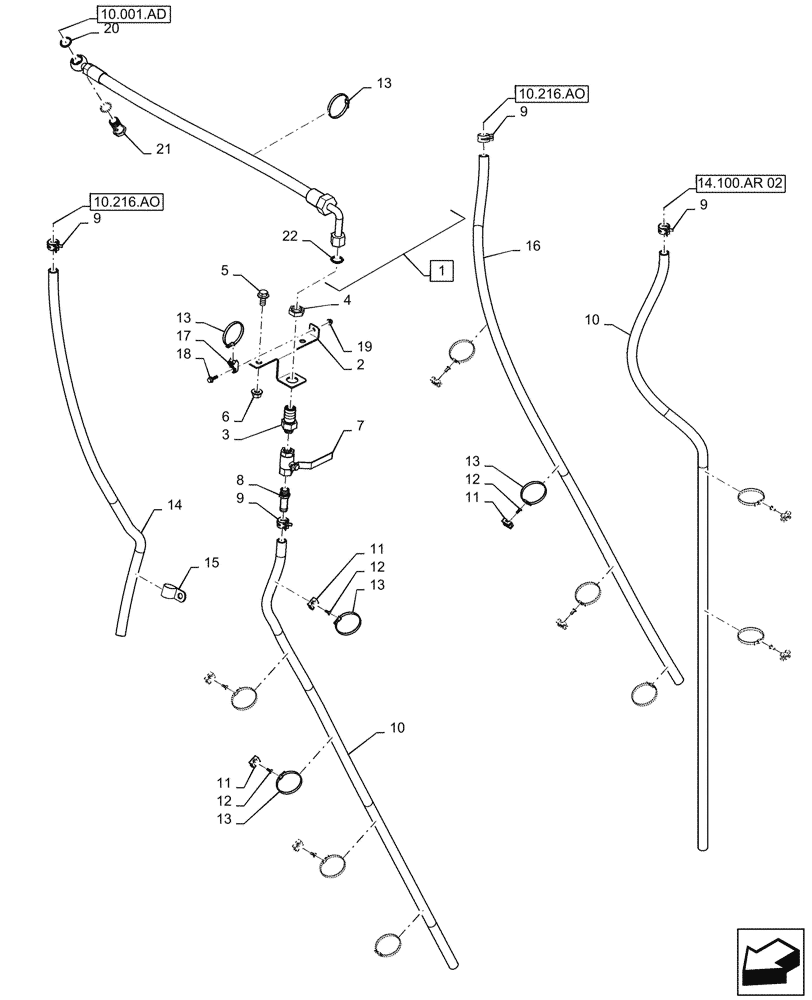

Схема запчастей Case IH 6130 - (10.102.AW) - DRAIN LINE, OIL (10) - ENGINE
19
13
10.216.ao
20
12
11
10.216.ao
7
9
11
21
13
2
15
11
13
1
17
13
9
8
14
22
16
10
18
4
3
10
13
14.100.ar 02
10.001.ad
5
9
6
9
12
12

Артикул

Название

Примечание

Количество

1

84226280

HOSE ASSY.,15.88mm ID x 1000mm L, SAE 100R4

Oil Drain, Incl 20 - 22

1шт.

2

84579642

BRACKET

Bulkhead Support

1шт.

3

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

4

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

5

84288936

FITTING,3/4" - 16 ORB x 1" - 14 ORFS

1шт.

6

201-919

BHD LOCK NUT,1" - 14

1шт.

7

84185100

SHUT-OFF VALVE,3/4" - 16 x 3/4" - 16

1шт.

8

217-395

FITTING,5/8" Hose Barb x 3/4" - 16 Male ORB

1шт.

9

1954736C1

HOSE CLAMP,#24

4шт.

10

1977293C3

HOSE,15.748mm ID x 1700mm L

Drain And Breather

2шт.

11

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

9шт.

12

445394

RIVET,Pop, 3/16" x 1/2" OAL

9шт.

13

306132C1

CABLE TIE,14.5" L

13шт.

14

293339A1

RADIATOR HOSE,22.35mm ID x 1100mm L

1шт.

15

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

16

84364071

FLEXIBLE HOSE,15.75mm ID x 1900mm L

Drain And Breather

1шт.

17

84340333

BASE PLATE

Base Tie

1шт.

18

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

1шт.

19

86050300

FLANGE NUT,M6 x 1.0, Cl 10

1шт.

20

220122

SEAL,19mm ID x 24mm OD x 2mm Thk

Washer

2шт.

21

412156

HOLLOW SCREW

Banjo

1шт.

22

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Выбрано товаров: 22
