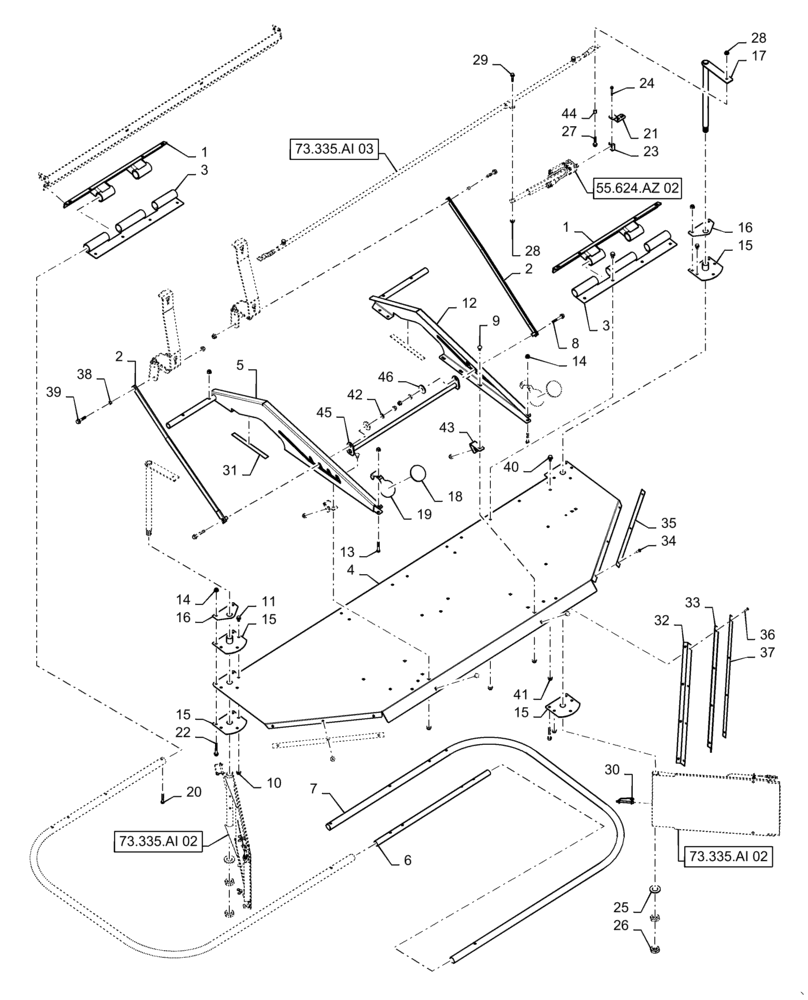

Запчасти Case IH 6130 (73.335.AI[01]) - REMOTE ADJUST SPREADER HOOPS, EU ONLY (73) - RESIDUE HANDLING

1

87635316

SUPPORT ASSY.

Hoop Shield

2шт.

2

84136365

SUPPORT

Hoop Shield Brace

2шт.

3

87382523

HINGE

Spreader Shield

2шт.

4

87474999

BRACKET

Shield

1шт.

5

87473687

SUPPORT

LH Hoop Shield

1шт.

6

87475002

TUBE,26.99 mm OD x 870 mm L

Rear Hoop Shield

1шт.

7

87384099

TUBE

Straw Spreader Hoop Tube

2шт.

8

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

2шт.

9

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

12шт.

10

86507066

FLANGE NUT,M8 x 1.25, Cl 10

40шт.

11

87681207

BOLT,M8 x 24.1mm, Cl 10.9

22шт.

12

87473689

SUPPORT

RH Hoop Shield

1шт.

13

87015731

BOLT,M8 x 1.25 x 55.45mm OAL, Cl 8.8, Full Thd

2шт.

14

87681210

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

15

84180269

SHIELD

Spreader Lever Pivot

4шт.

16

87470044

PLATE ASSY.

Spreader Shield Pivot

2шт.

17

87709569

PIVOT ASSY.

Spreader Lever

2шт.

18

437024

REFLECTOR

Red

2шт.

19

84215097

BRACKET

Rear Reflector Mounting

2шт.

20

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

21

87477694

PLATE

Actuator Mounting

1шт.

22

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

4шт.

23

87475884

PIVOT ASSY.

Actuator Mounting

1шт.

24

87670760

FLANGE BOLT,M6 x 56.6mm, Cl 10.9

1шт.

25

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

26

87034489

THIN NUT,Hex, M24, 3mm Pitch, Cl 05

4шт.

27

87698832

FLANGE BOLT,Hex, M6 x 35mm, Cl 10.9

2шт.

28

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

4шт.

29

87698760

FLANGE BOLT,M6 x 36.6mm, Cl 10.9

1шт.

30

1338021C1

PIN,7.94mm OD

Latch Locking

2шт.

31

87521572

PAD

Adhesive Back

1шт.

32

87473681

ANGLE

Spreader Shield

2шт.

33

87475886

CANVAS

Spreader Shield Seal

2шт.

34

445394

RIVET,Pop, 3/16" x 1/2" OAL

6шт.

35

87473683

SUPPORT

Seal Retainer Strap

2шт.

36

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

8шт.

37

87475882

SUPPORT

Seal Retainer Strap

2шт.

38

87026609

SPACER,8.48mm ID x 12.7mm OD x 9.53mm L

2шт.

39

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

2шт.

40

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

8шт.

41

86050300

FLANGE NUT,M6 x 1.0, Cl 10

8шт.

42

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

43

87473675

ANGLE

Spreader Shield

2шт.

44

87301392

SPACER,1/8" Pipe x .591"

2шт.

45

87474831

LATCH

Spreader Shield

1шт.

46

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

2шт.
