Запчасти Case IH 6130 (60.130.AJ[01]) - DRIVER, FEEDER DRIVESHAFT (60) - PRODUCT FEEDING

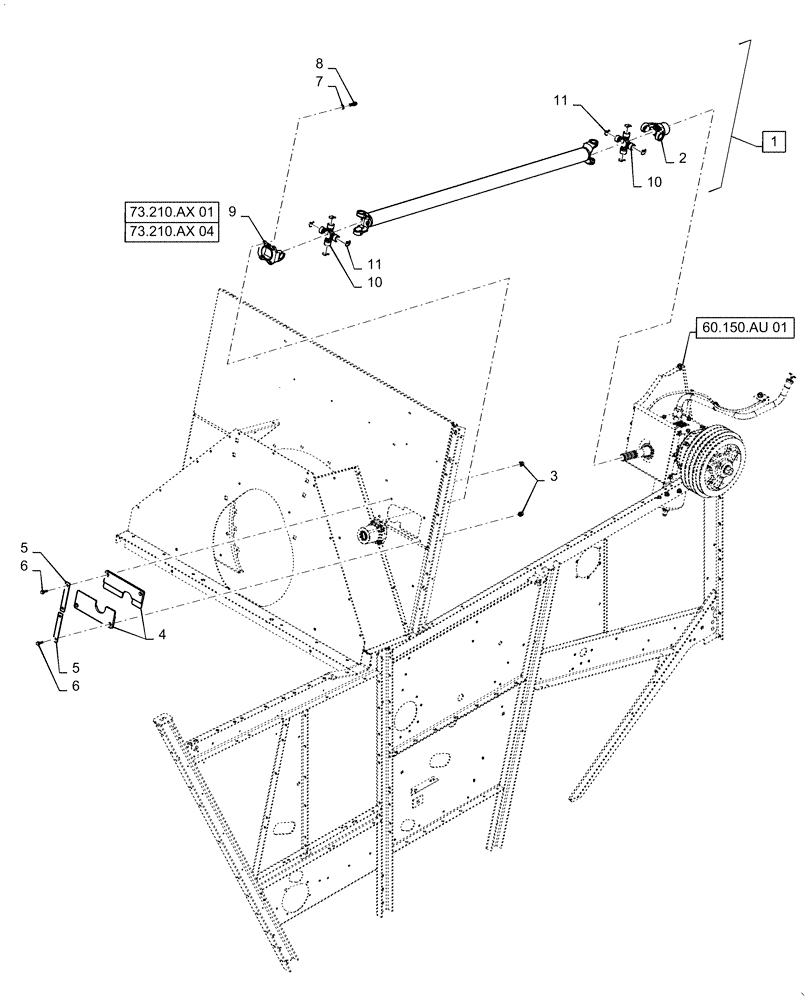

Схема запчастей Case IH 6130 - (60.130.AJ[01]) - DRIVER, FEEDER DRIVESHAFT (60) - PRODUCT FEEDING
2
4
6
73.210.ax 01
60.150.au 01
10
11
7
8
9
73.210.ax 04
6
10
11
5
3
5
1

Артикул

Название

Примечание

Количество

1

87330901

DRIVE SHAFT

Feeder, Incl 2, 9 - 11

1шт.

2

87600701

YOKE

1 3/8" 10 Spline

1шт.

3

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

Rivnut, M8

4шт.

4

87584502

SEAL

Feeder Driveshaft

2шт.

5

87624399

STRAP

Driveshaft Seal Retainer

2шт.

6

87030775

BOLT,M8 x 38.1mm, Cl 10.9

4шт.

7

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

4шт.

8

87035075

12 PT SCREW,M12 x 35mm, Cl 12.9

4шт.

9

87600700

FLANGE

To Seperator Jackshaft

1шт.

10

87597409

BEARING ASSY

U-Joint

2шт.

11

87600698

SNAP RING

U-Joint Retainer

8шт.

Выбрано товаров: 11
