Запчасти Case IH 6130 (55.510.AF[01]) - FUSE BOX (55) - ELECTRICAL SYSTEMS

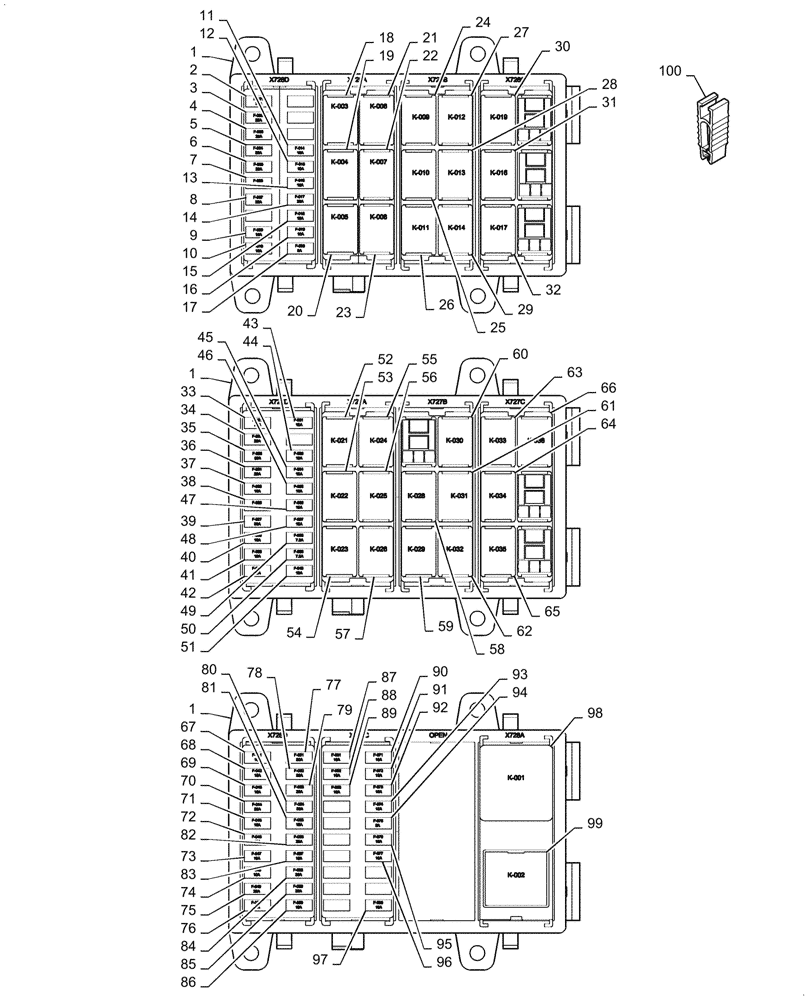

Схема запчастей Case IH 6130 - (55.510.AF[01]) - FUSE BOX (55) - ELECTRICAL SYSTEMS
93
40
78
41
65
94
52
76
57
68
5
19
48
67
43
71
25
58
33
89
99
55
87
17
3
1
20
77
61
95
29
84
72
18
12
38
82
90
1
14
30
70
24
8
91
100
75
92
27
34
62
59
46
35
64
21
11
36
53
85
31
81
28
37
83
1
88
26
42
9
86
79
44
47
45
10
15
49
54
60
50
96
66
69
23
97
73
16
32
80
2
56
6
51
13
74
39
63
4
7
98
22

Артикул

Название

Примечание

Количество

1

84147087

FUSE HOLDER

Frame

3шт.

2

84127708

FUSE,30A, Mini, Green

Outer Roof Lights, F-001

1шт.

3

84127708

FUSE,30A, Mini, Green

Mid Outer Roof Lights, F-002

1шт.

4

84127708

FUSE,30A, Mini, Green

Inner Roof Lights, F-003

1шт.

5

84127708

FUSE,30A, Mini, Green

Rotary Light Switch Power, F-004

1шт.

6

84127704

FUSE,20A, Mini, Yellow

Dome Light, F-005

1шт.

7

84127708

FUSE,30A, Mini, Green

Side/Exit Lights, F-006

1шт.

8

84127703

FUSE,15A, Mini, Blue

B+ (Radio Memory), F-007

1шт.

9

84127703

FUSE,15A, Mini, Blue

Optional, F-009

1шт.

10

84127703

FUSE,15A, Mini, Blue

Aftercut/Grain Tank Lights, F-010

1шт.

11

84127702

FUSE,10A, Mini, Red

CUCM, Covers, Road, Beacon Switches, F-014

1шт.

12

84127702

FUSE,10A, Mini, Red

Washer Motor, F-015

1шт.

13

84127703

FUSE,15A, Mini, Blue

Wiper Motor, F-016

1шт.

14

84127708

FUSE,30A, Mini, Green

Roof Blower Motor, F-017

1шт.

15

84127702

FUSE,10A, Mini, Red

ACC, SW B+ Radio, F-018

1шт.

16

84127702

FUSE,10A, Mini, Red

Headliner AUX Outlet, F-019

1шт.

17

84153830

FUSE,5A, Mini, Beige

A-Post Instrument Switch B+, F-020

1шт.

18

84543528

RELAY,12V, 20A, Micro

Side/Exit Lights, K-003

1шт.

19

84543528

RELAY,12V, 20A, Micro

Mid Outer Roof Lights, K-004

1шт.

20

84543528

RELAY,12V, 20A, Micro

Inner Roof Lights, K-005

1шт.

21

84543528

RELAY,12V, 20A, Micro

Optional, K-006

1шт.

22

84543528

RELAY,12V, 20A, Micro

Road Lights, K-007

1шт.

23

84543528

RELAY,12V, 20A, Micro

Outer Roof Lights, K-008

1шт.

24

84543528

RELAY,12V, 20A, Micro

Unload Tube Light, K-009

1шт.

25

84543528

RELAY,12V, 20A, Micro

Road Field Lights, K-010

1шт.

26

84543528

RELAY,12V, 20A, Micro

High Beams (Europe Only), K-011

1шт.

27

84543528

RELAY,12V, 20A, Micro

Beacon Lights, K-012

1шт.

28

84543528

RELAY,12V, 20A, Micro

Brake Lights, K-013

1шт.

29

84543528

RELAY,12V, 20A, Micro

Rear Lights, K-014

1шт.

30

84543528

RELAY,12V, 20A, Micro

HVAC Compressor, K-015

1шт.

31

84543528

RELAY,12V, 20A, Micro

Turntable Right (Europe Only), K-016

1шт.

32

84543528

RELAY,12V, 20A, Micro

Turntable Left (Europe Only), K-017

1шт.

33

84127704

FUSE,20A, Mini, Yellow

Service Lights, Separator On Switch B+, F-021

1шт.

34

84127704

FUSE,20A, Mini, Yellow

Air Seat Compressor B+, F-022

1шт.

35

84127708

FUSE,30A, Mini, Green

Beacon Lights, F-023

1шт.

36

84127704

FUSE,20A, Mini, Yellow

Rear Field, Unload Tube Lights, F-024

1шт.

37

84127702

FUSE,10A, Mini, Red

Brake Lights, F-025

1шт.

38

84127708

FUSE,30A, Mini, Green

Position, Tail, Backup Lights, F-026

1шт.

39

84127708

FUSE,30A, Mini, Green

B+ to Key Switch, F-027

1шт.

40

84127702

FUSE,10A, Mini, Red

Horn, F-028

1шт.

41

84127702

FUSE,10A, Mini, Red

Diagnostic Connector B+, F-029

1шт.

42

84127708

FUSE,30A, Mini, Green

High Beam (Europe Only), F-030

1шт.

43

84127703

FUSE,15A, Mini, Blue

GPS, Moisture, Flow, Covers, Grain Tank Full, In Gear Sensors, F-031

1шт.

44

84127702

FUSE,10A, Mini, Red

Optional, F-033

1шт.

45

84127703

FUSE,15A, Mini, Blue

HVAC Compressor, F-034

1шт.

46

84127702

FUSE,10A, Mini, Red

PRO700, CUCM, Key Ignition, RHM, F-035

1шт.

47

84127703

FUSE,15A, Mini, Blue

RH Road Lights, F-036

1шт.

48

84127703

FUSE,15A, Mini, Blue

LH Road Lights, F-037

1шт.

49

84152583

FUSE,7.5A, Mini, Brown

Header Marker Lights, F-038

1шт.

50

84152583

FUSE,7.5A, Mini, Brown

License Plate, Flip-Up Road Lights, F-039

1шт.

51

84127702

FUSE,10A, Mini, Red

Display, MFH Backlighting, F-040

1шт.

52

84543528

RELAY,12V, 20A, Micro

Concave Open, K-021

1шт.

53

84543528

RELAY,12V, 20A, Micro

Cleaning Fan Speed Increase, K-022

1шт.

54

84543528

RELAY,12V, 20A, Micro

Spreader Position Left (Optional), K-023

1шт.

55

84543528

RELAY,12V, 20A, Micro

Concave Close, K-024

1шт.

56

84543528

RELAY,12V, 20A, Micro

Cleaning Fan Speed Decrease, K-025

1шт.

57

84543528

RELAY,12V, 20A, Micro

Spreader Position Right (Optional), K-026

1шт.

58

84543528

RELAY,12V, 20A, Micro

Upper Sieve Open, K-028

1шт.

59

84543528

RELAY,12V, 20A, Micro

Upper Sieve Close, K-029

1шт.

60

84543528

RELAY,12V, 20A, Micro

Engine Run, K-030

1шт.

61

84543528

RELAY,12V, 20A, Micro

Lower Sieve Open, K-031

1шт.

62

84543528

RELAY,12V, 20A, Micro

Lower Sieve Close, K-032

1шт.

63

84543528

RELAY,12V, 20A, Micro

Swap #1, K-033

1шт.

64

84543528

RELAY,12V, 20A, Micro

Swap #2, K-034

1шт.

65

84543528

RELAY,12V, 20A, Micro

Service Lights, Separator On Switch B+, K-035

1шт.

66

84543528

RELAY,12V, 20A, Micro

Swap #3, K-036

1шт.

67

84127703

FUSE,15A, Mini, Blue

CUCM Warning Light Supply, F-041

1шт.

68

84127703

FUSE,15A, Mini, Blue

CUCM Warning Light Supply, F-042

1шт.

69

84127702

FUSE,10A, Mini, Red

CUCM Height/Tilt, Reel Up/Down, F-043

1шт.

70

84127708

FUSE,30A, Mini, Green

Spreader Position, F-044

1шт.

71

84127702

FUSE,10A, Mini, Red

CICM 12V Driver Supply, F-045

1шт.

72

84127703

FUSE,15A, Mini, Blue

Moisture Bypass Motor, F-046

1шт.

73

84127702

FUSE,10A, Mini, Red

CUCM Unload Auger, Swing, F-047

1шт.

74

84127702

FUSE,10A, Mini, Red

CUCM 2 Speed Hydro, PGA, F-048

1шт.

75

84127704

FUSE,20A, Mini, Yellow

3rd Gear Lockout, Seat Switch, F-049

1шт.

76

84127702

FUSE,10A, Mini, Red

Separator, Feeder, F-050

1шт.

77

84127708

FUSE,30A, Mini, Green

Concave Open, Close, F-051

1шт.

78

84127708

FUSE,30A, Mini, Green

Cleaning Fan Increase, Decrease, F-052

1шт.

79

84127705

FUSE,25A, Mini, White

Swap #1, #2, #3, F-053

1шт.

80

84127704

FUSE,20A, Mini, Yellow

Fuel Pump, F-054

1шт.

81

84127703

FUSE,15A, Mini, Blue

Pressurizer Motor, F-055

1шт.

82

84127704

FUSE,20A, Mini, Yellow

LH Front Service Light, F-056

1шт.

83

84127703

FUSE,15A, Mini, Blue

Remote Sieve Adjust, F-057

1шт.

84

84127708

FUSE,30A, Mini, Green

Sieves, F-058

1шт.

85

84127705

FUSE,25A, Mini, White

B+ CUCM, F-059

1шт.

86

84127702

FUSE,10A, Mini, Red

B+ CICM, RHM, PRO700, F-060

1шт.

87

84127702

FUSE,10A, Mini, Red

Key Switch Panel AUX Outlet, F-061

1шт.

88

84127703

FUSE,15A, Mini, Blue

Key Switch Panel Power Outlet, F-062

1шт.

89

84127702

FUSE,10A, Mini, Red

RHC AUX Outlet, F-063

1шт.

90

84127702

FUSE,10A, Mini, Red

LH AUX Outlet, F-071

1шт.

91

84127703

FUSE,15A, Mini, Blue

AUX Power Connector, F-072

1шт.

92

84127702

FUSE,10A, Mini, Red

B+ Seat Heater, F-073

1шт.

93

84127703

FUSE,15A, Mini, Blue

Turn Table, Edge Scanner, F-074

1шт.

94

84153830

FUSE,5A, Mini, Beige

Turn Signal/Stalk Switch, F-075

1шт.

95

84127702

FUSE,10A, Mini, Red

Left Side Knife (Optional), F-076

1шт.

96

84127702

FUSE,10A, Mini, Red

Right Side Knife (Optional), F-077

1шт.

97

84153830

FUSE,5A, Mini, Beige

Backup Alarm, F-080

1шт.

98

84337245

RELAY

Cab Power, K-001

1шт.

99

82013124

RELAY,12V, 30A

CUCM Power, K-002

1шт.

100

84199546

TOOL

Fuse Extractor

1шт.

Выбрано товаров: 100
