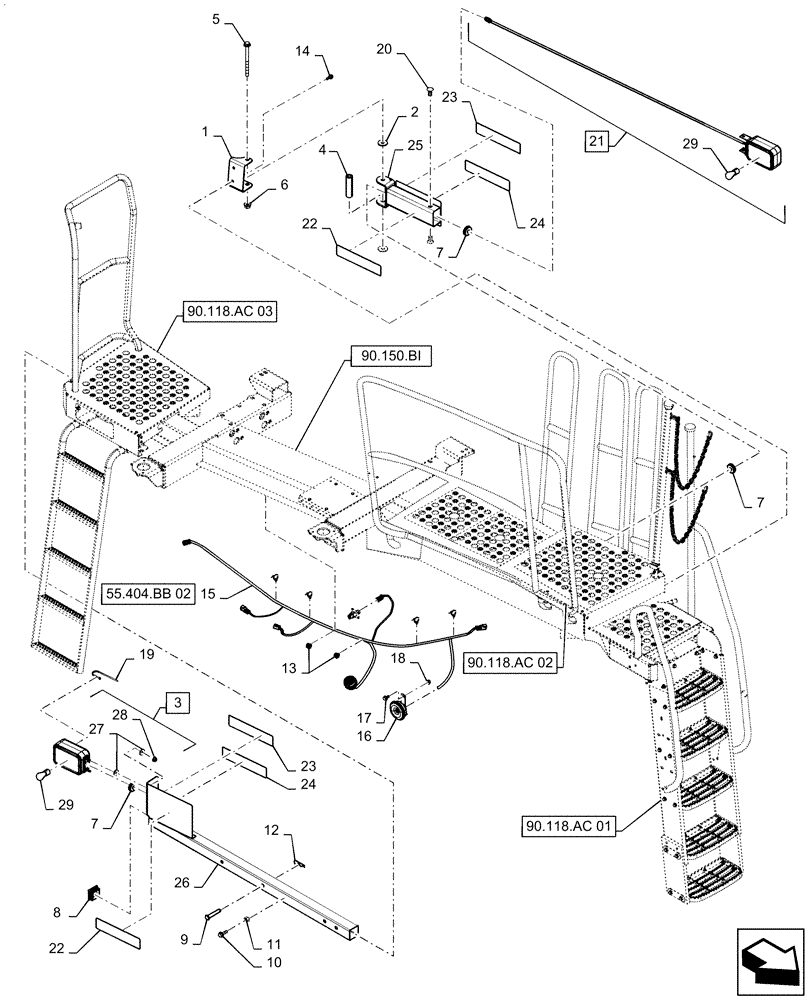

Запчасти Case IH 6130 (55.404.BB[01]) - VAR - 722098, 722602, 425405 - EXTREMITY LIGHT (55) - ELECTRICAL SYSTEMS

1

84422216

BRACKET

Warning Light, LH

1шт.

2

86997936

WASHER,12.7mm ID x 38.1mm OD x 3.18mm Thk

38.1mm OD x 12.7mm ID x 3.18mm W

2шт.

3

87735063

LIGHT ASSY.,12V, Amber

Warning, Amber, Incl 27 - 29

1шт.

4

87105383

SPACER,12.7mm ID x 25.4mm OD x 96.4mm L

25.4mm OD x 19.05mm ID x 96.40mm OAL

1шт.

5

87030021

BOLT,Hex, M12 x 150mm, Cl 10.9

1шт.

6

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

7

87015294

GROMMET,1/2" ID x 1-1/2" OD x 0.438" Thk

3шт.

8

87518247

PLUG

50mm W x 50mm H

1шт.

9

87035064

CLEVIS PIN,12mm OD x 70mm L

1шт.

10

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

1шт.

11

86500689

NUT,M10 x 1.5, Cl 10

1шт.

12

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

Cotter, 19.05mm ID x 2.4mm W

1шт.

13

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

41.1mm OD x 19.05mm ID x 26.9mm W

2шт.

14

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

15

47403808

WIRE HARNESS

Platform

1шт.

16

87714969

HORN

W/ Breather

1шт.

17

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

18

87681210

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

19

86566989

CABLE TIE,208mm L

2шт.

20

86511855

SCREW,Flat, M6 x 1.0 x 12mm OAL, Cl 4.8

2шт.

21

87735064

LIGHT ASSY.,12V, Amber

Flasher, Amber, Incl 29

1шт.

22

87105392

REFLECTOR

Yellow, 230mm OAL x 50mm W

2шт.

23

87105393

REFLECTOR

Red, 230mm OAL x 50mm W

2шт.

24

87105394

REFLECTOR

Orange, 230mm OAL x 50mm W

2шт.

25

87109527

ARM

Mounting, Warning Light, LH

1шт.

26

87470725

SUPPORTING ARM

Warning Light, RH

1шт.

27

NSS

NOT SOLD SEPARAT

Washer, Incl In 3

4шт.

28

NSS

NOT SOLD SEPARAT

Nut, Incl In 3

2шт.

29

SP4802591DS

BULB

Incl In 3, 21

2шт.
