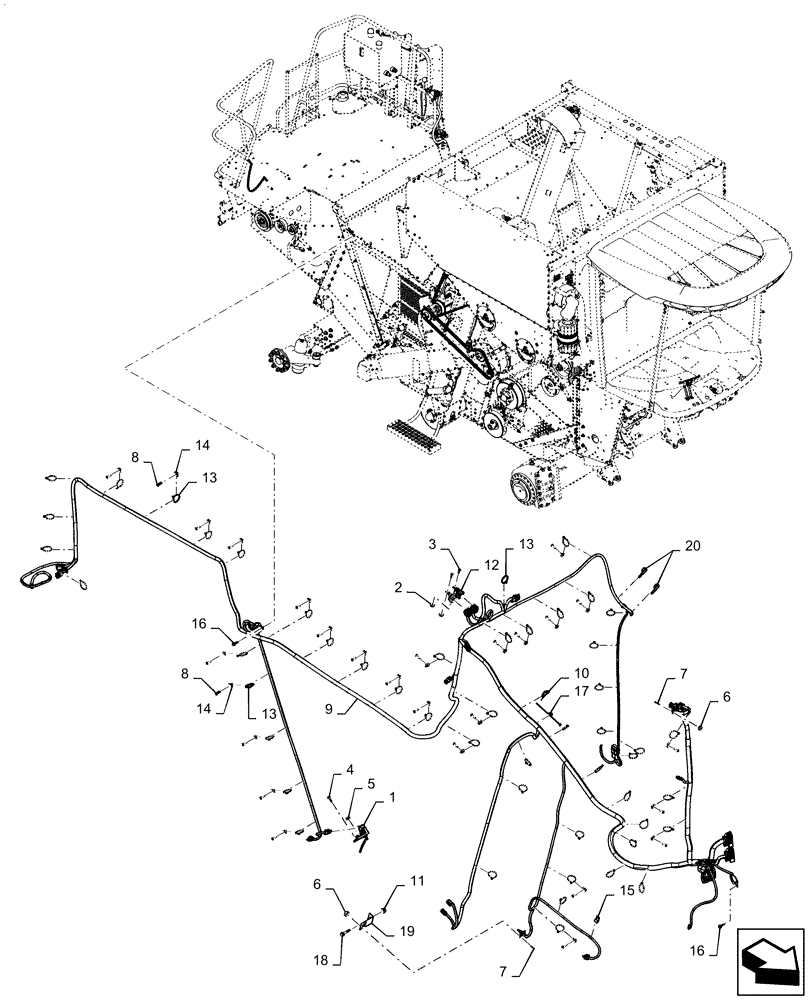

Запчасти Case IH 6130 (55.101.AC[03]) - WIRE HARNESS, RH (55) - ELECTRICAL SYSTEMS

1

87368474

SENSOR

Tailings Volume

1шт.

2

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

3

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

2шт.

4

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

5

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

6

100012

NUT,M4 x 0.7, Cl 8

6шт.

7

412064

BOLT,Hex, M4 x 16mm, Cl 8.8, Full Thd

6шт.

8

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

27шт.

9

47438190

WIRE HARNESS

Main Chassis, RH

1шт.

10

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

1шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

12

86508603

RELAY,12V

Rotor Limit

2шт.

13

86566989

CABLE TIE,208mm L

50шт.

14

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

27шт.

15

87016871

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

16

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

17

87694057

CABLE TIE,200mm L

1шт.

18

87698834

BOLT,M8 x 48.1mm, Cl 10.9

1шт.

19

87752142

BRACKET

Connector Mount

1шт.

20

362666R1

CLIP

Cable Harness

2шт.
