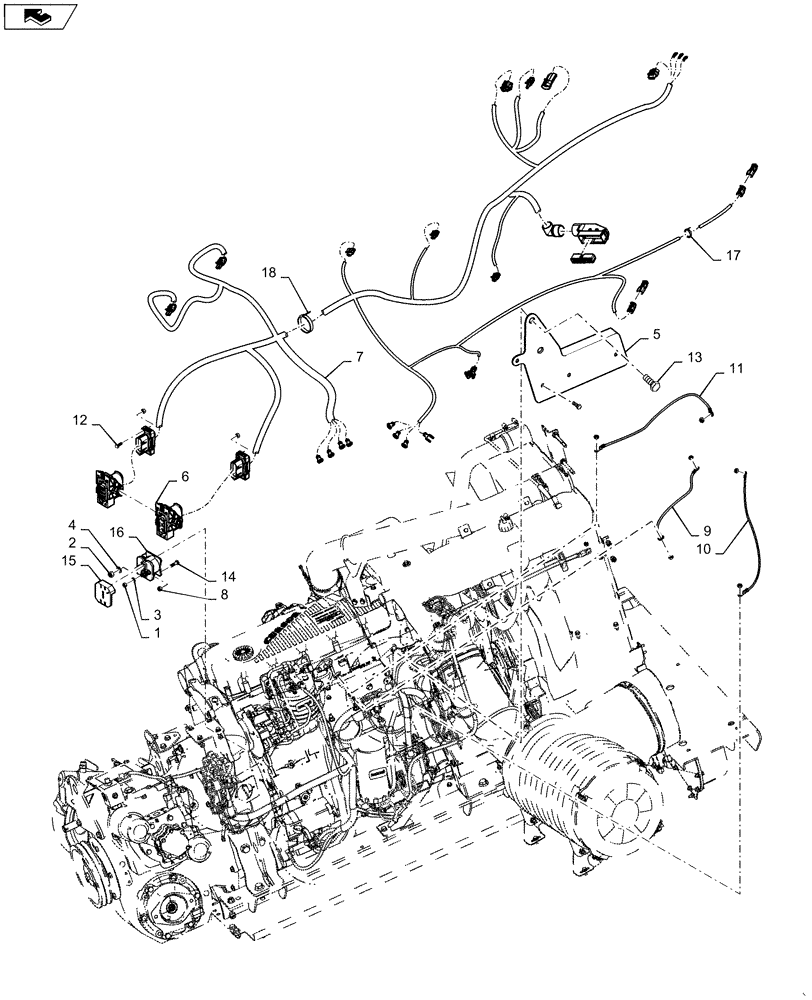

Запчасти Case IH 6130 (55.015.AB [02]) - HARNESS, ENGINE CONTROL, 61/7130 (55) - ELECTRICAL SYSTEMS

1

225-14210

NUT,#10-32

1шт.

2

425-105

NUT,5/16"-18, G5

2шт.

3

492-11010

LOCK WASHER,#10

1шт.

4

492-11031

LOCK WASHER,5/16"

2шт.

5

84499878

BRACKET

Relay

1шт.

6

NSS

NOT SOLD SEPARAT

Not A Service Part

1шт.

7

84566790

WIRE HARNESS

1шт.

8

86050300

FLANGE NUT,M6 x 1.0, Cl 10

8шт.

9

86611285

ELECTRICAL WIRE

Grid Heater

1шт.

10

86611286

ELECTRICAL WIRE

Grid Heater Positive

1шт.

11

86611287

CABLE,490mm L

Grid Heater Neg

1шт.

12

86625213

HEX SOC SCREW,M5 x 12mm, Cl 8.8

4шт.

13

87021006

BOLT,M10 x 26.4mm, Cl 10.9

2шт.

14

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

5шт.

15

178148A1

COVER

Cover, Starter Relay

1шт.

16

183038A1

SOLENOID

Relay W/ Barrier

1шт.

17

289862C1

CABLE TIE,3/16" x 7"

2шт.

18

306132C1

CABLE TIE,14.5" L

1шт.
