Запчасти Case IH 6130 (50.200.AT [02]) - AIR CONDITIONING - COMPRESSOR MOUNTING AND DRIVE-61/7130 CURSOR 9 (50) - CAB CLIMATE CONTROL

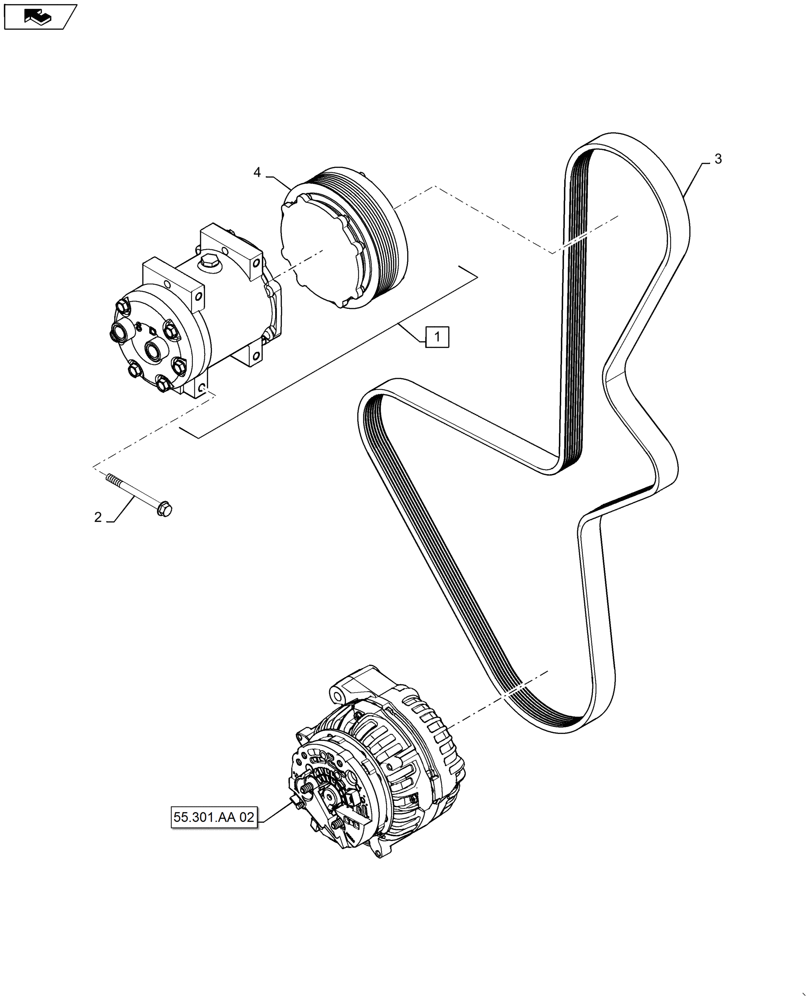

Схема запчастей Case IH 6130 - (50.200.AT [02]) - AIR CONDITIONING - COMPRESSOR MOUNTING AND DRIVE-61/7130 CURSOR 9 (50) - CAB CLIMATE CONTROL
1
2
55.301.11
3
55.301.aa 02
4
home
3
1
2
4

Артикул

Название

Примечание

Количество

1

86993463

AIRCOND. COMPRESSOR

12V

1шт.

1

86993463GV

AIRCOND. COMPRESSOR

Value, 12V

1шт.

1

86993463R

REMAN-A/C COMPRESSOR

Reman for New PN 86993463

1шт.

1

86993463C

CORE-A/C COMPRESSOR

Return Number

1шт.

2

87670762

BOLT,Hex, M8 x 90mm, Cl 10.9

Flange, M8 x 90mm, 10.9

4шт.

3

84292913

BELT,2203.00 mm L

8 Rib

1шт.

4

403585A1

CLUTCH

A/C Compressor

1шт.

Выбрано товаров: 7
