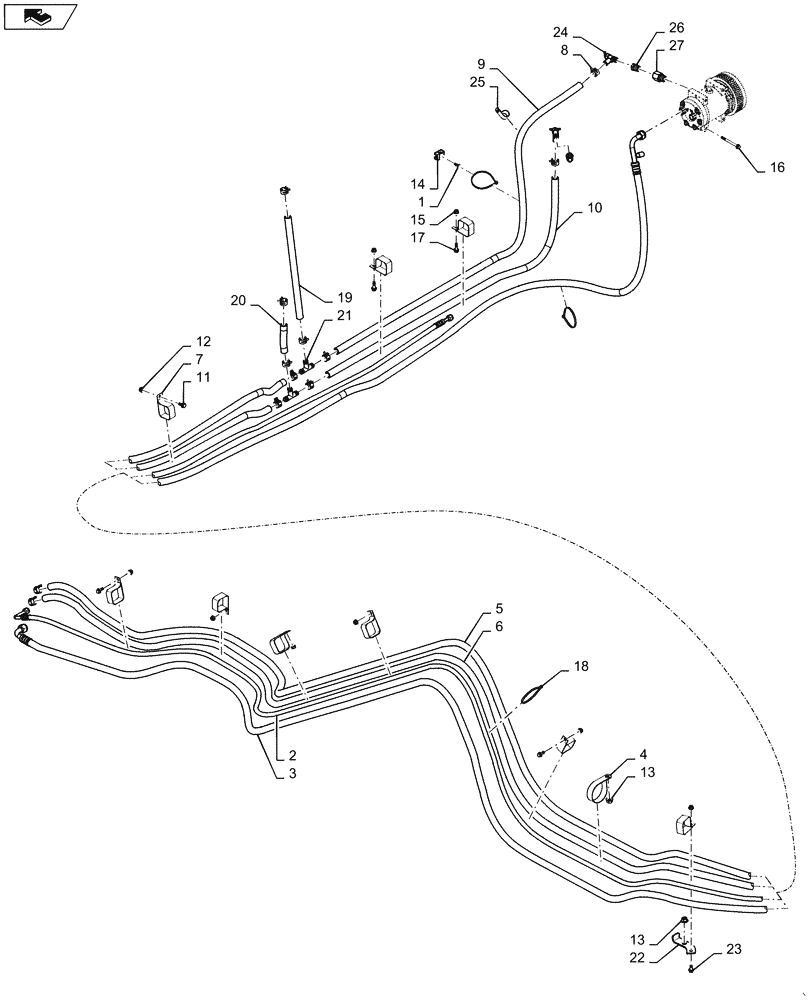

Запчасти Case IH 6130 (50.100.AC) - HEATER - AIR CONDITIONING -COMPRESSOR TO CONDENSOR AND CAB/CHASSIS/DEF CONNECTIONS 61/7130 (50) - CAB CLIMATE CONTROL

1

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

2

84205551

HOSE ASSY.

Cab To Condenser

1шт.

3

84363575

HOSE ASSY.

Suction

1шт.

4

87301362

CLAMP,76.2mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

5

86997299

HEATER HOSE,15.5mm ID x 15240mm L

50 Ft Roll, Cut Piece 4.575M Long

1шт.

6

86997299

HEATER HOSE,15.5mm ID x 15240mm L

50 Ft Roll, Cut Piece 4.674M Long

1шт.

7

1301387C2

CLIP

9шт.

8

1954736C1

HOSE CLAMP,#24

8шт.

9

87324583

HOSE,15.50 mm ID x 1510.00 mm

Heater Supply

1шт.

10

410533A1

HEATER HOSE,15.50 mm ID x 1270.00 mm

Heater Return

1шт.

11

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

3шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

9шт.

13

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

14

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

1шт.

15

131-440

PUSH-ON NUT

2шт.

16

87670762

BOLT,Hex, M8 x 90mm, Cl 10.9

4шт.

17

87682387

CARRIAGE BOLT,Short Sq Nk, M8 x 1.25 x 40mm, Cl 10.9

2шт.

18

86566990

CABLE TIE,292mm OAL x 4.8mm W

6шт.

19

3402330R2

LARGE HOSE

Heater Supply, Used Only On T4 Machines, To Def

1шт.

20

1321290C2

HEATER HOSE,15.50 mm ID x 127.00 mm

Heater Supply, Used Only On T4 Machines, To Def

1шт.

21

87107102

TEE,5/8" Barb

Only Used On T4 Machines, Replaced By 1301342C1 Straight Fitting

2шт.

21

1301342C1

FITTING

Used On T2 Machines W/O Def System

2шт.

22

84364076

SUPPORT

1шт.

23

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

24

301803R1

SHUT-OFF VALVE

2шт.

25

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

26

217-1035

REDUCER FITTING,1/2" - 14 Male NPTF x 3/8" - 18 Female NPTF

2шт.

27

84370843

REDUCER FITTING

1шт.

28

414083A1

VALVE

Schrader

1шт.

29

414081A1

CAP,M8 x 1 x 17.3mm OD x 21.1mm L

Valve

1шт.
