Запчасти Case IH 6130 (35.796.AF) - CHAFF SPREADER HYDRAULIC VALVE (35) - HYDRAULIC SYSTEMS

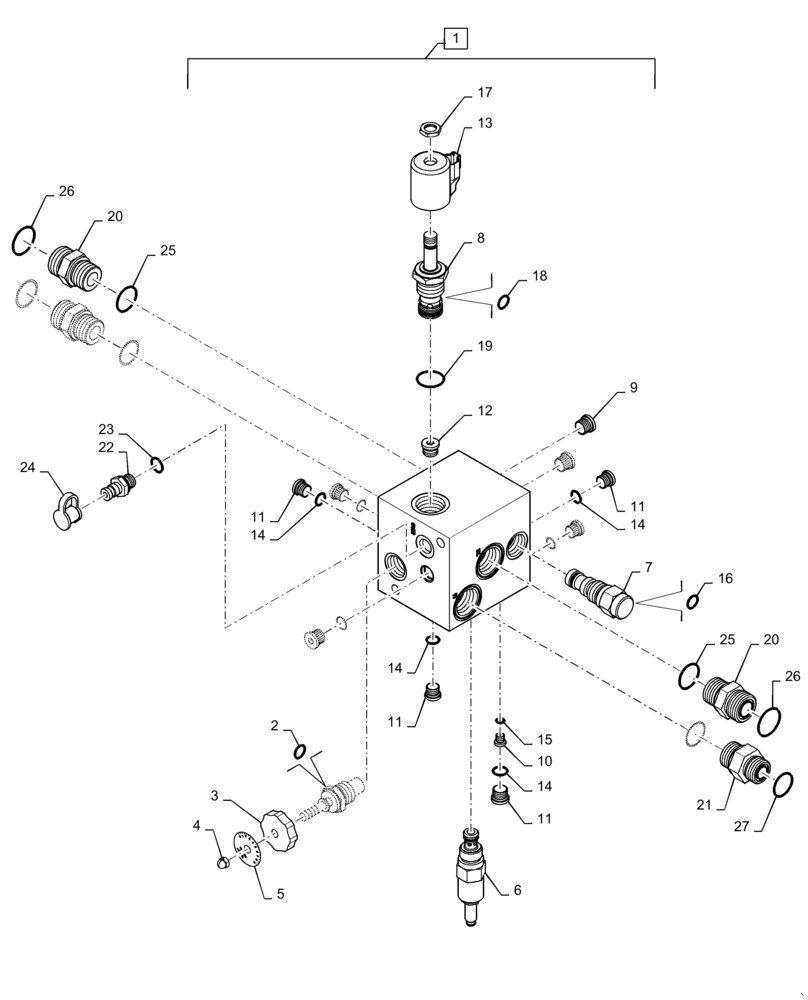

Схема запчастей Case IH 6130 - (35.796.AF) - CHAFF SPREADER HYDRAULIC VALVE (35) - HYDRAULIC SYSTEMS
22
16
14
20
14
2
3
5
11
4
7
19
9
27
14
8
26
6
12
13
23
24
11
18
21
11
15
10
25
20
14
1
25
26
17
11

Артикул

Название

Примечание

Количество

1

87619388

HYDRAULIC VALVE

Spreader, Incl 2 - 19

1шт.

2

86508168

SEAL KIT

Flow Regulator

1шт.

3

87447534

KNOB

Rotary

1шт.

4

86505844

NUT,Acorn, #10-32

1шт.

5

87319002

DECAL

Knob

1шт.

6

299075A1

VALVE, PRESSURE RELI

Control Valve

1шт.

7

87031239

HYDRAULIC VALVE

Pressure Sensing

1шт.

8

86514793

SOLENOID VALVE

Control Valve

1шт.

9

87035062

PLUG,Hex, 1/2"-20 ORB

4шт.

10

87026245

ORIFICE

Plug

1шт.

11

9625178

PLUG,9/16" - 18 ORB

6шт.

12

87434021

PLUG

Orifice

1шт.

13

87623908

COIL ASSY.

Solenoid

1шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.

15

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

16

87024936

SEAL KIT

Pressure Sensing Valve

1шт.

17

195683A1

JAM NUT,1/2"-20

1шт.

18

86514794

SEAL KIT

Solenoid

1шт.

19

87434021

PLUG

O-Ring

1шт.

20

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

3шт.

21

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

1шт.

22

178889A1

DIAGNOSTIC COUPLER

Diagnostic Coupler

1шт.

23

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

24

H434163

DUST CAP

Diagnostic Coupler

1шт.

25

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

4шт.

26

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

27

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Выбрано товаров: 27
