Запчасти Case IH 6130 (35.359.AE[02]) - VALVE, SEPARATOR, UNLOADING TUBE, REGULATOR, FILTER (35) - HYDRAULIC SYSTEMS

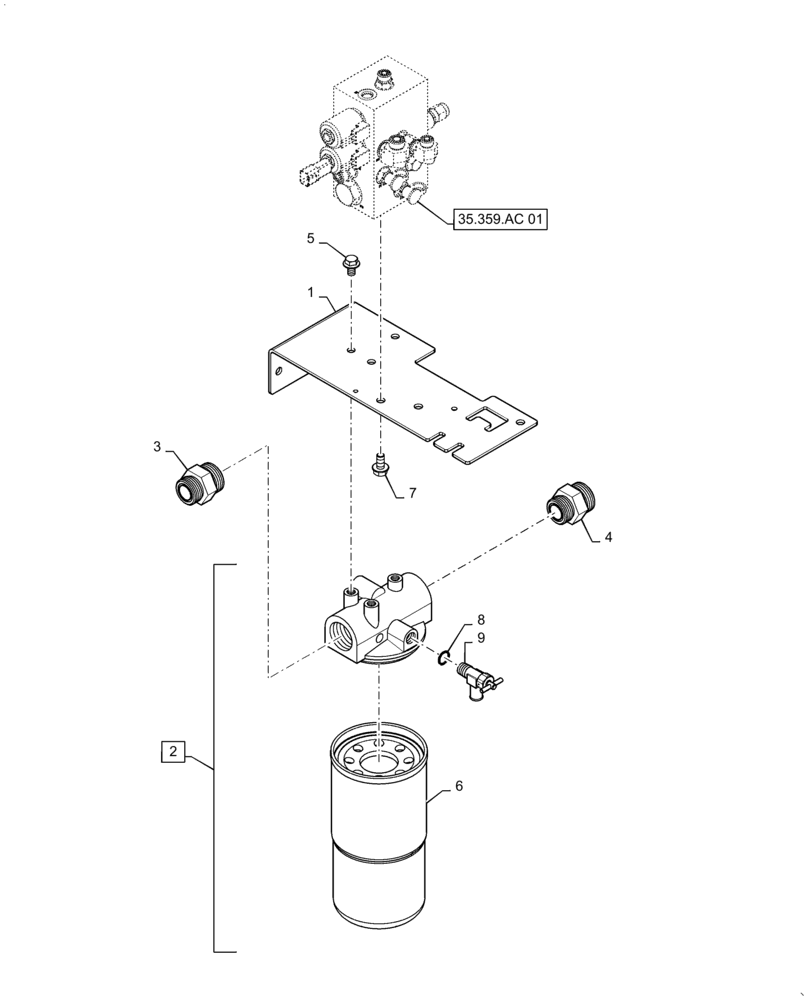

Схема запчастей Case IH 6130 - (35.359.AE[02]) - VALVE, SEPARATOR, UNLOADING TUBE, REGULATOR, FILTER (35) - HYDRAULIC SYSTEMS
4
2
9
6
5
3
7
1
8
35.359.ac 01

Артикул

Название

Примечание

Количество

1

84160487

BRACKET

Return Filter

1шт.

2

87689482

FILTER ASSY

Hydraulic Return, Incl 6, 8, 9

1шт.

3

9847247

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

1шт.

4

9840325

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

1шт.

5

87021006

BOLT,M10 x 26.4mm, Cl 10.9

3шт.

6

1329214C1

HYDRAULIC OIL FILTER

Hydraulic Return

1шт.

7

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

8

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

1шт.

9

301803R1

SHUT-OFF VALVE

1шт.

Выбрано товаров: 9
