Запчасти Case IH 6130 (35.359.AB[03]) - VALVE SECTION, MAIN DISTRIBUTOR, STACK VALVE (35) - HYDRAULIC SYSTEMS

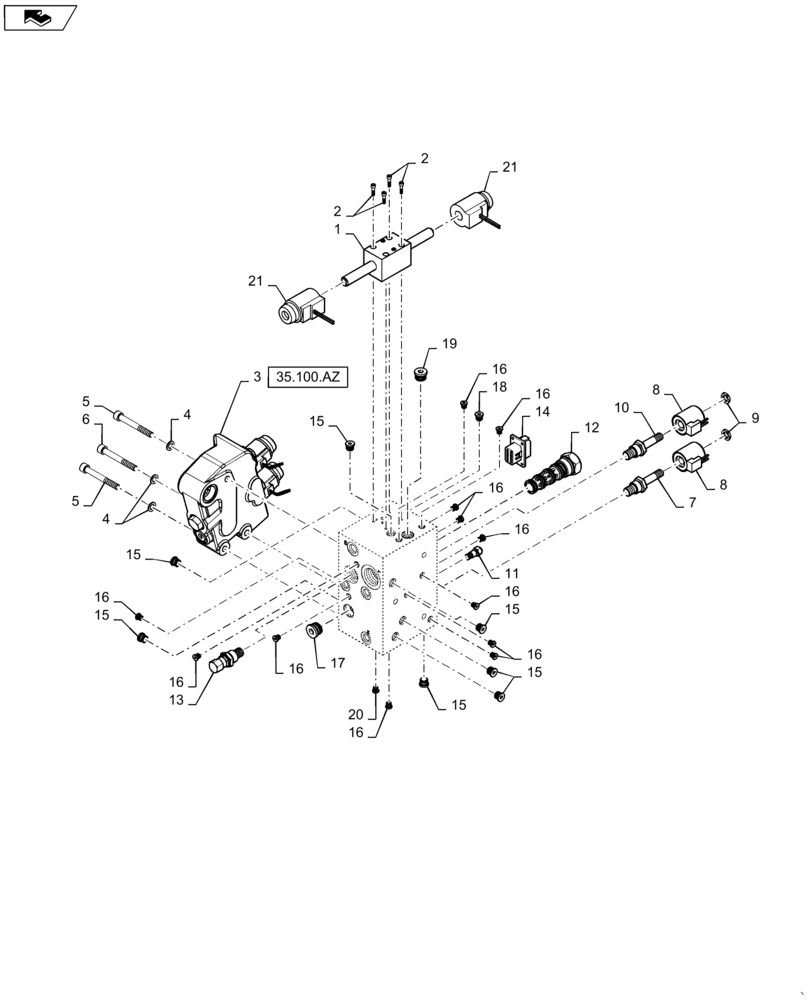

Схема запчастей Case IH 6130 - (35.359.AB[03]) - VALVE SECTION, MAIN DISTRIBUTOR, STACK VALVE (35) - HYDRAULIC SYSTEMS
15
4
16
16
16
8
13
16
9
4
35.100.az
2
16
21
15
5
14
3
1
5
15
10
20
17
8
2
11
15
16
16
6
16
16
7
12
19
18
15
21
16
15

Артикул

Название

Примечание

Количество

1

87434014

CONTROL VALVE

3 Position, 4 Way

1шт.

2

280160

HEX SOC SCREW,#10 - 32 x 3/4"

4шт.

3

87648197

CONTROL VALVE

Feeder Lift

1шт.

3

87648197R

REMAN-HYD VALVE

1шт.

3

87648197C

CORE-VALVE HYD

Return Number

1шт.

4

86625251

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

5

84549789

BOLT,M10 x 1.5 x 80mm, Cl 12.9

Hex Socket, M10 x 80mm, 12.9

2шт.

6

84557167

SCREW

Hex Socket, M10 x 100mm, 12.9

1шт.

7

191121A1

VALVE

2 Way, 2 Position, Normally Closed

1шт.

8

86995302

SOLENOID

Coil

2шт.

9

195683A1

JAM NUT,1/2"-20

2шт.

10

87281256

CARTRIDGE

2 Way, 2 Position W/Orifice

1шт.

11

190704A1

CHECK VALVE

1шт.

12

84569276

FLOW CONTROL VALVE

Priority

1шт.

13

87434000

VALVE PRESSURE RELIE

1шт.

14

323464A1

CONNECTOR, ELEC

12 Cavity Deutsch

1шт.

15

87035062

PLUG,Hex, 1/2"-20 ORB

7шт.

16

86632547

PLUG,Hex, 5/16"-24 ORB

12шт.

17

86625138

PLUG,7/18" - 14

1шт.

18

87434016

PLUG

Orificed W/Screen

1шт.

19

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

20

87434017

PLUG

Orificed, .030"

1шт.

21

188105A1

SOLENOID

Control Valve

2шт.

Выбрано товаров: 23
