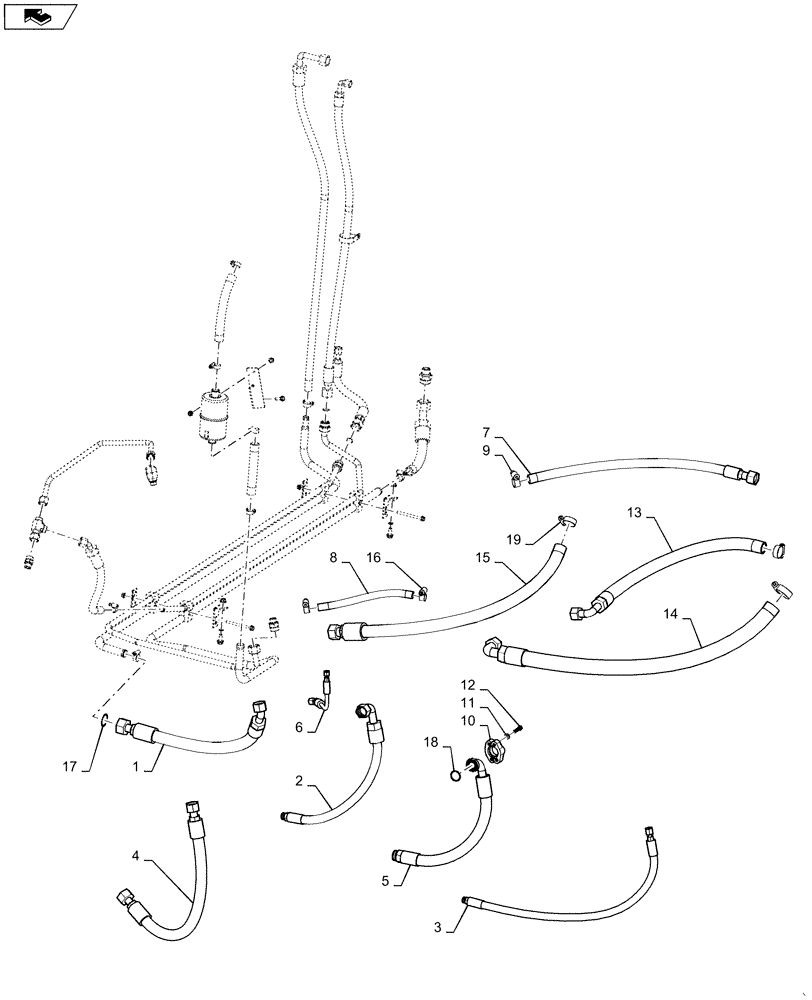

Запчасти Case IH 6130 (35.300.BC [03]) - HYDRAULIC SYSTEM, ENGINE, HOSE (35) - HYDRAULIC SYSTEMS

1

84375784

HOSE ASSY.

Cooler Return

1шт.

2

84304550

HOSE ASSY.,19.05mm ID x 725mm L, SAE 100R6

Low Pressure Return

1шт.

3

84347774

HOSE ASSY.,12.7mm ID x 1090mm L, SAE 100R17

Air Screen Supply

1шт.

4

84347775

HOSE ASSY.,25.4mm ID x 1025mm L, SAE 100R17

Rear Return

1шт.

5

84355975

HOSE ASSY.,25.4mm ID x 685mm L, SAE 100R17

Main Supply

1шт.

6

84156311

HOSE ASSY.,6.35mm ID x 365mm L, SAE 100R17

Signal Pump To Tube

1шт.

7

84347773

HOSE ASSY.,25.4mm ID x 840mm L, SAE 100R4

Bypass

1шт.

8

87591072

HYDRAULIC HOSE,19.10 mm ID x 390.00 mm, SAE 30R2

1шт.

9

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

5шт.

10

86980728

COLLAR CLAMP

25mm Flange

2шт.

11

9618968

WASHER,0.41" ID x 0.78" OD x 0.1" Thk

.78" OD x .406" ID x .105"

4шт.

12

87564748

BOLT

3/8"-16 x 1 1/2", 8.8

4шт.

13

84223284

HOSE ASSY.,25.4mm ID x 800mm L, SAE 100R4

Charge Pump Return

1шт.

14

84348780

HOSE ASSY.,31.75mm ID x 1150mm L, SAE 100R4

PFC Return

1шт.

15

84156338

HYDRAULIC HOSE,31.75mm ID x 1125mm L, SAE 100R4

PFC Return

1шт.

16

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

18

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

19

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

3шт.
