Запчасти Case IH 6130 (35.300.BC [02]) - HYDRAULIC LINE, ENGINE, TUBE (35) - HYDRAULIC SYSTEMS

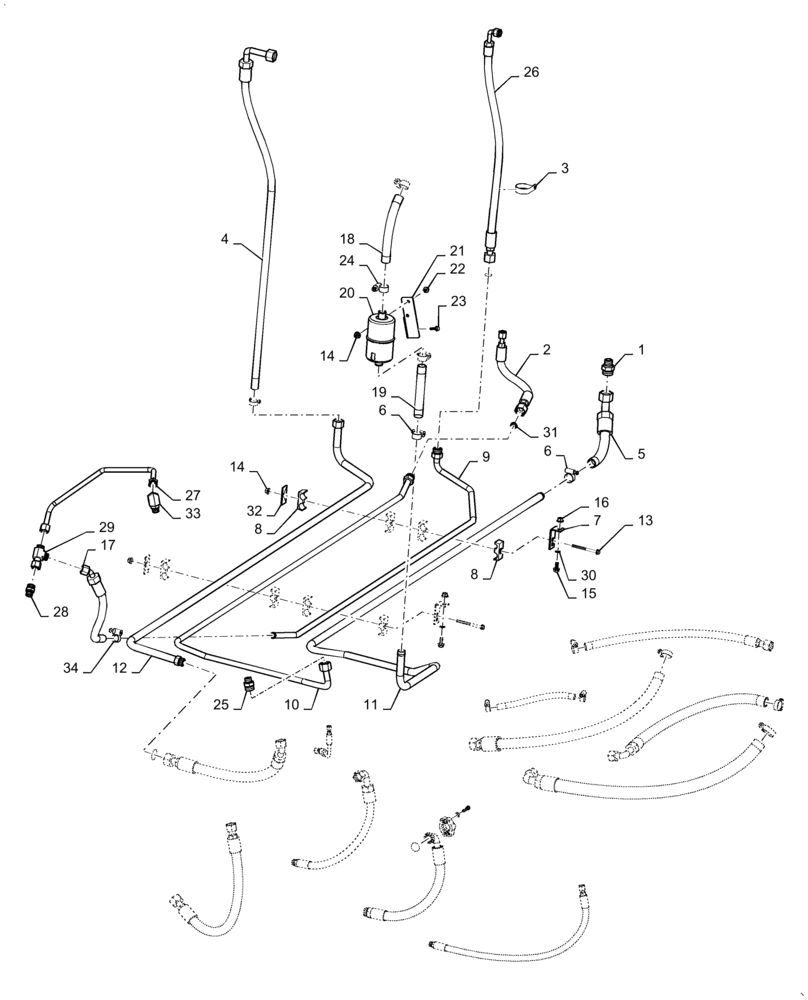

Схема запчастей Case IH 6130 - (35.300.BC [02]) - HYDRAULIC LINE, ENGINE, TUBE (35) - HYDRAULIC SYSTEMS
6
27
21
25
1
31
17
28
6
14
23
14
5
34
4
8
16
24
32
26
12
2
15
19
10
18
13
30
8
20
9
22
11
33
29
7
3

Артикул

Название

Примечание

Количество

1

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

1шт.

2

84355977

HOSE ASSY.,15.88mm ID x 375mm L, SAE 100R6

Supply

1шт.

3

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

4

84556774

HYDRAULIC HOSE,19.05mm ID x 1330mm L, SAE 100R4

Cooler Return

1шт.

5

84317535

HOSE ASSY.,25.4mm ID x 325mm L

Cooler Return

1шт.

6

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

1шт.

7

87549264

SUPPORT TUBE,112.4 mm L

2шт.

8

87000146

CLAMP

4шт.

9

84570331

HYD TUBE

PTO Cooler Return

1шт.

10

84347786

HYD TUBE

PTO Cooler Supply

1шт.

11

47419567

HYD TUBE

Cooler Supply

1шт.

12

84556772

HYD TUBE

Cooler Return

1шт.

13

87301686

BOLT,M8 x 108.1mm, Cl 10.9

Flange, M8 x 100mm, 10.9

2шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

15

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

16

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

17

84527698

HOSE ASSY.,19.05mm ID x 410mm L, SAE 100R6

PTO Cooler Return

1шт.

18

84156333

HOSE ASSY.

Return

1шт.

19

84156334

HOSE ASSY.

Return

1шт.

20

87684758

HYDRAULIC OIL FILTER,27.4mm Hose Barb, 27.4mm Hose Barb, 203.71mm L

Filter, 20 Micron

1шт.

21

84261109

BRACKET

Filter

1шт.

22

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

23

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

24

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

5шт.

25

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

1шт.

26

84356578

HOSE ASSY.,12.7mm ID x 1225mm L, SAE 100R6

Supply

1шт.

27

84425180

TUBE

PTO Cooler Return

1шт.

28

84420304

HYD CONNECTOR

Straight 16mm ORFS x M22 ORB

1шт.

29

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

1шт.

30

131-440

PUSH-ON NUT

5/16"

2шт.

31

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

32

87000230

PLATE

Hose Clamp

2шт.

33

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

1шт.

34

87016721

HOSE CLAMP,17.5mm - 31.7mm

1шт.

Выбрано товаров: 34
