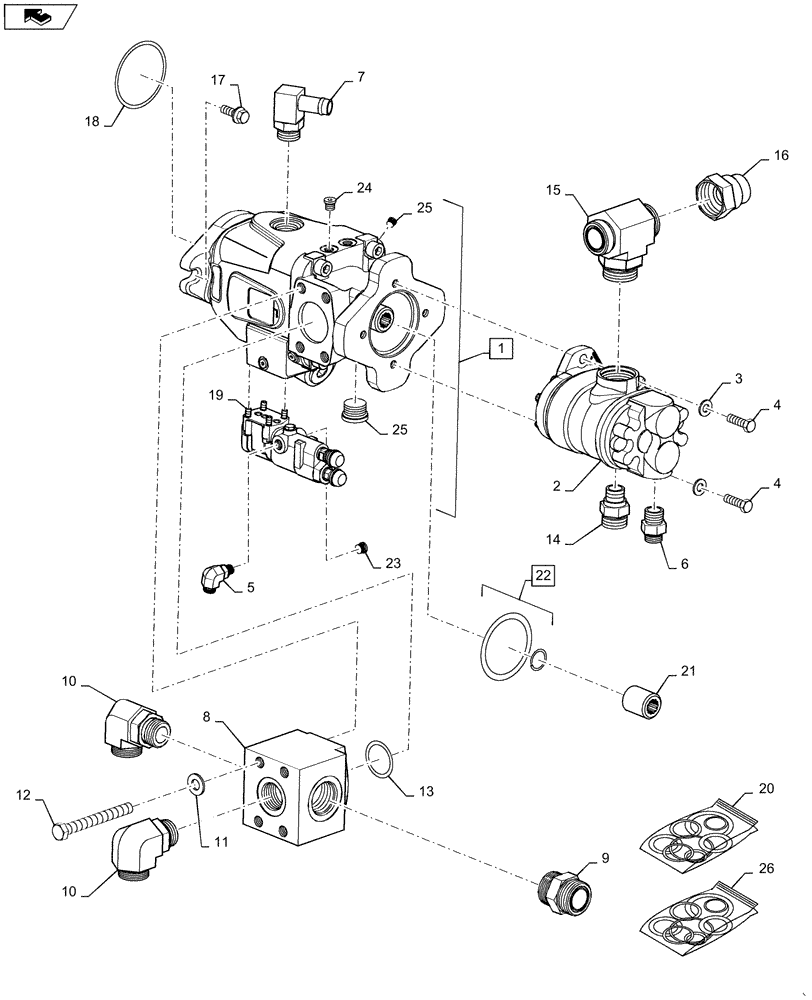

Запчасти Case IH 6130 (35.106.AD) - TANDEM GEAR PUMP, MOUNTING PARTS (35) - HYDRAULIC SYSTEMS

1

84148055

HYDRAULIC PUMP,62.3 CC

PFC W/ Thru Drive

1шт.

1

84148055R

REMAN-HYD PUMP

Reman Pump PFC W/ Thru Drive

1шт.

1

84148055C

CORE-HYDRAULIC PUMP

Core Return Number

1шт.

2

84148068

HYDRAULIC PUMP,27.7 CC

Tandem Gear

1шт.

3

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

4

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

5

87681199

90 ELBOW

90 Degree Adj, 1/4" ORFS x 5/8" ORB

1шт.

6

87610720

HYD CONNECTOR,7/8" - 14 ORB x 13/16" - 16 ORFS

1/2 ORFS-ORB 5/8

1шт.

7

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

1шт.

8

84178552

MANIFOLD

PFC

1шт.

9

9840325

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

1шт.

10

9846955

90 ELBOW,1-7/16"-12 ORFS x 1-5/16"-12 ORB

90 Degree Adj, 1 7/16" ORFS x 1 5/16" ORB

2шт.

11

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

12

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

4шт.

13

86637769

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

14

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

1шт.

15

84302526

HYD CONNECTOR

1 11/16" ORFS x 1 5/8" ORB

1шт.

16

201-118

REDUCER,1-7/16" - 12 Male ORFS x 1-11/16" - 12 Male ORFS

1шт.

17

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

To PTO

2шт.

18

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

Between PFC/Tandem And PTO

1шт.

19

84193573

KIT

PFC Pump

1шт.

20

87585824

SEAL KIT

Kit, PFC Pump, Services 1

1шт.

21

86566800

COUPLING

11 Tooth

1шт.

22

238-6042

O-RING,0.07" Thk x 3.239" ID, -42, Cl 6, 90 Duro

1шт.

23

278548

PLUG,Hex, 7/16"-20 ORB

3шт.

24

86632547

PLUG,Hex, 5/16"-24 ORB

3шт.

25

9841223

PLUG,1-1/16" - 12 ORB

1шт.

26

87025563

SEAL KIT

Tandem Pump, Services 2

1шт.
