Запчасти Case IH 6130 (35.100.AZ) - VALVE, FEEDER, LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

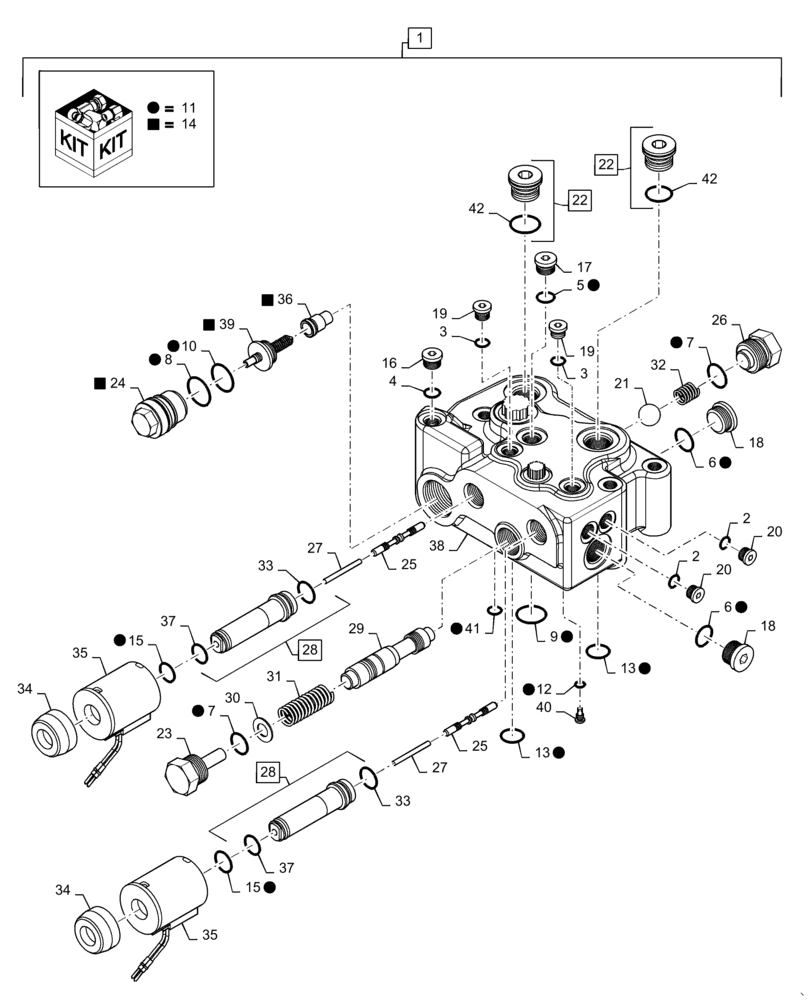

Схема запчастей Case IH 6130 - (35.100.AZ) - VALVE, FEEDER, LIFT CYLINDER (35) - HYDRAULIC SYSTEMS
33
18
19
36
42
11
22
19
13
32
6
14
7
11
27
11
35
11
15
10
28
15
5
20
3
40
11
37
11
9
14
14
42
38
6
25
21
11
4
39
11
22
2
34
29
41
3
1
11
20
25
17
11
11
33
11
14
2
26
31
37
23
8
24
12
34
18
11
14
16
11
11
35
27
13
28
7
11
30

Артикул

Название

Примечание

Количество

1

87648197

CONTROL VALVE

Feeder Lift, Incl 2 - 42

1шт.

2

385713R1

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

2шт.

3

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

4

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

5

129270

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

6

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

7

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

8

238-6023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 6, 90 Duro

1шт.

9

272285

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

1шт.

10

238-6022

O-RING,0.07" Thk x 0.989" ID, -22, Cl 6, 90 Duro

1шт.

11

243253A1

SEAL KIT

Incl 5 - 10, 12, 13, 15, 41

1шт.

12

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

13

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

2шт.

14

87643252

KIT

Meter Out, Incl 24, 36, 39

1шт.

15

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

2шт.

16

218-5208

PLUG,Hex, 1/2"-20 ORB

1шт.

17

218-5209

PLUG,Hex, 9/16"-18 ORB

1шт.

18

218-5210

PLUG,Hex, 3/4"-16 ORB

2шт.

19

218-5207

PLUG,Hex Soc, 7/16"-20 ORB

2шт.

20

218-5206

PLUG,Hex, 3/8"-24 ORB

2шт.

21

86637957

BALL,20mm OD, Gr 28

1шт.

22

221579A1

PLUG,M22 x 1.5 ORB

Incl 42

2шт.

23

188110A1

PLUG

1шт.

24

NSS

NOT SOLD SEPARAT

Plug, Meter Out, Incl in 14

1шт.

25

188104A1

SPOOL

Pilot, Header Lift

2шт.

26

188107A1

PLUG

Check, Header Lift

1шт.

27

188116A1

PIN,3.25mm OD x 39.93mm L

Actuating E.H. Servo

2шт.

28

188117A1

CARTRIDGE,72.25mm OAL

Core Single Acting E.H. Servo

2шт.

29

NSS

NOT SOLD SEPARAT

Meter In Spool, Incl in 1

1шт.

30

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

31

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

32

188114A1

SPRING

Check Header Lift

1шт.

33

NSS

NOT SOLD SEPARAT

O - Ring, Incl in 28

2шт.

34

188106A1

NUT

Coil, M20 x 1.0

2шт.

35

188105A1

SOLENOID

Coil

2шт.

36

NSS

NOT SOLD SEPARAT

Poppet, Meter Out, Incl in 14

1шт.

37

NSS

NOT SOLD SEPARAT

O - Ring, Incl in 28

2шт.

38

NSS

NOT SOLD SEPARAT

Valve Body, Incl in 1

1шт.

39

NSS

NOT SOLD SEPARAT

Servo Stem, Incl in 14

1шт.

40

373758A1

VALVE

Load Sense Check

1шт.

41

238-6111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 6, 90 Duro

1шт.

42

NSS

NOT SOLD SEPARAT

O - Ring, Incl in 22

2шт.

Выбрано товаров: 42
