Запчасти Case IH 6130 (33.202.AP) - BRAKE LINE, SERVICE (33) - BRAKES & CONTROLS

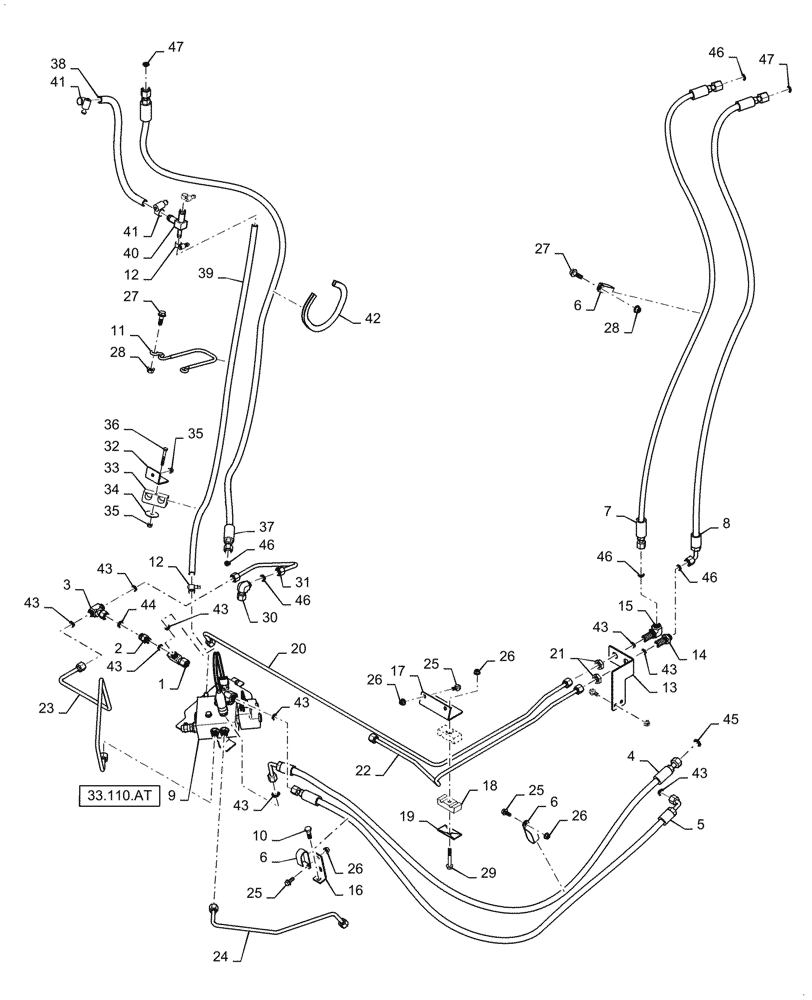

Схема запчастей Case IH 6130 - (33.202.AP) - BRAKE LINE, SERVICE (33) - BRAKES & CONTROLS
33.110.at
14
28
40
46
7
47
4
2
26
13
25
46
9
18
16
46
43
8
43
46
27
26
27
41
5
34
20
25
36
35
12
43
23
26
35
43
17
43
37
3
43
15
43
26
21
46
47
38
39
19
24
33
10
45
30
12
43
1
29
6
25
28
22
32
6
43
41
11
6
31
44
42

Артикул

Название

Примечание

Количество

1

277963A1

FITTING

Tee

1шт.

2

277961A1

VALVE

In-Line Check

1шт.

3

201-434

TEE,11/16"-18 ORFS x 11/16"-18 Sw Br

1шт.

4

87678372

HOSE ASSY.

Feeder Clutch Cylinder Retract

1шт.

5

87678374

HOSE ASSY.

Feeder Clutch Cylinder Extend

1шт.

6

470375C1

CLAMP,1", Insul, 3/8" Bolt

Tube

3шт.

7

84546427

HYDRAULIC HOSE,9.53mm ID x 1615mm L, SAE 100R17

Service Brake Left

1шт.

8

84546428

HYDRAULIC HOSE,9.53mm ID x 1590mm L, SAE 100R17

Service Brake Right

1шт.

9

87388129

VALVE, BRAKE

Parking

1шт.

10

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

11

232707A1

GUIDE

Steering Hoses

1шт.

12

86625041

HOSE CLAMP,11.2mm - 19.8mm

2шт.

13

87544715

SUPPORT

Brake Line

1шт.

14

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

1шт.

15

201-357

HYD CONNECTOR,90 Degree Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS

1шт.

16

87385244

BRACKET

Tube, Lower Cab

1шт.

17

87389849

SUPPORT ASSY.

Tube, Lower Cab

1шт.

18

86988833

CLAMP,9.52mm x 9.52mm, Dual Clamp Block

Tube

1шт.

19

87000230

PLATE

Tube Securing

1шт.

20

87388134

HYD TUBE,7.747mm ID x 0.375mm OD x 940, 466mm L

Service Brake Left

1шт.

21

87381287

LOCK NUT

11/16 In

2шт.

22

87544714

HYD TUBE,0.375" OD

Service Brake Right

1шт.

23

87678377

HYD TUBE,.375" OD

Park Brake Left

1шт.

24

87678376

TUBE,.375" OD

Park Brake Right

1шт.

25

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

6шт.

26

86507066

FLANGE NUT,M8 x 1.25, Cl 10

7шт.

27

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

3шт.

28

86050279

FLANGE NUT,M10 x 1.5, Cl 10

3шт.

29

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

1шт.

30

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

1шт.

31

87726278

HYD TUBE,.375" OD

Tow Check

1шт.

32

84129335

BRACKET

Tube Support

1шт.

33

183826C1

CLAMP

Tube

1шт.

34

86625239

WASHER,0.34" ID x 1.5" OD x 0.06" Thk

1шт.

35

9626558

FLANGE NUT,Flg, 1/4"-20

2шт.

36

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

37

84359850

HOSE ASSY.

Parking Brake/Feeder Clutch Supply

1шт.

38

S118576X

LARGE HOSE,15.88mm ID x 7620mm L

Drain, Sold By The Foot, Order 2 Feet and Cut To 14.5 In

1шт.

39

84260725

HOSE ASSY.,9.53mm ID x 1360mm L

Return

1шт.

40

84575664

TEE

5/8 In x 5/8 In x 5/8 In

1шт.

41

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

1.06 In x .56In

3шт.

42

87063C3

SEAL

Edge Trim

1шт.

43

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

8шт.

44

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

45

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

46

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

47

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

Выбрано товаров: 47
