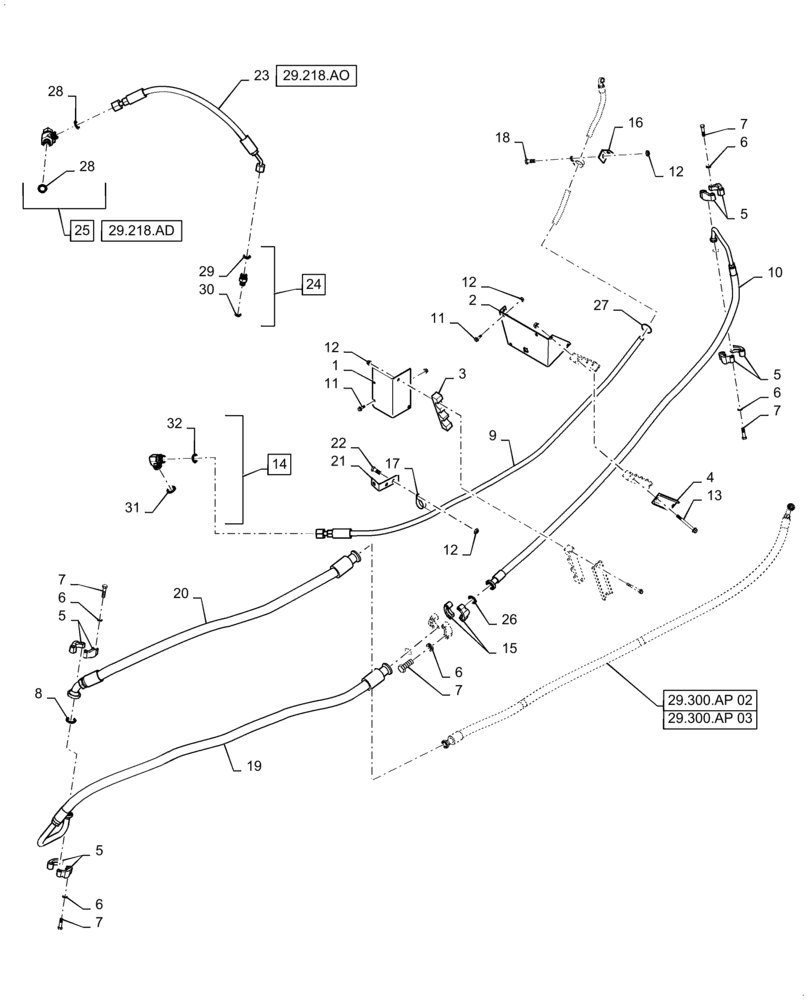

Запчасти Case IH 6130 (29.218.AS) - HOSE ASSY., DRIVE, HYDROSTATIC MOTOR (29) - HYDROSTATIC DRIVE

1

87727971

BRACKET

Hydro Clamp, Middle

1шт.

2

87609162

BRACKET

Rear Tube Support

1шт.

3

47374382

HOSE CLAMP

Half Clamp - Order 2 for Complete

4шт.

4

87727969

BRACKET

Channel, Clamp

1шт.

5

S97224

CLAMP

1" Split Flange

8шт.

6

87019792

WASHER,0.47" ID x 0.92" OD x 0.1" Thk

16шт.

7

87019709

BOLT,Hex, 7/16"-14 x 1 3/4", G8

16шт.

8

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

3шт.

9

84156341

HOSE ASSY.,25.4mm ID x 4550mm L, SAE 100R1

Drain

1шт.

10

84156344

HOSE ASSY.,31.75mm ID x 3165mm L, SAE 100R15

Reverse

1шт.

11

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

10шт.

13

87670762

BOLT,Hex, M8 x 90mm, Cl 10.9

2шт.

14

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

Incl 31 - 32

1шт.

15

86980733

CLAMP

Split Flange, 32mm

8шт.

16

84161205

BRACKET

Clamp Support

1шт.

17

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

18

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

19

84156345

HOSE ASSY.

Reverse Hydrostatic

1шт.

20

84156342

HOSE ASSY.,31.75mm ID x 1225mm L, SAE 100R15

Forward Hydrostatic

1шт.

21

87549264

SUPPORT TUBE,112.4 mm L

1шт.

22

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

23

87396619

HOSE ASSY.

2 Speed Motor Charge, Var - 425297, 425301

1шт.

24

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Var - 425297, 425301, Incl 29 - 30

1шт.

25

86729454

TEE

11/16"-18, Var - 425297, 425301, Incl 28

1шт.

26

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

3шт.

27

87108048

SECURING STRAP

Cinching, 330mm

1шт.

28

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

29

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

30

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

31

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

32

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
