Запчасти Case IH 6130 (29.100.AB[01]) - HYDROSTATIC MOTOR, VARIABLE SPEED, (105.5-85.9CC/REV) (29) - HYDROSTATIC DRIVE

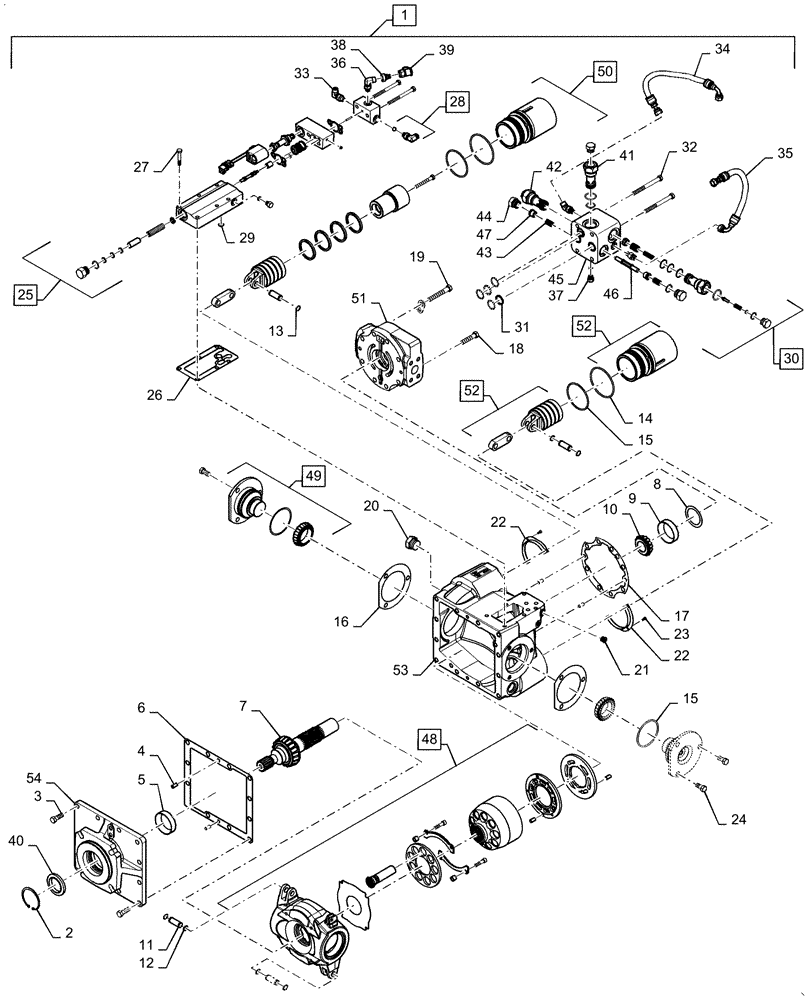

Схема запчастей Case IH 6130 - (29.100.AB[01]) - HYDROSTATIC MOTOR, VARIABLE SPEED, (105.5-85.9CC/REV) (29) - HYDROSTATIC DRIVE
40
15
29
52
28
34
23
46
44
19
11
31
22
35
54
20
38
45
14
18
32
8
6
49
50
2
39
21
43
36
37
22
17
47
42
26
10
51
52
25
33
15
16
12
24
13
27
48
53
7
4
5
30
1
3
9
41

Артикул

Название

Примечание

Количество

1

84599273

HYDRAULIC MOTOR

Variable, 2 Speed, Incl 2 - 47

1шт.

1

84599273R

REMAN-HYDROSTAT MOTO

Variable, 2 Speed, Incl 2 - 47

1шт.

1

84599273C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

2

34039

SNAP RING,2.50", Int, #250

1шт.

3

86505834

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8, Full Thd

12шт.

4

280651

PIN,7.86mm OD x 15.88mm L

7шт.

5

174125

BEARING CUP," ID x 93.264 mm OD x 23.813 mm

1шт.

6

84250219

GASKET,0.43mm Thk

Mounting Flange

1шт.

7

403147A1

SHAFT

Motor Drive

1шт.

8

142398C91

SHIM KIT

Incl .003", .005", .010", .015", .020", .030"

1шт.

9

530741R1

BEARING CUP

Output Shaft, RH

1шт.

10

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

Output Shaft, RH

1шт.

11

140766C1

PIN,14.22mm OD x 39.12mm L

Servo Linkage

2шт.

12

277043

SNAP RING,#56, Ext

4шт.

13

100-1375

SNAP RING,#75, Ext

4шт.

14

511526

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

2шт.

15

9617975

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

4шт.

16

142386C91

SHIM KIT

Trunion, Incl .002", .005", .010", .015", .025"

2шт.

17

92741C2

GASKET,0.38mm Thk

Rear Cover

1шт.

18

280541

BOLT,Hex, 7/16" - 14 x 2", Gr 8

2шт.

19

2652

BOLT

7/16"-14 x 2"

6шт.

20

163410

PLUG,1-1/16" - 12 ORB

1шт.

21

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

22

142408C1

RETAINER

Servo

2шт.

23

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

6шт.

24

50087

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5, Full Thd

6шт.

25

255825A1

REPAIR KIT

Motor Control Valve, Incl 55 - 56

1шт.

26

145337C1

GASKET

Pressure Control Valve

1шт.

27

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

6шт.

28

413431A1

KIT

2 Speed Motor Control Fittings

1шт.

29

255843A1

PORT

Control Valve

1шт.

30

87479010

VALVE

Motor Relief Manifold, Incl 37, 41 - 47

1шт.

31

140747C92

SEAL KIT

Valve Block Seal

1шт.

32

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

4шт.

33

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

Straight -4 ORFS x 7/16"-20 ORB

1шт.

34

201-331

ELBOW,45 Degree, 9/16"-18 x 7/16"-20. Adj, ORFS

1шт.

35

84600412

HYD TUBE

2 Speed Response, Upper Tube

1шт.

35

84600417

HYD TUBE

2 Speed Response, Lower Tube

1шт.

36

87681199

90 ELBOW

90 Degree -4 ORFS x 7/16" -20 ORB

1шт.

37

9672438

PLUG,7/16" - 20 ORB

Incl O-Ring

2шт.

38

190117A1

COUPLING

Diagnostic, 1/4"

1шт.

39

H434163

DUST CAP

1шт.

40

403145A1

SEAL

Incl Shaft Seal, Spacer, And Retaining Ring

1шт.

41

140761C1

VALVE PRESSURE RELIE

160 PSI

1шт.

42

84144765

VALVE PRESSURE RELIE

7 KSI

2шт.

43

145560C1

SPRING

Shuttle Valve

2шт.

44

86512512

PLUG,7/8" - 14 ORB

2шт.

45

NSS

NOT SOLD SEPARAT

Valve Block, Incl in 30

1шт.

46

NSS

NOT SOLD SEPARAT

Shuttle Valve, Incl in 30

1шт.

47

NSS

NOT SOLD SEPARAT

Bushing, Incl in 30

2шт.

48

NSS

NOT SOLD SEPARAT

Pistons/Swashplate, Incl in 1

1шт.

49

NSS

NOT SOLD SEPARAT

Hub, Incl in 1

1шт.

50

NSS

NOT SOLD SEPARAT

Servo, Incl in 1

1шт.

51

NSS

NOT SOLD SEPARAT

Rear Cover, Incl in 1

1шт.

52

NSS

NOT SOLD SEPARAT

Servo, Incl in 1

1шт.

53

NSS

NOT SOLD SEPARAT

Case, Incl in 1

1шт.

54

NSS

NOT SOLD SEPARAT

Front Cover, Incl in 1

1шт.

55

230594A1

SOLENOID

Coil, Incl in 25

1шт.

56

255834A1

CARTRIDGE

Solenoid, Incl in 25

1шт.

Выбрано товаров: 59
