Запчасти Case IH 6088 (05.100.03[01]) - FILTERS (05) - SERVICE & MAINTENANCE

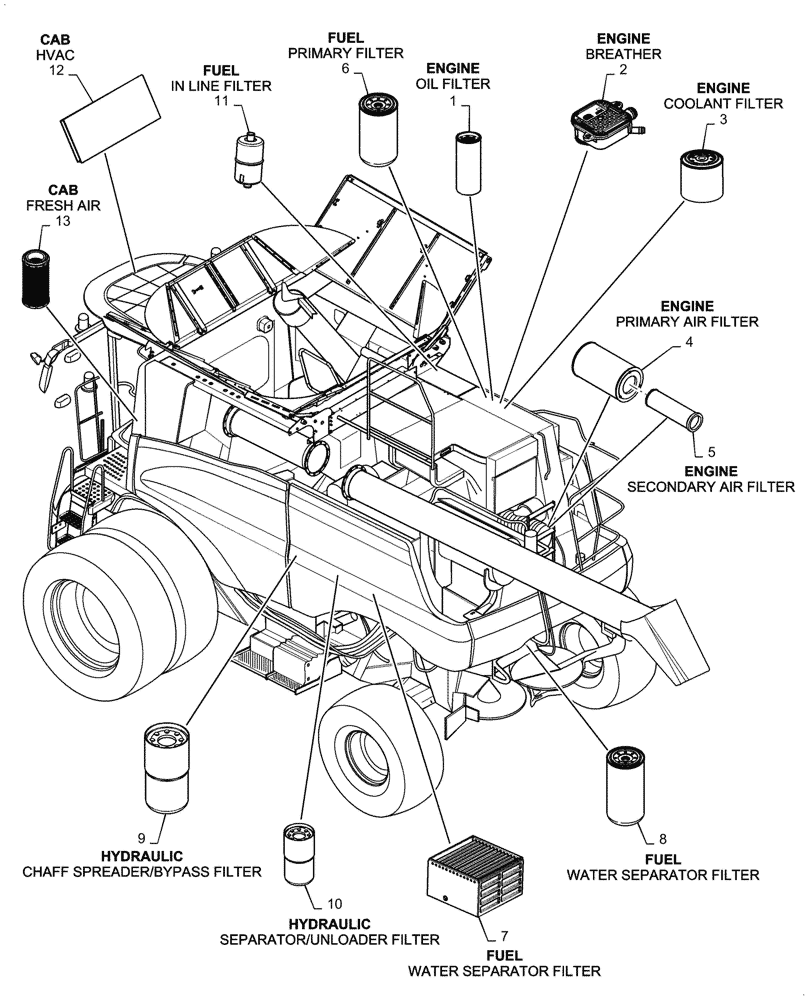

Схема запчастей Case IH 6088 - (05.100.03[01]) - FILTERS (05) - SERVICE & MAINTENANCE
2
6
12
11
5
8
3
9
4
7
13
10
1

Артикул

Название

Примечание

Количество

1

84485647

ENGINE OIL FILTER

Replace Every 300 Hours

1шт.

2

87539445

BREATHER

Engine Crankcase

1шт.

3

84605017

COOLANT FILTER

Coolant, Replace Every 300 Hours

1шт.

4

86998333

AIR FILTER,Primary, 172.3mm ID x 332.4mm OD x 555.2mm L, Pleatloc

Engine, Primary, Outer, Replace Every Year

1шт.

4

87682993

AIR FILTER,91mm ID x 164.5mm OD x 347.5mm L

Cab Fresh Air

1шт.

5

86998332

AIR FILTER,Secondary, 133.1mm ID x 175.1mm OD x 541.7mm L, Pleatloc

Engine, Secondary, Inner, Replace Every Year

1шт.

6

87360565

FUEL FILTER

Primary, Spin On, Replace Every 600 Hours

1шт.

7

84477370

FUEL FILTER,Water Separator, 89mm L x 89mm W x 55mm Thk, 30 Micron

Additional Separ Water Separator, Replace Every 600 Hours

1шт.

8

87307432

FUEL FILTER

Water Seperator, Replace Every 600 Hours

1шт.

9

1329214C1

HYDRAULIC OIL FILTER

Service Kit, Contains 2 Filters And 2 O-Rings, Chaff Spreader/ Hydraulic Bypass, Replace Every 1200 Hours

1шт.

10

86525899

HYDRAULIC OIL FILTER

Separator/ Unloader, Replace Every 1200 Hours

1шт.

11

87684758

HYDRAULIC OIL FILTER,27.4mm Hose Barb, 27.4mm Hose Barb, 203.71mm L

Inline, Replace Every 1200 Hours

1шт.

12

120486A2

FILTER

Cab, HVAC, Replace Every 400 Hours

1шт.

13

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Cab, External, Fresh Air, Replace Every 400 Hours

1шт.

Выбрано товаров: 14
