Запчасти Case IH 6088 (90.124.AN) - VAR - 425188, 425187, 425186 - SEAT SUSPENSION ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

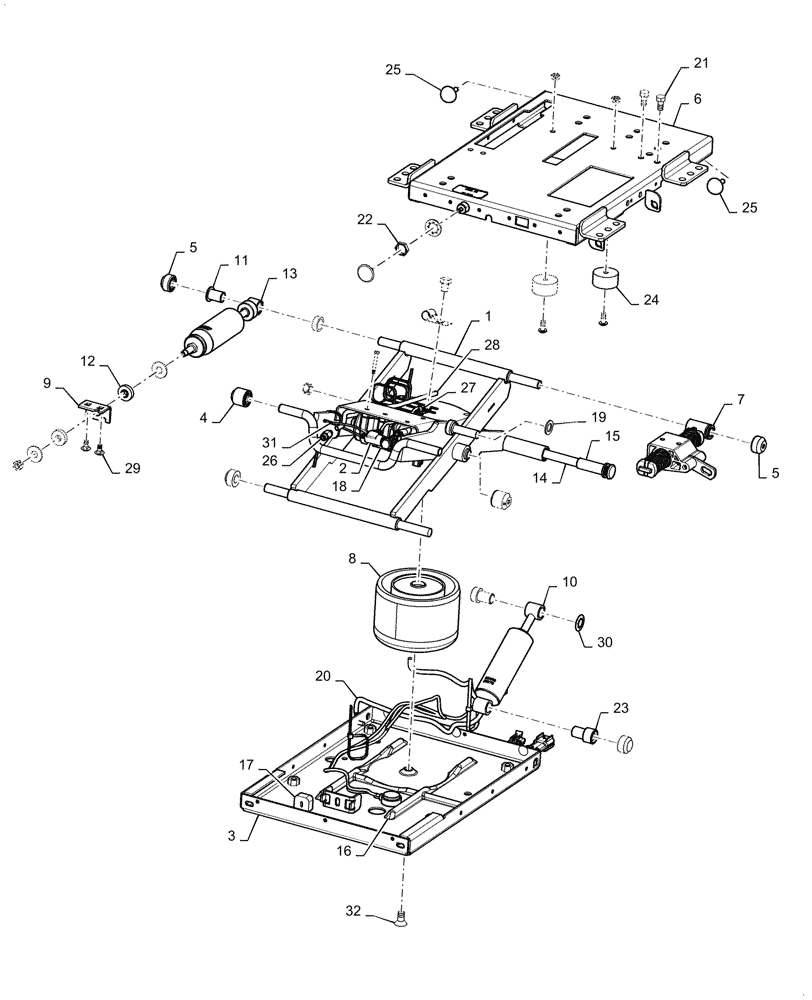

Схема запчастей Case IH 6088 - (90.124.AN) - VAR - 425188, 425187, 425186 - SEAT SUSPENSION ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
2
5
13
6
23
18
25
7
29
3
32
5
14
4
24
15
26
12
16
31
1
22
9
8
21
30
19
28
20
11
17
25
27

Артикул

Название

Примечание

Количество

1

1990643C1

FRAME ASSY

Seat Suspension

1шт.

2

358903A2

KIT

Compressor, 125, 12V

1шт.

3

226560A1

HOUSING

Lower

1шт.

4

180594A3

KIT

Roller & Bearing

2шт.

5

1981788C1

SHIFTER ROLLER

Narrow

1шт.

6

180591A1

PLATE

Upper Housing

1шт.

7

180592A1

SHOCK ABSORBER

Isolator Latch

1шт.

8

9845760

SPRING

Air Bag

1шт.

9

1981845C1

ANGLE

Shock Mounting

1шт.

10

1344250C2

KIT

Shock Absorber

1шт.

11

227546A1

KIT

Isolator Bushing

1шт.

12

A49679

BUSHING

Shock Mount

2шт.

13

A49543

SHOCK ABSORBER

Seat

1шт.

14

143786A1

SHAFT,308.9mm L

Bearing

1шт.

15

A49529

SHAFT

Bearing

2шт.

16

84155830

WIRE HARNESS

Seat Suspension, VAR - 425188

1шт.

16

84147460

WIRE HARNESS

Seat Suspension, VAR - 425187, 425186

1шт.

17

A45054

BUMPER,Neoprene

Seat

1шт.

18

84263680

CLAMP

Compressor

1шт.

19

A45519

WASHER

Spacer

1шт.

20

291280A1

KIT

Ground Strap

1шт.

21

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

2шт.

22

1981852C3

SWITCH

Air Control Valve

1шт.

23

1981846C1

CYLINDER END CAP

Upper Shock Sleeve Bearing

1шт.

24

180593A1

KIT

Bumper

2шт.

25

133422A1

BUMPER

Slide

2шт.

26

84267368

HYD CONNECTOR

Male, 5/32" OD Tube

1шт.

27

84263606

ELBOW

90°, 1/8" Male x 5/32" OD

1шт.

28

179026A1

TUBE

Convoluted

1шт.

29

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

2шт.

30

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

31

84267391

PLASTIC-RUBBER TUBE,0.16" OD x 32" L

1шт.

32

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

1шт.

Выбрано товаров: 33
