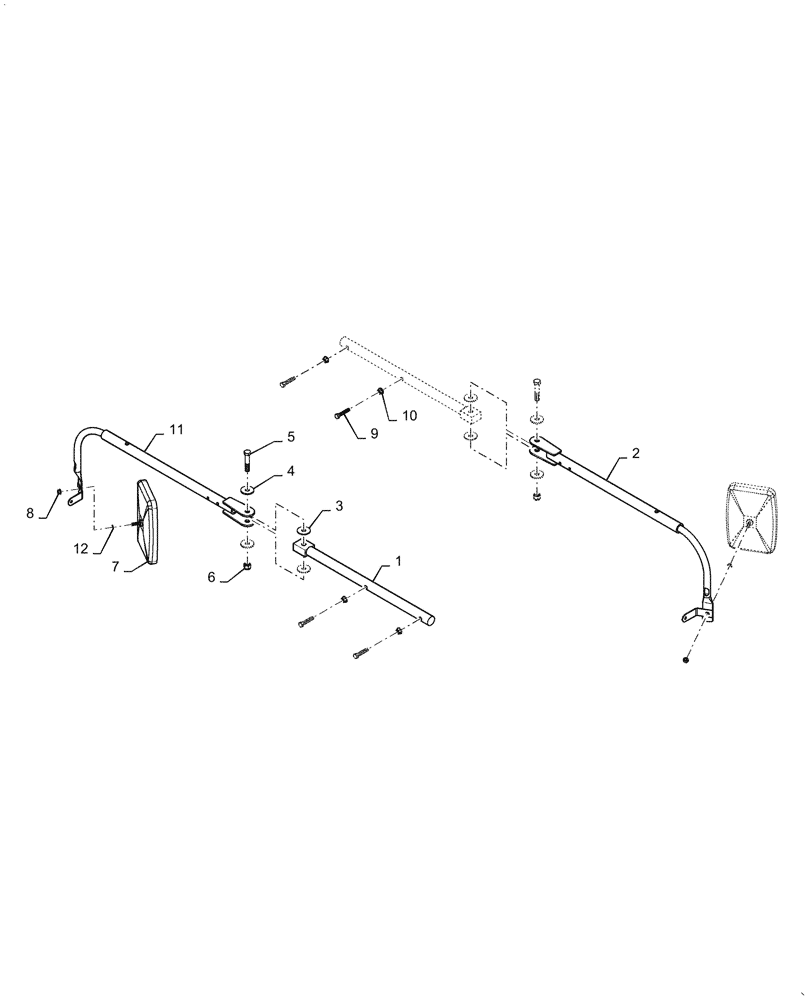

Запчасти Case IH 6088 (90.118.BM) - EXTERNAL MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87617888

SUPPORT ASSY.

Inner Mirror Support

2шт.

2

87715132

BRACKET

Outer Mirror, LH

1шт.

3

87646316

FRICTION WASHER

Mirror Pivot

4шт.

4

495-81030

WASHER,21/32" x 2" x .179"

4шт.

5

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

2шт.

6

412066

NUT,M16 x 2.0, Cl 8

2шт.

7

1283403C1

MIRROR

Side View

2шт.

8

122379A1

FLANGE NUT

Polyseal

2шт.

9

614-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8, Full Thd

4шт.

10

825-51412

FLANGE NUT,M12, Flg Ser

4шт.

11

87677607

BRACKET

Outer Mirror, RH

1шт.

12

280295

LOCK WASHER,10.11mm ID x 17.63mm OD x 1.02mm Thk

2шт.
