Запчасти Case IH 6088 (90.118.AX[03]) - PLATFORM EXTENSION, 62" (90) - PLATFORM, CAB, BODYWORK AND DECALS

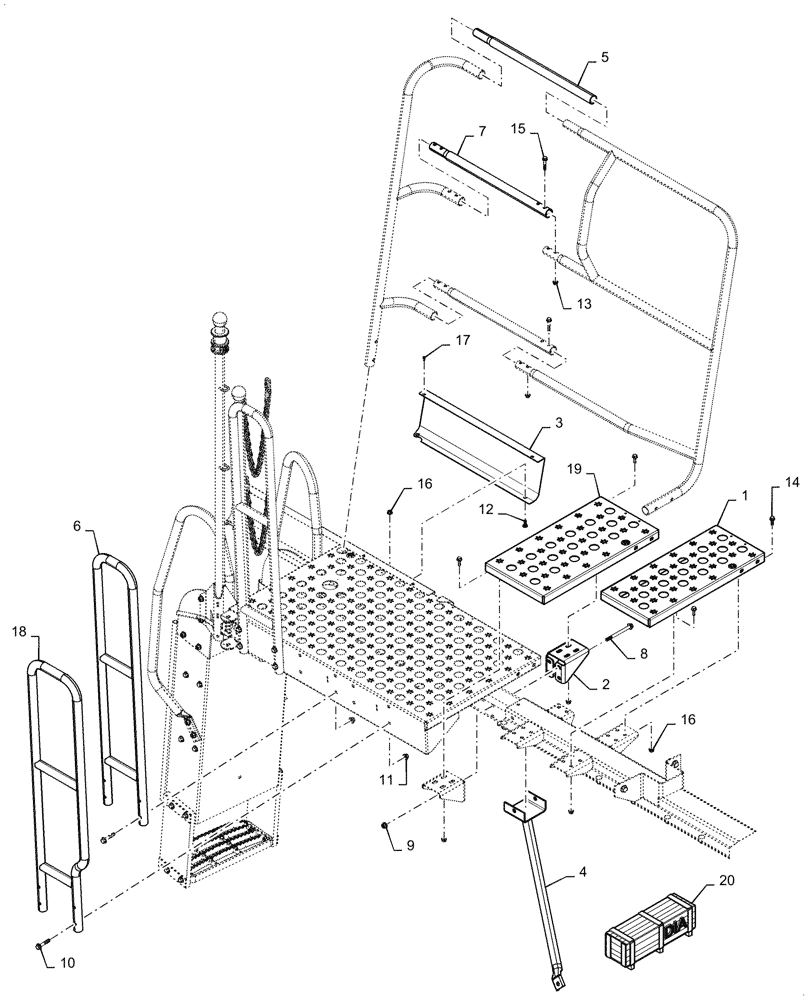

Схема запчастей Case IH 6088 - (90.118.AX[03]) - PLATFORM EXTENSION, 62" (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
17
5
3
13
8
1
16
11
2
19
10
20
4
18
6
7
16
14
15
9

Артикул

Название

Примечание

Количество

1

84158413

EXTENSION ASSY.

Deck, 10"

1шт.

2

84158444

SUPPORT ASSY.

Operator Deck

2шт.

3

84312271

TRIM PANEL

Extension, 22"

1шт.

4

143822A1

SUPPORT

Operator Deck

1шт.

5

84258860

RIGID TUBE

Top Handrail Extension

1шт.

6

87607104

HANDRAIL

Rear

1шт.

7

84258847

RIGID TUBE

Handrail Extension

2шт.

8

87681205

BOLT,Hex, M10 X 120, Class 10.9

4шт.

9

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

10

857-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

8шт.

11

86619802

FLANGE NUT,M10 x 1.5, Cl 8

8шт.

12

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

1шт.

13

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

14

857-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 10.9

8шт.

15

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

4шт.

16

86507066

FLANGE NUT,M8 x 1.25, Cl 10

9шт.

17

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

1шт.

18

84258898

HANDRAIL

Rear

1шт.

19

84258878

EXTENSION

Deck

1шт.

20

84259066

EXTENSION

DIA Kit, Platform Extension, 62", Incl 1 - 19, Inst Sheet 84182281

1шт.

Выбрано товаров: 20
