Запчасти Case IH 6088 (90.118.AX[02]) - PLATFORM EXTENSION, 50" (90) - PLATFORM, CAB, BODYWORK AND DECALS

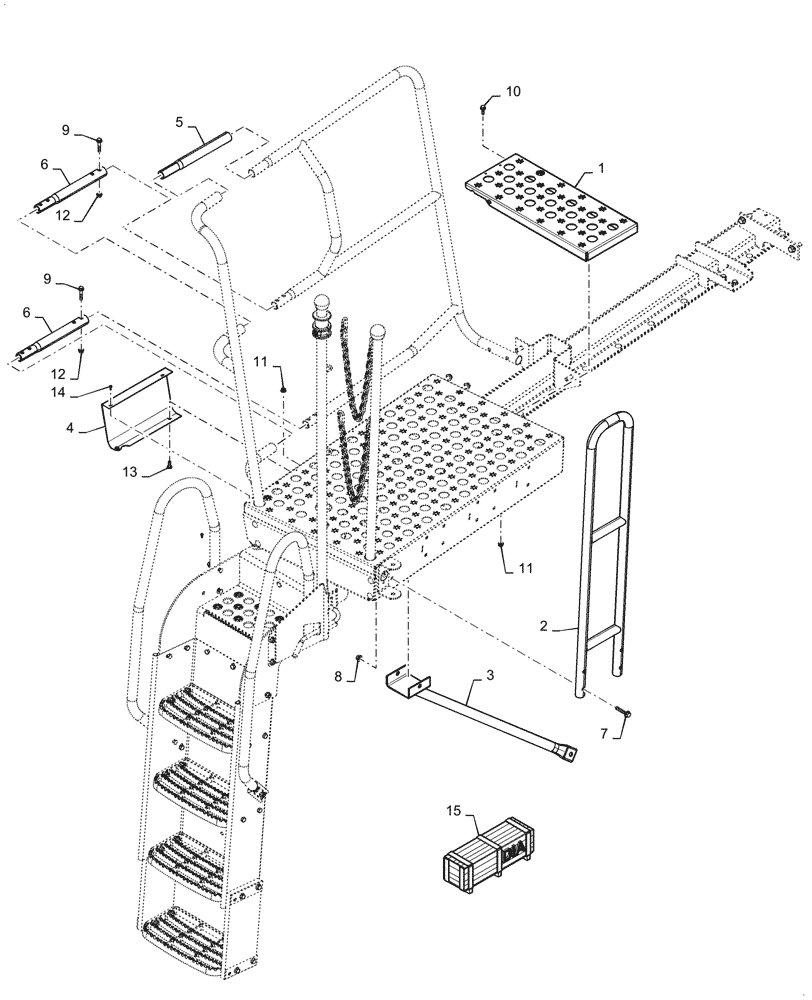

Схема запчастей Case IH 6088 - (90.118.AX[02]) - PLATFORM EXTENSION, 50" (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
10
11
3
6
7
9
15
14
12
4
9
2
12
8
11
6
5
13

Артикул

Название

Примечание

Количество

1

84158413

EXTENSION ASSY.

Deck, 10"

1шт.

2

87607104

HANDRAIL

Rear

1шт.

3

143822A1

SUPPORT

Operator Deck

1шт.

4

87665151

CHANNEL

Short Extension

1шт.

5

87547865

TUBE,29.15 mm ID x 28.2 - 33.35 mm OD x 324 mm L

Top Handrail Extension

1шт.

6

87619742

TUBE,28.2-33.35 mm OD

Handrail Extension

2шт.

7

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

4шт.

8

86619802

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

9

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

4шт.

10

857-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 10.9

4шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

12

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

13

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

1шт.

14

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

1шт.

15

87479322

DIA KIT, HARVESTER

Platform Extension, 50" Deck, Incl 1 - 14, Inst Sheet 84182281

1шт.

Выбрано товаров: 15
