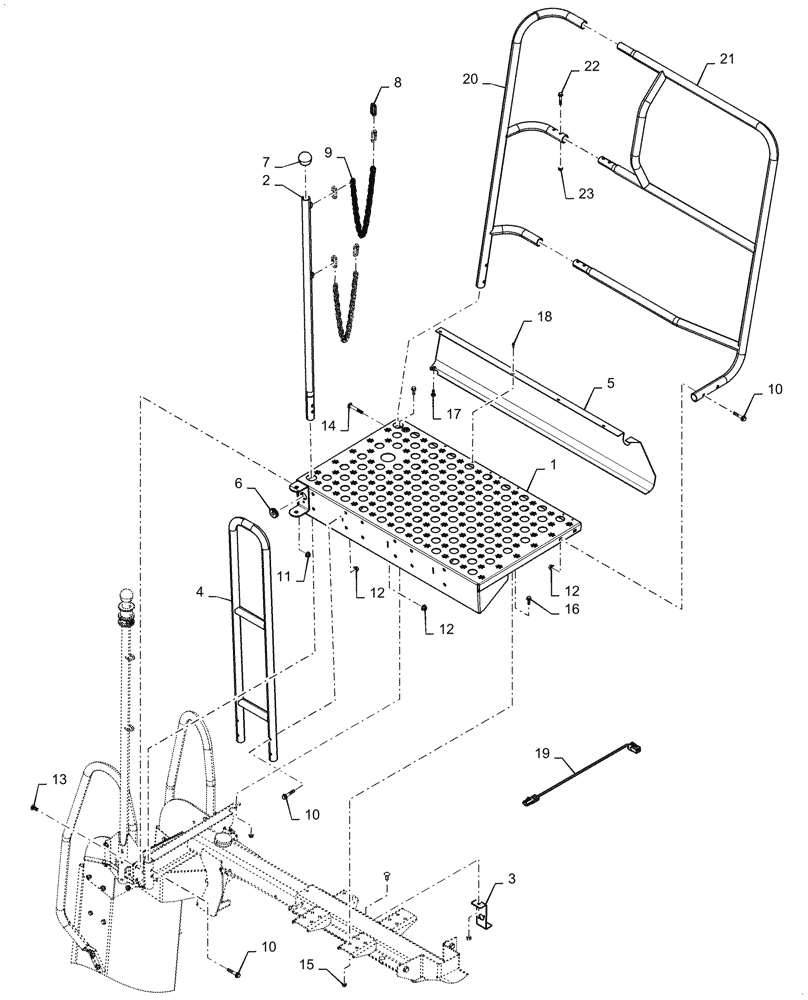

Запчасти Case IH 6088 (90.118.AX[01]) - PLATFORM, FRONT, 40" (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84312270

PLATFORM

Front, 40"

1шт.

2

87109394

GRAB RAIL

Post

1шт.

3

87392239

BRACKET

Aftercut Light, LH

1шт.

4

87607104

HANDRAIL

Rear

1шт.

5

87665147

CHANNEL

Front, LH

1шт.

6

87015294

GROMMET,1/2" ID x 1-1/2" OD x 0.438" Thk

1шт.

7

87109879

KNOB

Latch

1шт.

8

326376A2

LINK

Ladder Chain

5шт.

9

324546A1

CHAIN,628mm L

Ladder Gate

2шт.

10

857-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

8шт.

11

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

12

86619802

FLANGE NUT,M10 x 1.5, Cl 8

8шт.

13

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

2шт.

14

811-10070

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 70mm, Cl 8.8

2шт.

15

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

16

857-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 10.9

3шт.

17

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

1шт.

18

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

4шт.

19

87746547

WIRE HARNESS

Platform

1шт.

20

87604227

HANDRAIL

Front Outside

1шт.

21

87607485

HANDRAIL

Front, Long

1шт.

22

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

2шт.

23

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.
