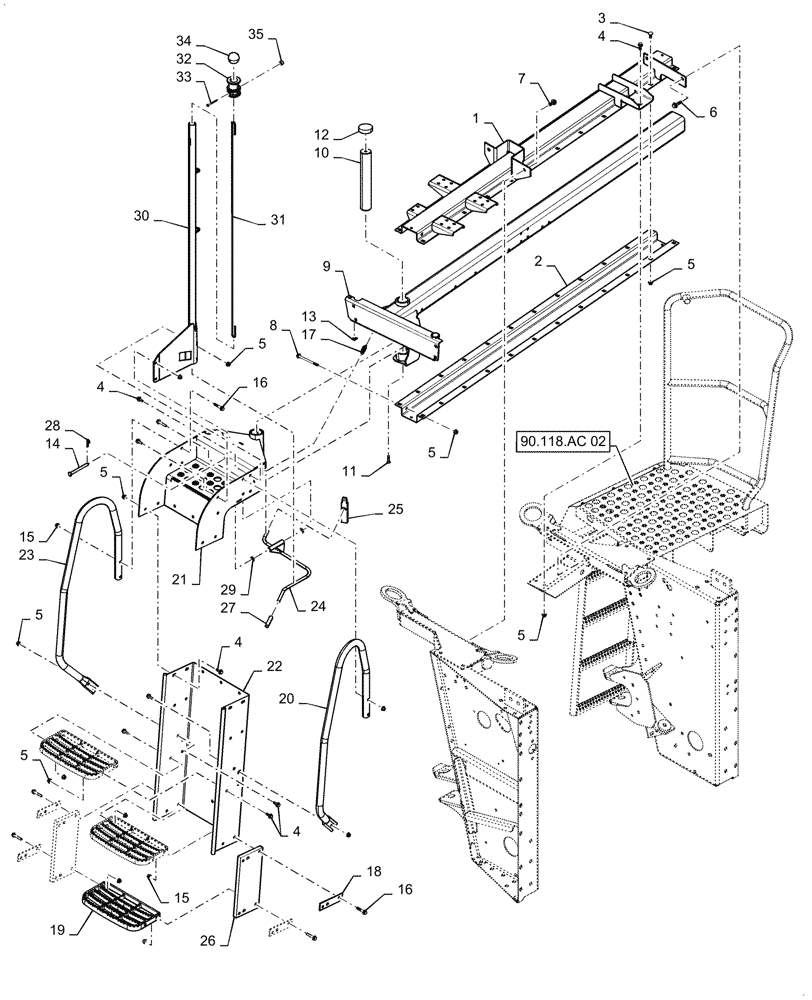

Запчасти Case IH 6088 (90.118.AC[01]) - OPERATORS LADDER, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84158411

CHANNEL

Operator Deck

1шт.

2

87665480

CHANNEL

Operator Deck

1шт.

3

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

24шт.

4

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

25шт.

5

86050279

FLANGE NUT,M10 x 1.5, Cl 10

50шт.

6

86705431

BOLT,Hex, M12 x 40mm, Cl 10.9

2шт.

7

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

2шт.

8

87681205

BOLT,Hex, M10 X 120, Class 10.9

1шт.

9

84311885

BEAM ASSY.

Operator Deck

1шт.

10

320946A1

PIN,50.81mm OD x 311.2mm L

Ladder Retention

1шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

12

324464A1

PLUG

Pivot Pin Cap

1шт.

13

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

1шт.

14

728-12120

CLEVIS PIN

12mm x 120mm

1шт.

15

86619802

FLANGE NUT,M10 x 1.5, Cl 8

12шт.

16

857-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

12шт.

17

84198440

SPRING

Extension

1шт.

18

87301177

PLATE

Belting Support

4шт.

19

87301185

STEP

Ladder

4шт.

20

84164335

HANDRAIL

Ladder, RH

1шт.

21

84165141

SUPPORT ASSY.

Ladder W/ Bushings

1шт.

22

87536623

CHANNEL

Ladder Rear

1шт.

23

84164338

HANDRAIL

Ladder, LH

1шт.

24

87703650

SPRING

Ladder Latch

1шт.

25

84195137

PIN,28.6mm OD x 142mm L

Ladder Latch

1шт.

26

87551810

CANVAS

Ladder Bottom Step Hanger

2шт.

27

324455A1

PROTECTOR

Ladder Handle Cap

1шт.

28

216698

COTTER PIN,0.125" OD x 1.75" L

1шт.

29

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

30

87536625

ARM ASSY.

Ladder Latch Post

1шт.

31

87536366

ADJUSTMENT ROD

Latch

1шт.

32

349015A1

KNOB

Latch

1шт.

33

840-1660

SCREW,Pan HD, M6 x 60mm, Cl 4.8

1шт.

34

87109879

KNOB

Ladder Latch Ball

1шт.

35

832-10406

NUT,M6 x 1, Cl 8

1шт.
