Запчасти Case IH 6088 (80.175.AG[03]) - AUXILIARY PUMP BELT DRIVE, UNLOADER (80) - CROP STORAGE/UNLOADING

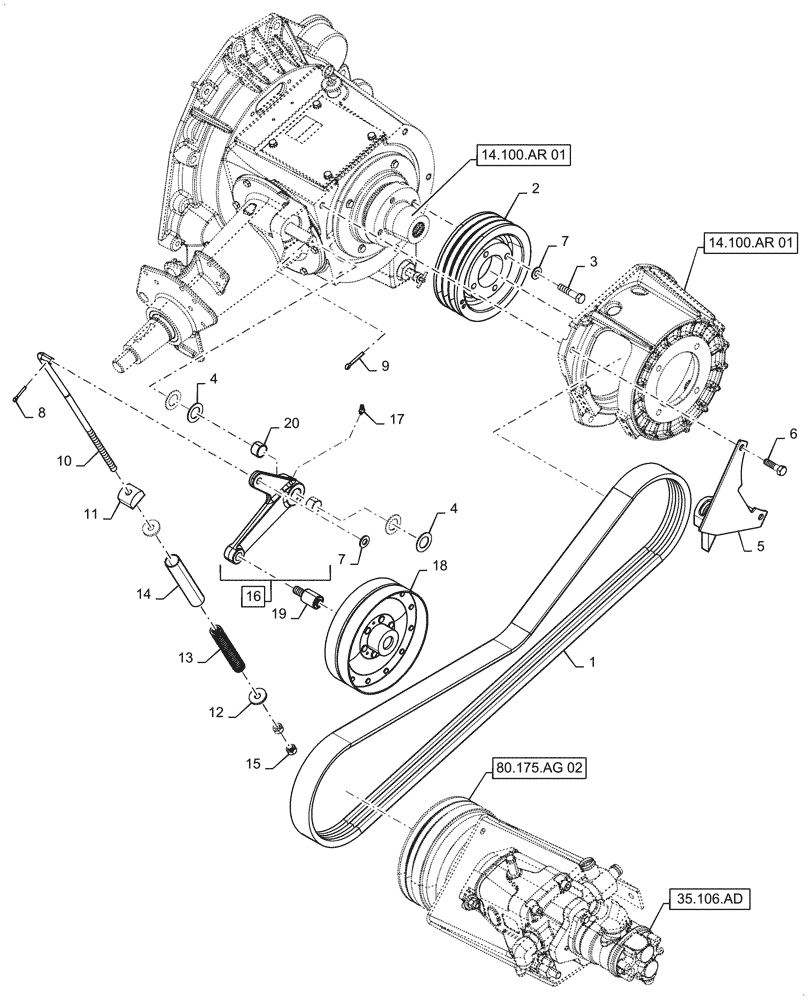

Схема запчастей Case IH 6088 - (80.175.AG[03]) - AUXILIARY PUMP BELT DRIVE, UNLOADER (80) - CROP STORAGE/UNLOADING
80.175.ag 02
11
4
18
8
9
12
19
6
1
4
14
16
2
7
7
15
17
5
20
10
3
13
14.100.ar 01
14.100.ar 01
35.106.ad

Артикул

Название

Примечание

Количество

1

87549556

V-BELT,16.00 mm W x 2675.00 mm L, 3 Ribs

Auxiliary Pump Drive

1шт.

2

87618176

PULLEY

PFC Pump Drive

1шт.

3

280620

BOLT,Hex, 1/2" - 13 x 3", Gr 8

4шт.

4

86624171

WASHER,1.03" ID x 1.75" OD x 0.06" Thk

4шт.

5

87614053

BRACKET

Idler Spring

1шт.

6

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

7

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

5шт.

8

432-1216

COTTER PIN,3/16" x 1"

1шт.

9

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

10

87732390

ROD

Belt Idler Tension

1шт.

11

87723912

PIVOT

Tension Rod

1шт.

12

86624148

WASHER,0.53" ID x 1.5" OD x 0.18" Thk

2шт.

13

87478118

COMPRESSION SPRING

Belt Tension

1шт.

14

84130033

SPACER, RING

Idler Spring

1шт.

15

425-108

NUT,1/2" - 13, Gr 5

2шт.

16

1330517C1

LEVER

Idler Arm, Incl 20

1шт.

17

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

18

84258238

PULLEY,203.2mm OD

Idler

1шт.

19

86976596

BEARING,30mm OD x 82.55mm L

Blade

1шт.

20

188068C1

BUSHING,25.4mm ID x 28.57mm OD x 19.05mm L

Idler Arm

2шт.

Выбрано товаров: 20
