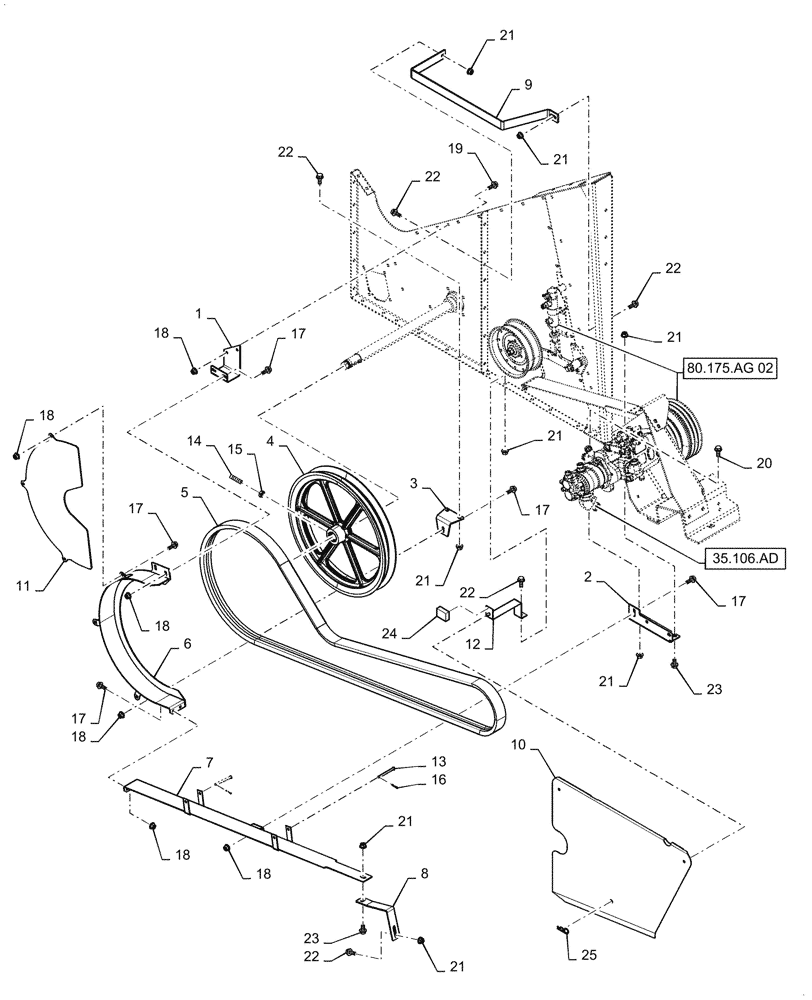

Запчасти Case IH 6088 (80.175.AG[01]) - UNLOADER DRIVER, BELT (80) - CROP STORAGE/UNLOADING

1

87682668

SUPPORT

Belt Guide Top

1шт.

2

87682672

SUPPORT

Belt Guide Center

1шт.

3

87682670

SUPPORT

Belt Guide Bottom

1шт.

4

87555276

PULLEY

Unloader, Driven

1шт.

5

87549557

V-BELT,22.33 mm W x 3868.00 mm L

Unloader Drive

1шт.

6

87682676

GUIDE

Belt, Front

1шт.

7

87682680

GUIDE

Belt, Rear

1шт.

8

87395751

SUPPORT

Belt Guide Rear

1шт.

9

87684242

STRAP

Shield

1шт.

10

87684244

BRACKET, SUPPORTING

Belt Shield

1шт.

11

87684246

COVER ASSY

Belt

1шт.

12

87555282

SUPPORT ASSY.

Shield

1шт.

13

439-1556

PIN,5/16" x 3 1/2"

2шт.

14

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

2шт.

15

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

16

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

17

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

9шт.

18

86507066

FLANGE NUT,M8 x 1.25, Cl 10

11шт.

19

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

20

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

21

86050279

FLANGE NUT,M10 x 1.5, Cl 10

11шт.

22

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

7шт.

23

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

24

187884C1

SEALING STRIP,50mm L

Foam

1шт.

25

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

1шт.
