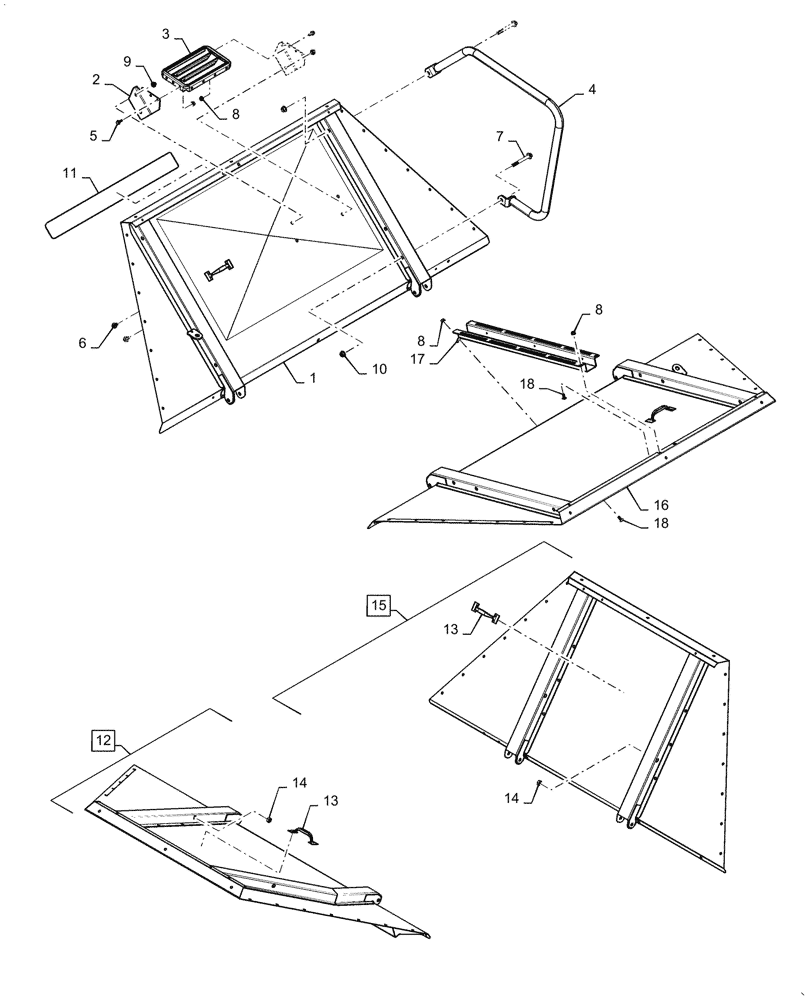

Запчасти Case IH 6088 (80.150.BG[04]) - GRAIN BIN EXTENSION, DOOR PANEL, 300 BU (80) - CROP STORAGE/UNLOADING

1

87735049

EXTENSION ASSY.

Rear, 32"

1шт.

2

87609690

BRACKET

Step

2шт.

3

1531337C1

STEP

Extension

1шт.

4

87648705

HANDLE

Grab

1шт.

5

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

6

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

4шт.

7

87032825

BOLT,Hvy Hex, M12 x 100mm, Cl 10.9

2шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

7шт.

9

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

10

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

11

86995792

PAD,125mm W x 1270mm L

4шт.

12

84367834

EXTENSION

LH, 32", Incl 13, 14

1шт.

13

706

HANDLE

Extension

2шт.

14

86619782

NUT,Weld, M12

2шт.

15

84367830

EXTENSION

RH, 32", Incl 13, 14

1шт.

16

87721662

EXTENSION ASSY.

Front, 32"

1шт.

17

87685904

BRACKET

Bin Level Sensor

1шт.

18

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

3шт.
