Запчасти Case IH 6088 (74.101.AF[01]) - CLEANING SYSTEM DRIVE HANGER ARM, RH (74) - CLEANING

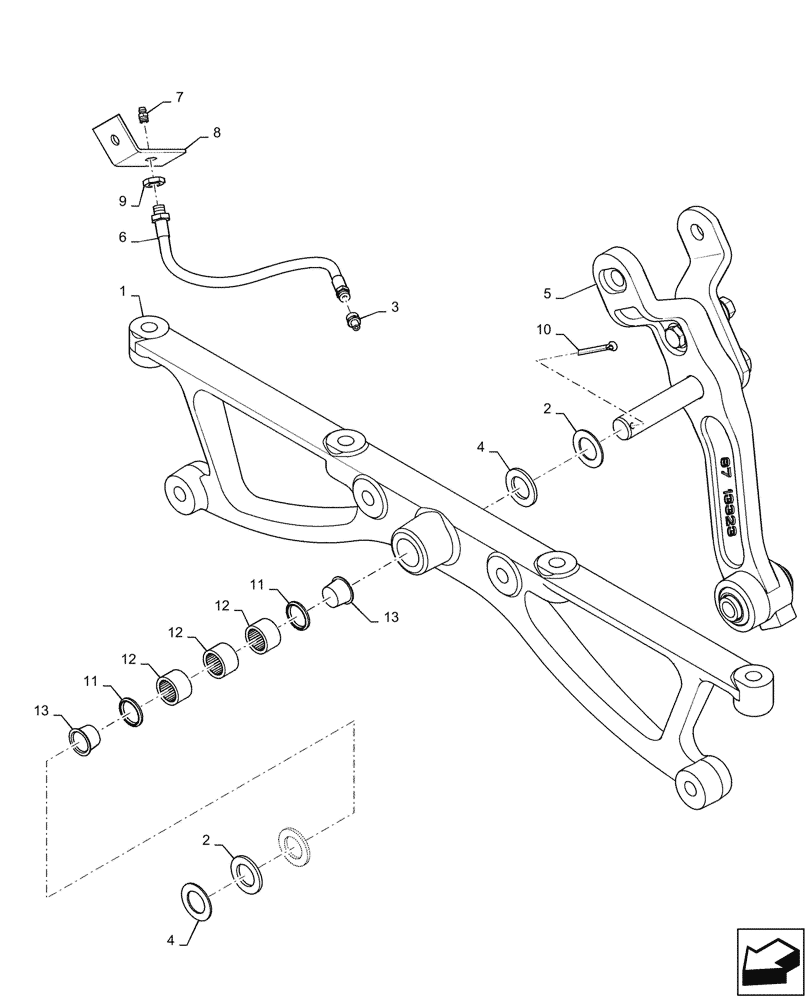

Схема запчастей Case IH 6088 - (74.101.AF[01]) - CLEANING SYSTEM DRIVE HANGER ARM, RH (74) - CLEANING
12
11
12
1
2
2
13
10
4
6
5
3
12
8
9
13
7
4
11

Артикул

Название

Примечание

Количество

1

84128519

PIVOT ASSY.

RH

1шт.

2

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

3шт.

3

219-418

ADAPTER,1/4"-1/8 NPTF

1шт.

4

495-81056

WASHER,29/32" x 1 1/2" x 3/64

2шт.

5

84128533

LEVER

RH

1шт.

6

937773R91

HOSE,3.56 mm ID x 304.80 mm,

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

8

178960C1

BRACKET

Steering, Rear

1шт.

9

F53473

LOCK NUT,1/8-27 NPSM

1/8" - 27

1шт.

10

432-1228

COTTER PIN,3/16" x 1 3/4"

1шт.

11

372756R91

OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk

Front Hanger

2шт.

12

551139R91

BEARING, NEEDLE

28.5mm OD

3шт.

13

353-79

PLUG

.930" Tapered

2шт.

Выбрано товаров: 13
