Запчасти Case IH 6088 (73.335.AC[04]) - CHAFF SPREADER, DRIVE, PRE-UPGRADE (73) - RESIDUE HANDLING

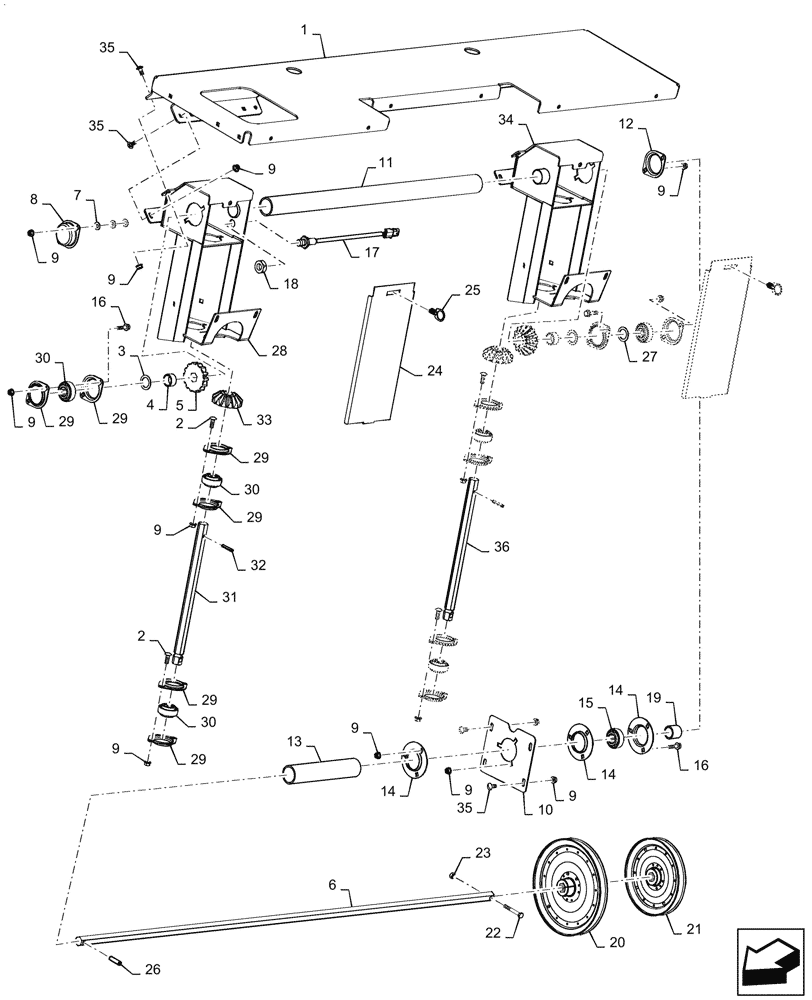

Схема запчастей Case IH 6088 - (73.335.AC[04]) - CHAFF SPREADER, DRIVE, PRE-UPGRADE (73) - RESIDUE HANDLING
14
2
4
8
15
14
32
25
33
22
16
7
21
17
30
19
9
30
3
9
9
6
5
31
35
10
29
9
29
20
29
9
26
13
16
23
1
9
9
9
18
12
14
11
34
24
35
28
9
29
29
30
36
35
2
9
29
27

Артикул

Название

Примечание

Количество

1

87678466

SUPPORT

Fuel Tank Bottom

1шт.

2

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

8шт.

3

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

4шт.

4

87036414

SPACER,26.21mm ID x 31.75mm OD x 15.88mm L

2шт.

5

194194C1

GEAR

Spreader Drive

2шт.

6

87560898

SHAFT

Straw Spreader Cross

1шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

8

750092

COVER

1шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

33шт.

10

87596824

PLATE

Straw Spreader Bearing

1шт.

11

87363874

TUBE,40.9 mm ID x 48.3 mm OD x 754.7 mm L

Shaft Cover

1шт.

12

50591

FLANGE,52mm

Bearing

1шт.

13

87573762

TUBE,40.9 mm ID x 48.3 mm OD x 235 mm L

Shaft Cover

1шт.

14

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

3-Bolt

3шт.

15

87650438

BALL BEARING,22.25mm Hex x 52mm OD x 25.4mm W

Shaker Shaft

1шт.

16

87030775

BOLT,M8 x 38.1mm, Cl 10.9

7шт.

17

245193C2

SENSOR

MPH and RPM

1шт.

18

425-1512

JAM NUT,Jam, 3/4"-10, G5

1шт.

19

87034740

SPACER,26.64mm ID x 33.40mm OD x 30mm W

1шт.

20

87757148

PULLEY

Straw Spreader Drive, 10 Inch

1шт.

21

87757146

PULLEY

Straw Spreader Drive, 8 Inch

1шт.

22

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

23

9628098

NUT,M8 x 1.25, Cl 10

1шт.

24

87649537

BRACKET

Spreader Drive

2шт.

25

188029C1

LATCH

2шт.

26

87040620

LOCK PIN,9.53mm OD x 38.1mm L, Slotted

1шт.

27

495-81068

WASHER,1 1/32" x 1 1/2" x .030"

2шт.

28

87649413

BRACKET

Spreader Drive, Left Hand

1шт.

29

50591

FLANGE,52mm

Bearing

12шт.

30

87650438

BALL BEARING,22.25mm Hex x 52mm OD x 25.4mm W

Shaker Shaft

6шт.

31

87649495

SHAFT

Straw Spreader, Serial Range: -Y9G001486

2шт.

31

84163923

SHAFT

Straw Spreader, Start Serial: Y9G001486

2шт.

32

438-11624

ROLL PIN,6.35mm OD x 38.1mm L

, Serial Range: -Y9G001486

2шт.

32

637428

GROOVED PIN,6.35mm OD x 38.1mm L

, Start Serial: Y9G001486

2шт.

33

194194C1

GEAR

Spreader Drive

2шт.

34

87649415

BRACKET

Spreader Drive, Right Hand

1шт.

35

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

12шт.

36

87363874

TUBE,40.9 mm ID x 48.3 mm OD x 754.7 mm L

2шт.

Выбрано товаров: 38
