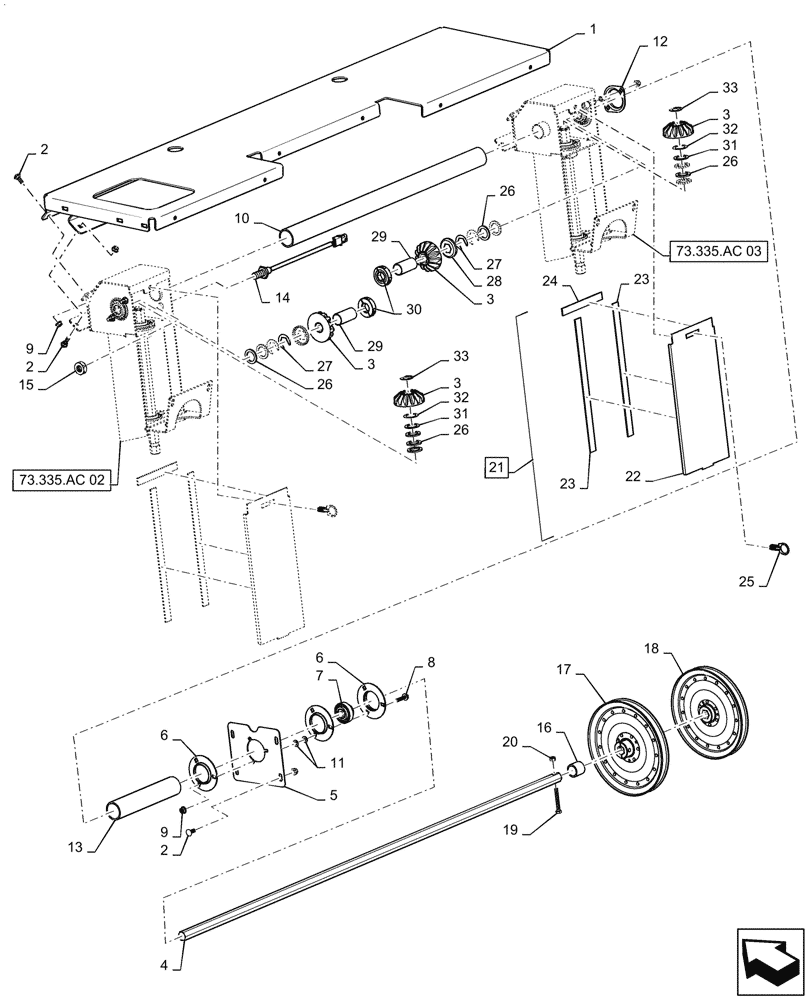

Запчасти Case IH 6088 (73.335.AC[01]) - SPREADER DRIVE (73) - RESIDUE HANDLING

1

87678466

SUPPORT

Fuel Tank Bottom, Dark Gray

1шт.

2

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

12шт.

3

84467465

GEAR

Bevel, Spreader Drive

4шт.

4

84426637

SHAFT

Straw Spreader Cross

1шт.

For Longer Shaft With 2 Holes Order 87560898 1482 mm has a hole on each end

1шт.

5

87596824

PLATE

Straw Spring Bearing, Dark Gray

1шт.

6

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

3шт.

7

87650438

BALL BEARING,22.25mm Hex x 52mm OD x 25.4mm W

1шт.

8

87030775

BOLT,M8 x 38.1mm, Cl 10.9

3шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

19шт.

10

87363874

TUBE,40.9 mm ID x 48.3 mm OD x 754.7 mm L

Shaft Cover

1шт.

11

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

12

50591

FLANGE,52mm

1шт.

13

87573762

TUBE,40.9 mm ID x 48.3 mm OD x 235 mm L

Shaft Cover

1шт.

14

245193C2

SENSOR

MPH and RPM Transmitter

1шт.

15

425-1512

JAM NUT,Jam, 3/4"-10, G5

1шт.

16

87034740

SPACER,26.64mm ID x 33.40mm OD x 30mm W

1шт.

17

87757148

PULLEY

Straw Spreader, 10", Dark Gray

1шт.

18

87757146

PULLEY

Straw Spreader, 8", Dark Gray

1шт.

19

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

20

9628098

NUT,M8 x 1.25, Cl 10

1шт.

21

84513521

SHIELD

Spreader Drive, Incl 22 - 24

2шт.

22

87649537

BRACKET

Spreader Drive Shield, Dark Gray

1шт.

23

87496197

SEAL, GLASS

Rear Screen

1шт.

24

278842A1

SEAL

Condenser/Fuel Cooler

1шт.

25

188029C1

LATCH

Main Drive Shield

2шт.

26

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

10шт.

27

84426641

SHIM

Hex Shaft

4шт.

28

84426643

RETAINER

Hex Shaft Shims

2шт.

29

84427917

SPACER

Spreader Gears

2шт.

30

84426645

CLAMP,Hex Shaft, 22.23mm ID

Hex Shaft

2шт.

31

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

2шт.

32

84426640

SHIM

Hex Shaft

2шт.

33

86505430

CIRCLIP,#87, .668" Dia, E-Type

2шт.
