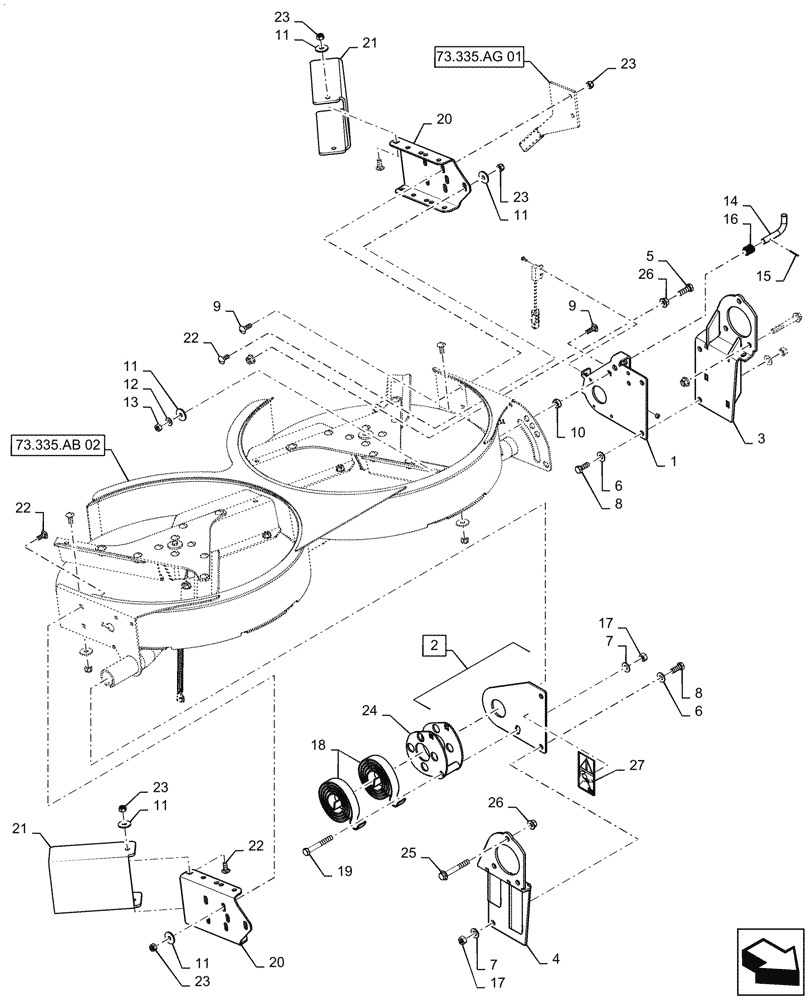

Запчасти Case IH 6088 (73.335.AB[01]) - CHAFF SPREADER (73) - RESIDUE HANDLING

1

84130185

BRACKET

LH

1шт.

2

84177790

BRACKET

RH Chaff Spreader, Incl 27

1шт.

3

87703726

BRACKET

LH Chaff Spreader Mount

1шт.

4

87703732

BRACKET

RH Chaff Spreader Mount

1шт.

5

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

1шт.

6

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

5шт.

8

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

9

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

3шт.

10

86997386

BUSHING,11.15mm ID x 22.23mm OD x 8mm L

LH Bracket

1шт.

11

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

, Serial Range: -Y8G000101

11шт.

11

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

, Start Serial: Y8G000101

9шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

13

100016

NUT,M10 x 1.5, Cl 8

1шт.

14

86611330

PIN,16.56mm OD

Jack

1шт.

15

87913

LOCK PIN,3.17mm OD x 31.75mm L, Slotted

1шт.

16

86611329

SPRING

Lock Pin

1шт.

17

9706685

NUT,M12 x 1.75, Cl 8

5шт.

18

86974376

SPRING

Torsion

2шт.

19

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

1шт.

20

87703483

DEFLECTOR

Chaff

2шт.

21

87044160

BRACKET

Chute

2шт.

22

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

8шт.

23

100037

LOCK NUT,M10 x 1.5, Cl 8

10шт.

24

87107811

PLATE

Dust, Spring Loaded

1шт.

25

87698847

FLANGE BOLT,M12 x 90mm, Cl 10.9

6шт.

26

86512497

FLANGE NUT,M12 x 1.75, Cl 10

8шт.

27

87479318

DECAL

Warning

1шт.
