Запчасти Case IH 6088 (73.230.AP) - STRAW CHOPPER BOTTOM (73) - RESIDUE HANDLING

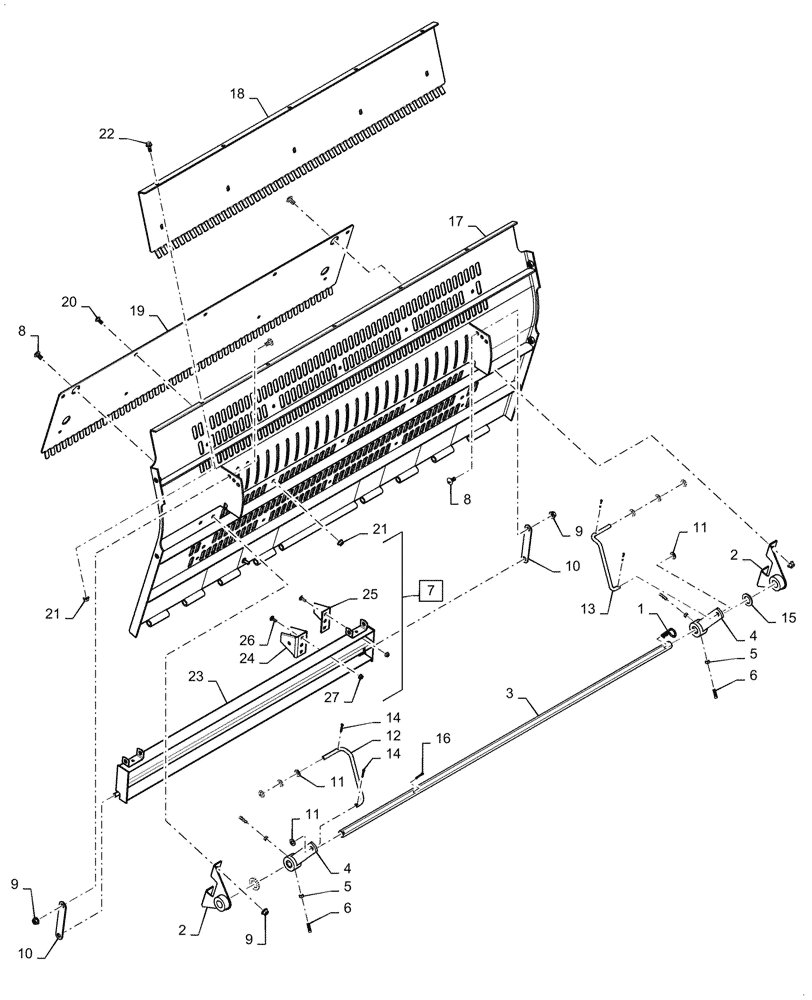

Схема запчастей Case IH 6088 - (73.230.AP) - STRAW CHOPPER BOTTOM (73) - RESIDUE HANDLING
10
5
13
2
2
8
5
14
9
11
27
4
23
19
9
9
20
14
4
15
16
18
10
21
24
22
7
3
17
25
26
1
21
6
6
11
11
12
8

Артикул

Название

Примечание

Количество

1

480523R1

HAIR PIN COTTER

Quick Attach

1шт.

2

87379134

SUPPORT ASSY.

Chopper Adjustment

2шт.

3

391221A1

SHAFT

Chopper Adjustment

1шт.

4

391230A1

PIVOT

Arm, Chopper Adjustment

2шт.

5

425-105

NUT,5/16"-18, G5

4шт.

6

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

4шт.

7

87323280

PACKAGE

Chopper Concave Bar Assy, Incl 23 - 27

1шт.

8

87573369

SERRATED SCREW,Sl Truss, M10 x 20mm, Cl 10.9

6шт.

9

825-51410

FLANGE NUT,M10, Flg Ser

6шт.

10

391218A1

STRAP

Retainer

2шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

8шт.

12

391222A1

ROD

Chopper Adjustment

1шт.

13

395513A1

ROD

Chopper Adjustment, RH

1шт.

14

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

15

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

2шт.

16

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

17

87746115

BOTTOM

Chopper Concave

1шт.

18

84551013

COVER

Concave

1шт.

19

84581120

COVER

Concave

1шт.

20

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

15шт.

21

825-5148

SERRATED NUT,M8, Flg Ser

20шт.

22

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

5шт.

23

87315090

BAR

Chopper Concave

1шт.

24

87315088

BLADE

Concave

12шт.

25

87315089

BLADE

Concave End

1шт.

26

412-412

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 3/4", Gr 2

26шт.

27

231-5344

FLANGE NUT,Flg, 1/4"-20

26шт.

Выбрано товаров: 27
