Запчасти Case IH 6088 (73.230.AJ[01]) - STRAW CHOPPER BODY, FIXED BLADE (73) - RESIDUE HANDLING

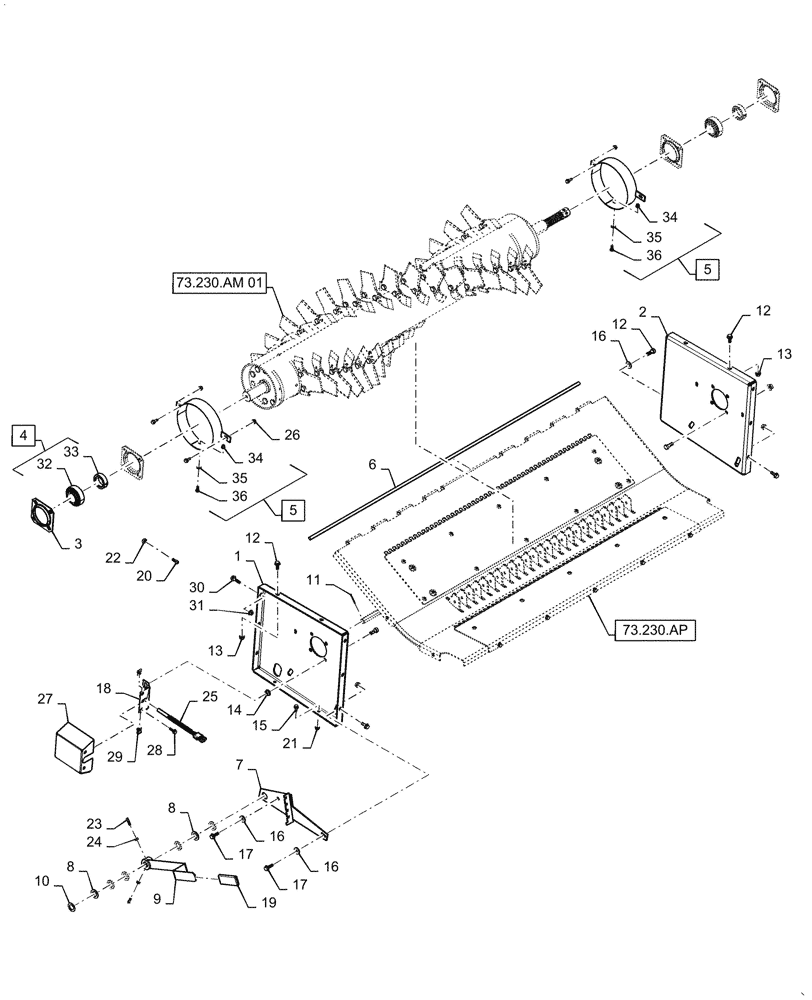

Схема запчастей Case IH 6088 - (73.230.AJ[01]) - STRAW CHOPPER BODY, FIXED BLADE (73) - RESIDUE HANDLING
13
1
4
19
27
35
12
9
18
36
73.230.ap
25
14
31
17
73.230.am 01
26
5
11
22
23
33
16
16
21
7
35
5
12
8
8
34
15
2
28
30
6
16
3
13
10
32
20
17
12
24
34
29
36

Артикул

Название

Примечание

Количество

1

87649793

SUPPORT ASSY.

Chopper, LH

1шт.

2

87649796

SUPPORT ASSY.

Chopper, RH

1шт.

3

86979948

FLANGE

Bearing Housing, 85mm

4шт.

4

455111R91

BALL BEARING,38.113 mm ID x 52.25 mm OD x 24.32, 42.8 mm

, Serial Range: -Y9G001449

2шт.

4

47624986

BALL BEARING

Wide, 45mm, Incl 32, 33, Start Serial: Y9G001450

2шт.

5

87693310

SUPPORT ASSY.

Chopper Drum Wrap, Incl 34 - 36

2шт.

6

182980C1

ROD,11.11mm OD x 1556mm L

2шт.

7

87735186

PLATE

Chopper Adjust Detent

1шт.

8

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

6шт.

9

47818073

HANDLE

Chopper Adjust

1шт.

10

495-81056

WASHER,29/32" x 1 1/2" x 3/64

1шт.

11

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

12

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

16шт.

13

86050279

FLANGE NUT,M10 x 1.5, Cl 10

14шт.

14

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

8шт.

15

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

8шт.

16

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

17

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

18

47943652

BRACKET

Chopper Sensor

1шт.

19

402987A1

GRIP

Chopper Adjust

1шт.

20

393598

SET SCREW,M10 x 20mm, Cl 12.9

1шт.

21

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

22

100016

NUT,M10 x 1.5, Cl 8

1шт.

23

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

2шт.

24

425-105

NUT,5/16"-18, G5

2шт.

25

87650675

SENSOR

RPM, 12mm Hall

1шт.

26

87681210

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

27

47941817

COVER

Chopper Shaft, LH

1шт.

28

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

29

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

30

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

2шт.

31

825-51410

FLANGE NUT,M10, Flg Ser

2шт.

32

47624987

BALL BEARING

45mm

1шт.

33

47624988

Bearing

1шт.

34

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

1шт.

35

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

36

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

Выбрано товаров: 37
