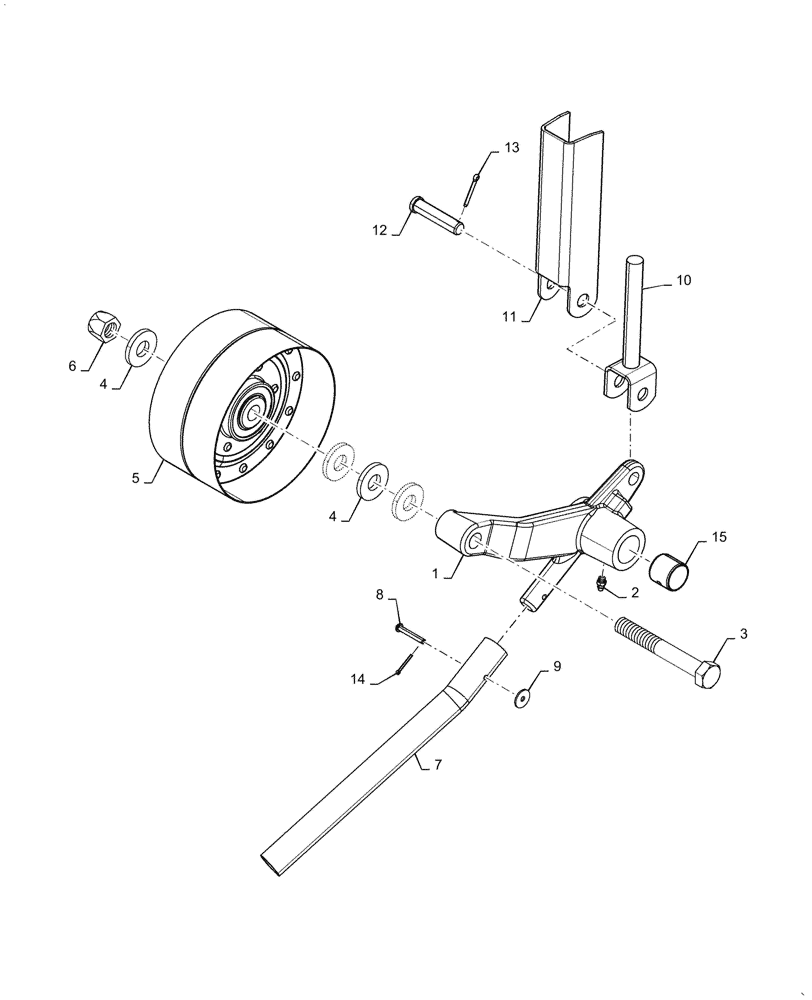

Запчасти Case IH 6088 (73.210.AB[02]) - STRAW CHOPPER DRIVE IDLER LEVER (73) - RESIDUE HANDLING

1

84146254

LEVER ASSY.

Chopper Drive Idler, Incl 15

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

1шт.

3

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

1шт.

4

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

4шт.

5

84146249

PULLEY,88.9mm W x 165.1mm OD

Idler

1шт.

6

85700693

NUT,5/8" - 11, Gr C

1шт.

7

84146241

TUBE,20.90 mm ID x 26.97 mm OD x 300, 50 mm L

1шт.

8

127-218

CLEVIS PIN,4.78mm OD x 30.94mm L

1шт.

9

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

1шт.

10

1315256C1

ROD

Tension Slider

1шт.

11

84146244

CHANNEL

Idler Arm Lock

1шт.

12

86837477

CLEVIS PIN,12.7mm OD x 57.15mm L

1шт.

13

80755

COTTER PIN,1/8" OD x 1" L

1шт.

14

9512667

COTTER PIN,M2 x 20mm OAL

1шт.

15

559154R1

BUSHING,25.45mm ID x 28.6mm OD x 25.4mm L

1шт.
